Access Equipment
Jibbi Telescopic Tracked Boom Lift 1270
Price
*
- 2m horizontal outreach
- Retractable undercarriage
- Ideal for all types of terrain
- Operate on 22-degree slopes

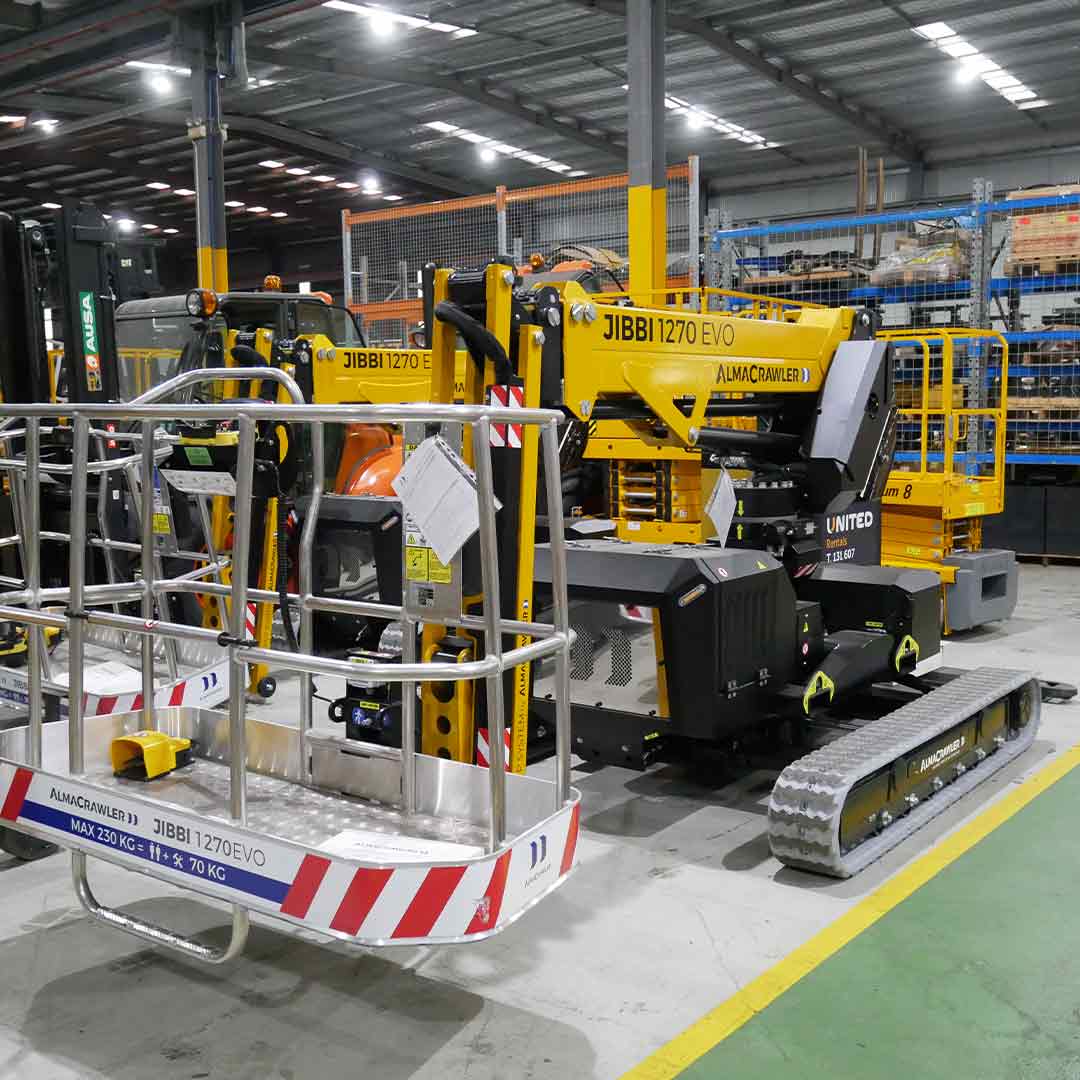

The Jibbi 1270 EVO is a telescopic tracked boom lift capable of operating on challenging terrain and slopes of up to 22 degrees. The 1270 EVO features a horizontal outreach of 8.2 metres and a lateral outreach of 7 metres, ideal for accessing hard-to-reach areas. Thanks to its variable track gauge, the Jibbi can retract its undercarriage from 1.95 to 1.15 metres, allowing the boom lift to access tight workspaces and can be easily transported.
Read More
The Jibbi boasts a 19.2 horsepower, 3-cylinder diesel engine, providing high performance when you need it most while reducing emissions and impact on the environment. A wide range of features come standard on the Jibbi, including an integrated drive system with joystick controls, forklift tyne pockets for easy lifting, an undercarriage safe-lock system, and a 3-inch colour display to use during operation.
The basket of the Jibbi 1270 EVO is completely detachable and has a lift capacity of 230kg, suitable for two operators. The Jibbi is ideal for many applications including construction, signage, electrical, painting, agriculture, facility maintenance and much more.
Read Less
- Height (Lift / Working) (m): 12.20 m
- Lift Capacity (kg): 230 kg
- Power: Diesel
- Workplace: Outside
Specifications
Jibbi Telescopic Tracked Boom Lift 1270 EVO
| 1270 EVO | |
| Max working height | 12.20 m |
| Max height basket floor | 10.20 m |
| Moving height | 8.0 m |
| Max outreach (load 80 kg) | 8.20 m |
| Max outreach (load 230 kg) | 6.50 m |
| Rotation angle | + / – 110 ° |
| Basket size | 1.80 x 0.70 m |
| Basket rotation angle | + / – 70 ° |
| Max basket capacity | 230 kg |
| Length in stowed position (with detached basket) | 3.80 (3.0) m |
| Min width in stowed position | 1.15 m |
| Max working width | 1.95 m |
| Min height in stowed position | 1.99 m |
| Longitudinal levelling | + / – 15 ° |
| Lateral levelling | + / – 15 ° |
| Max gradeability | 25 ° |
| Max side gradeability | 25 ° |
| Drive speed (fast) | 2.5 km/h |
| Security speed | 0.3 km/h |
| Traffic load | 4.82 kN/m2 |
| Total weight | 3600 kg |
| Power | 14 kW – 19.2 Hp |
| Standard Equipment |
| High performance 19.2hp 3-cylinder diesel engine |
| Retractable undercarriage |
| Integrated drive system with joystick controls |
| Automatic Proactive & Dynamic Levelling |
| Forklift tyne pockets for easy lifting |
| Undercarriage safe-lock system – Patent Pending |
| Compact dimensions |
| Removable basket |
| 3-inch colour display on operator control |
| Ultrasonic anti-collision system (anti-crush) |
| Dynamic Work Performance (DWP) – Patent Pending |
| Options & Accessories |
| Non-marking tracks |
| Winch kit 200 kg |
| Radio remote control |
| Arctic lubricant for cold climate |
| Electric pump 220V – 2.2kW / 50 Hz |
