Jibbi Telescopic Tracked Boom Lift 1250
Price
*
- IAPA 2019 – Product of the Year Award
- Ideal for all types of terrain
- Safety operate on steep slopes
- Diesel or electric powered

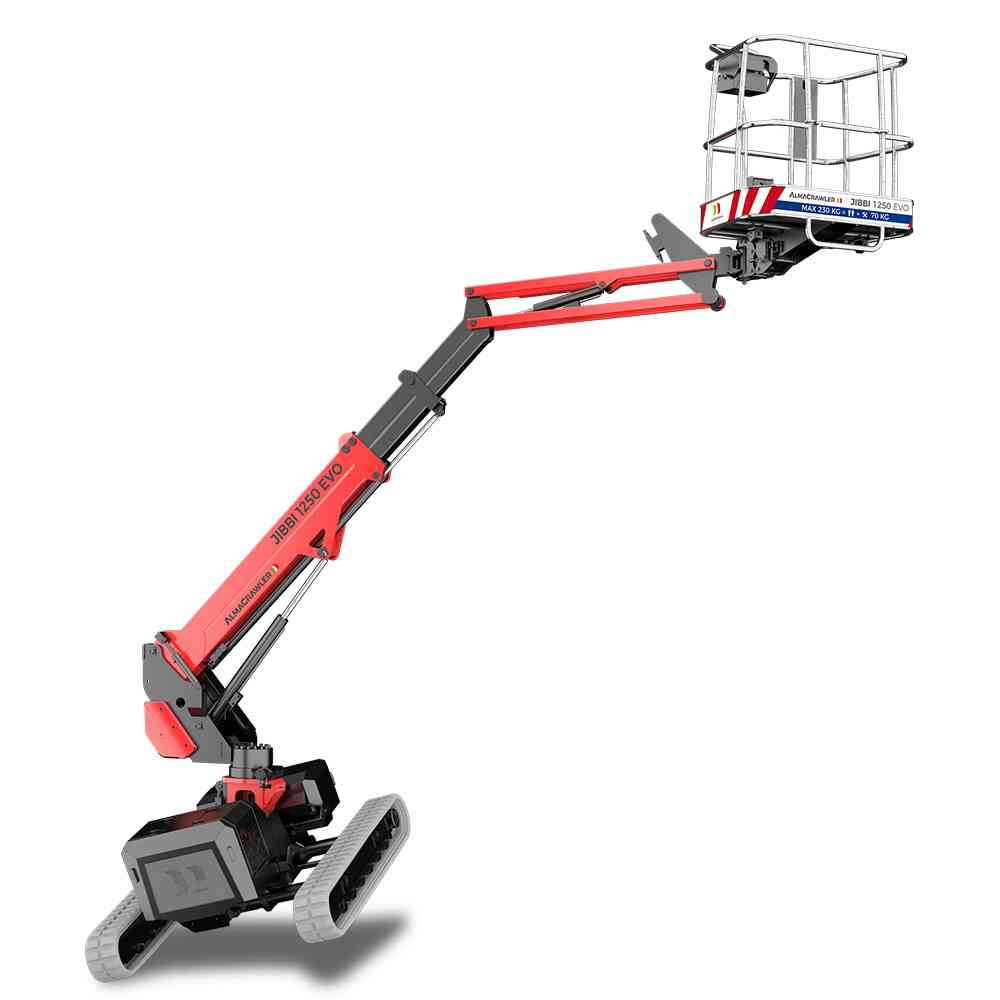

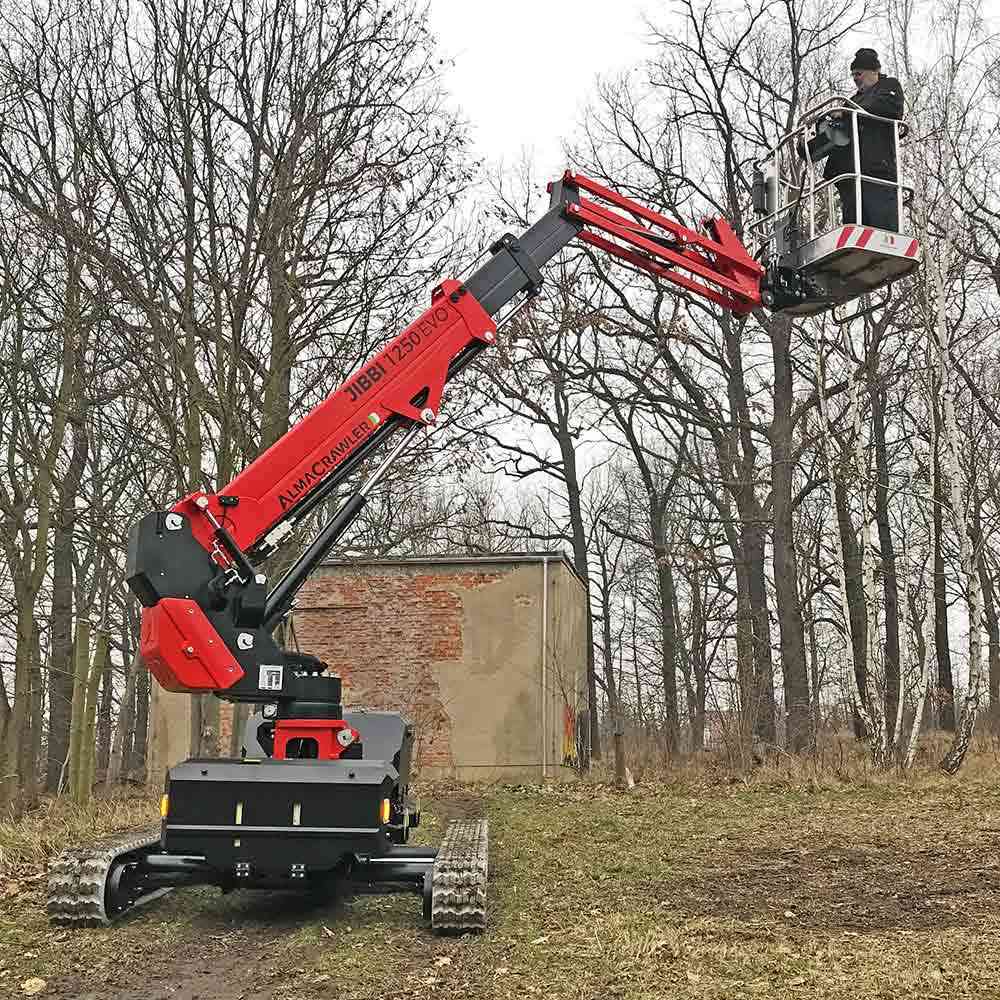

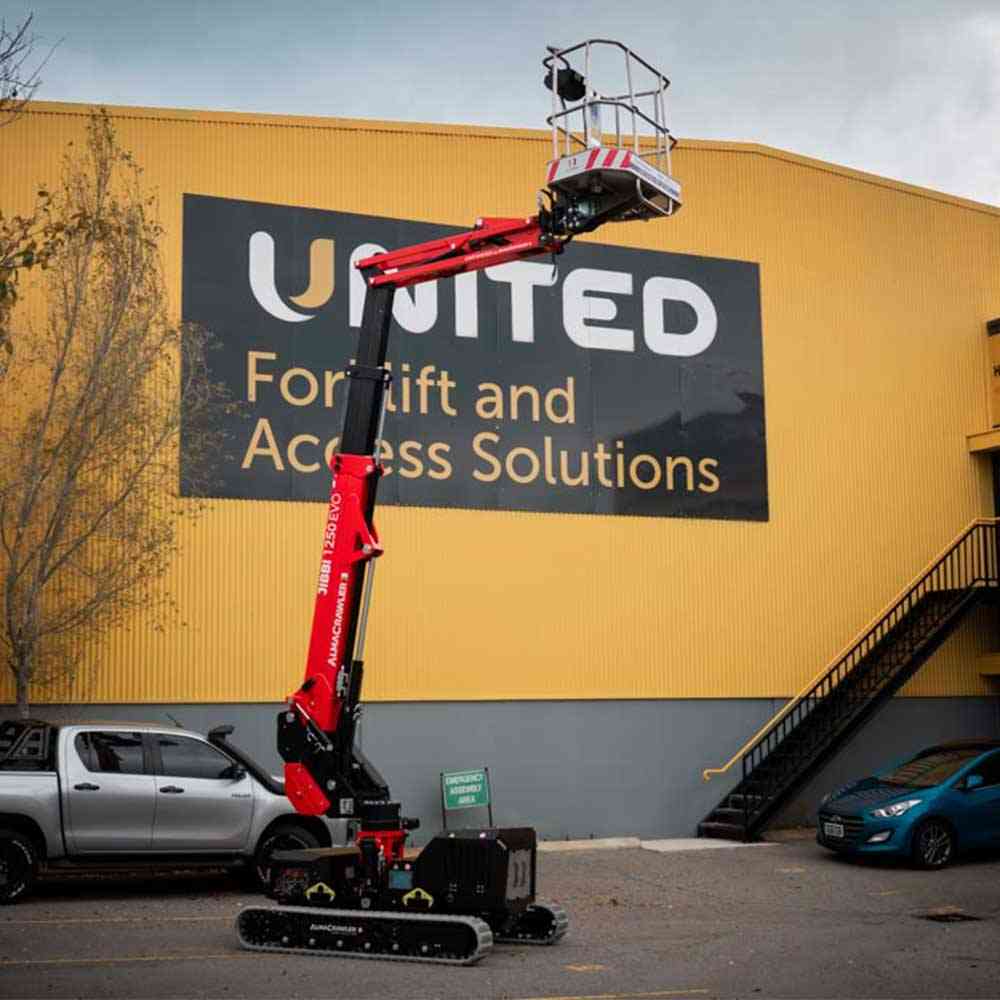

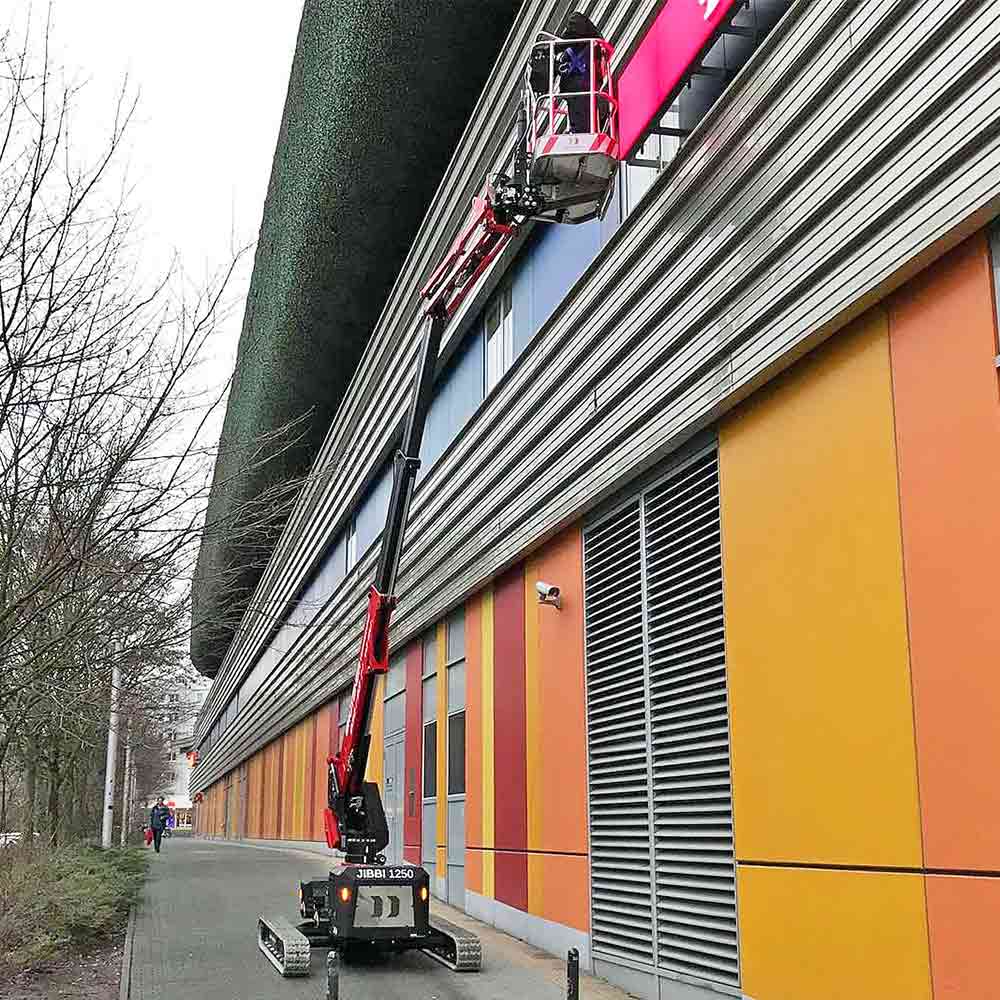

The Jibbi 1250 is a telescopic tracked boom lift that can operate on challenging terrain and automatically level on steep slopes. The Jibbi 1250 offers a platform height of 10.2 metres and a 230kg lift capacity, ideal for two operators.
The Jibbi 1250 is available in two models, the 1250 EVO is a diesel-powered model, boasting a high performance 19.2hp 3-cylinder diesel engine which provides substantial power with a 2.5 km/h drive speed and a total weight of 2850kg. The 1250 ELC is an electric powered model, equipped with an efficient 420Ah-48V lead acid battery with a 2.0 km/h drive speed and a total weight of 3600kg.
Read More
The versatile features include a retractable undercarriage and a detachable basket allowing the Jibbi to be easily transportable and capable of accessing tight workspaces. The Jibbi’s controller comes with an integrated drive system with joystick controls and features an inbuilt 4.3-inch colour display to enhance operator comfort. The Jibbi 1250 is ideal for many applications including construction, signage, electrical, painting, agriculture, facility maintenance and much more.
Read Less
- Height (Lift / Working) (m): 12.20 m
- Lift Capacity (kg): 230 kg
- Power: Diesel, Electric
- Workplace: Both
Specifications
Jibbi Telescopic Tracked Boom Lift 1250
| 1250 EVO | 1250 ELC | |
| Working height | 12.20 m | 12.20 m |
| Platform height | 10.20 m | 10.20 m |
| Moving height | 8.0 m | 8.0 m |
| Horizontal outreach (load 80 kg) | 7.0 m | 7.0 m |
| Horizontal outreach (load 230 kg) | 5.4 m | 5.4 m |
| Rotation angle | + / – 110 ° | + / – 110 ° |
| Basket size | 1.4 x 0.70 m | 1.4 x 0.70 m |
| Basket rotation angle | + / – 70 ° | + / – 70 ° |
| Max basket capacity | 230 kg | 230 kg |
| Length in stowed position (with detached basket) | 3.70 (3.0) m | 3.70 (3.0) m |
| Minimum width in stowed position | 1.15 m | 1.15 m |
| Max working width | 1.95 m | 1.95 m |
| Minimum height in stowed position | 1.98 m | 1.98 m |
| Longitudinal levelling | + / – 15 ° | + / – 15 ° |
| Lateral levelling | + / – 15 ° | + / – 15 ° |
| Max gradeability | 25 ° | 25 ° |
| Max side gradeability | 25 ° | 25 ° |
| Drive speed (fast) | 2.5 km / h | 2.0 km / h |
| Security speed | 0.3 km / h | 0.3 km / h |
| Traffic load | 3.86 kN / m2 | 4.82 kN / m2 |
| Total weight | 2850 kg | 3600 kg |
| Power | 3TNM68 – AS Yanmar engine (diesel) 14 kW – 19.2 Hp | Lead acid battery pack 420Ah-48V |
| Standard Equipment |
| 220° slewing ring rotation |
| Basket rotation kit + / – 70 ° |
| Integrated Drive System (using single joystick) |
| Retractable undercarriage |
| Removable basket |
| Integrated drive system with joystick controls |
| 3 Inch colour display on operator control |
| Automatic Proactive & Dynamic levelling |
| Ultrasonic anti-collision system (anti-crush) |
| Forklift tyne pockets for easy lifting |
| Dynamic Work Performance (DWP) – Patent Pending |
| Undercarriage Safe-Lock System – Patent Pending |
| Options & Accessories |
| Electric pump 220V – 2.2kW / 50Hz (ELC only) |
| Non-marking tracks |
| Radio remote control |
| Arctic lubricant for cold climate |
