Haulotte Electric Scissor Lift Compact 8-10N from United Equipment Australia
haul

Access Equipment

SKU: N/A Categories: , ,

Haulotte Electric Scissor Lift Compact 8-10N

Price

*

  • Drive at full height
  • 25% gradeability for operating on slopes
  • Narrow width of 80cm
  • Extendable platform



The Haulotte 8 and 10N are very compact, electric scissor lifts that are designed with a durable and reliable frame to handle your access needs. Thanks to their narrow width of 80cm, transporting and operating indoors and outdoors is simple.

Read More

The powerful AC drive motors provide outstanding performance and manoeuvrability, and thanks to the 25% gradeability, these scissor lifts can drive up ramps or slopes with ease. These scissor lifts offer a lift capacity from 250kg to 350kg and a working height of 8 to 10 metres, plus they have the added benefit of being able to drive at full height.

Another advantage is the extendable platform that allows for extra workspace, and with the extensive range of smart inbuilt features, these scissor lifts are extremely productive to help you get the job done.

The Haulotte 8 and 10N compact scissor lifts are ideal for a range of industries, including construction, maintenance, production, transport and logistics, and retail and warehousing and much more.

Read Less

  • Lift Capacity (kg): 250 kg, 350 kg
  • Power: Electric
  • purchase_options: Hire, New
  • Workplace: Both
Add to Quote
Operator Comfort
Smooth Movements

Manoeuvring the scissor lifts has been made easy with simple controls and smooth movements.

Productivity and performance
Driveable Working Height

The compact 10, 12 and 14 scissor lifts are fully capable of driving while at the maximum working height.

Deep-cycle Batteries

Accomplish a day’s work without having to worry about recharging the battery.

Battery Indicator

A battery indicator is available on the control box for peace of mind when operating.

Safety
Pothole Guards

Pothole guards will help to prevent potential accidents that could lead to injury, but they also act as an extra layer of protection against any damages that may be caused from collisions.

Automatic Protection

The emergency control button can be used to stop the lift instantly, even if it is moving.

Secure Access

The non-slip step allows for safe and quick access into the scissor lift.

Servicing and maintenance
On-board Diagnostic Tool

Thanks to the Activ’screen, you will be able to view all crucial information of the scissor lift on an LCD display.

Specifications

Haulotte Electric Scissor Lift Compact 8-10N

  Compact 8 Compact 10N
Working height 8.0 m 9.8 m
Platform height 6.2 m 7.8 m
Maximum drive height 6.2 m 7.8 m
Lift capacity – inside 350 kg (2 pers.) 250 kg (2 pers.)
Lift capacity – outside 350 kg (1 pers.) N/A
Lift capacity on the extension deck 120 kg 120 kg
Platform length – outside 2.40 m 2.40 m
Platform length – extended 3.32 m 3.32 m
Length – extension 0.92 m 0.92 m
Platform width – outside 0.80 m 0.80 m
Height – stowed 2.23 m 2.35 m
Guardrails lowered 1.82 m 1.94 m
Overall width 0.81 m 0.81 m
Length 2.50 m 2.50 m
Wheelbase 1.86 m 1.86 m
Ground clearance – center 12.50 cm 12.50 cm
Ground clearance – deployed potholes 2.0 cm 2.0 cm
Drive speed 0.70 / 1.50 / 4.20 km/h 0.70 / 1.50 / 4.20 km/h
Gradeability 25 % 25 %
Tilt (longitudinal / lateral) 3.5 ° 1.5 °
Turning radius – outside 2.05 m 2.05 m
Non-marking tyres 2.05 m 2.05 m
Batteries 24 V – 225 Ah (C20) 24 V – 225 Ah (C20)
Hydraulic system capacity 10 l 10 l
Weight 2120 kg 2160 kg



Standard Equipment
Haulotte Activ’Energy Management: Smart CAN charger
27A multi voltage charger
Battery access with swing out tray
Battery level indicator
Haulotte Activ’Screen (battery charge information, hour meter, service alerts & failures in code or in text…)
Lateral & longitudinal forklift pockets
Foldable guardrails
Front platform extension
AC motors
Mobile upper control box
2 drive speeds selector
Manual emergency descent
Mobile pothole guards
MyHaulotte multi-services portal access
2 front steering wheels, 2 rear drive wheels
Solid non marking tires
Motion alarm
Electric brake release system
Drop bar entry



Options & Accessories
Haulotte Activ’Energy Management: automatic or manual battery water filling systems
AGM maintenance-free batteries
Secondary guarding system
Telematics solutions
Pipe cradle
Swing gate entry
Additional protection of upper & lower control box
Basket plug (110 / 230 V)
Working light
Flashing light (single, dual or 360°)
Biodegradable hydraulic oil
Cold weather hydraulic oil

Videos

Haulotte Compact Scissor Lifts

Downloads

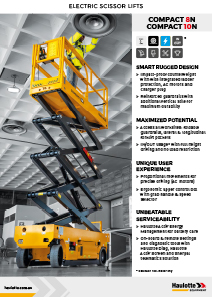

Haulotte Electric Scissor Lift Compact 8-10N Brochure
