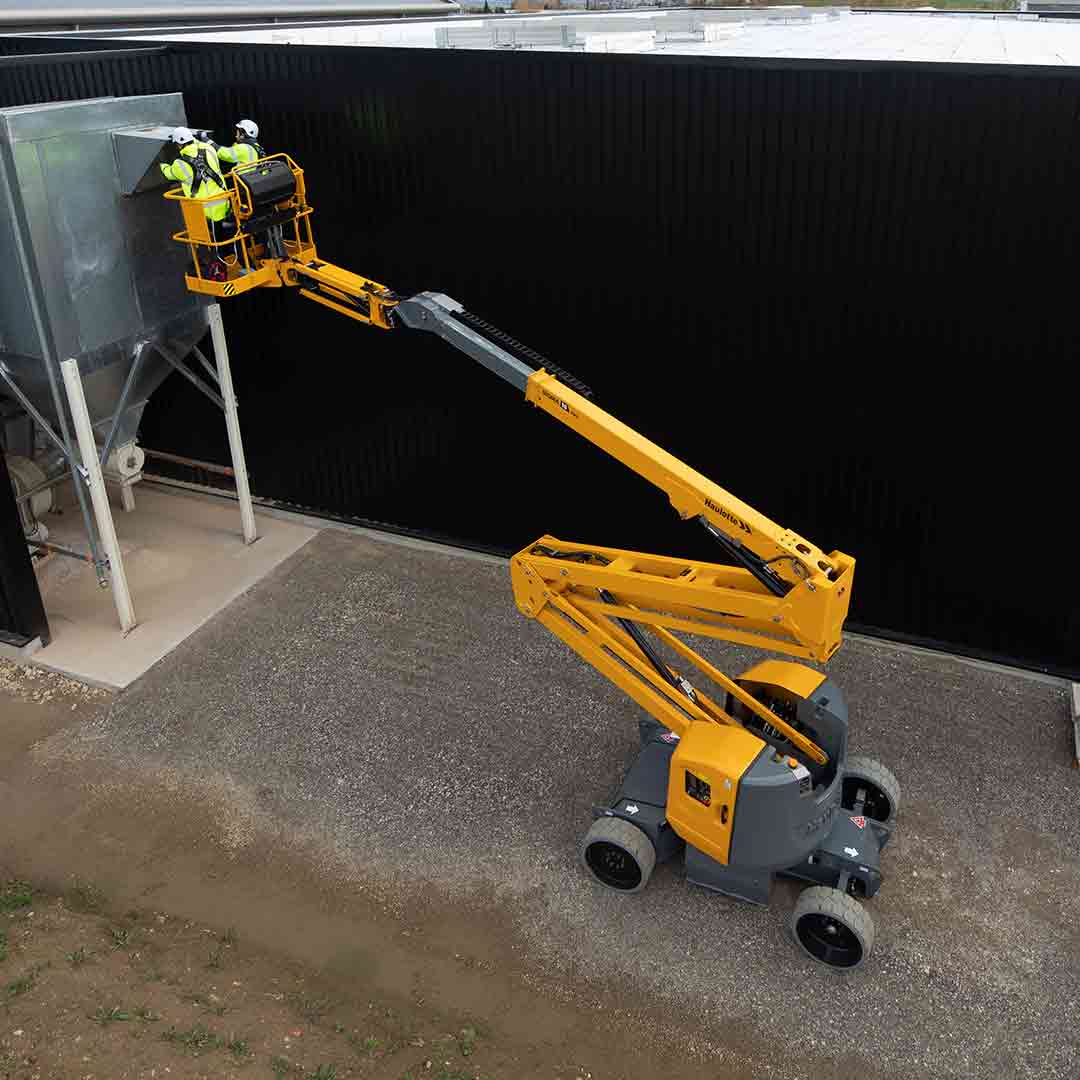

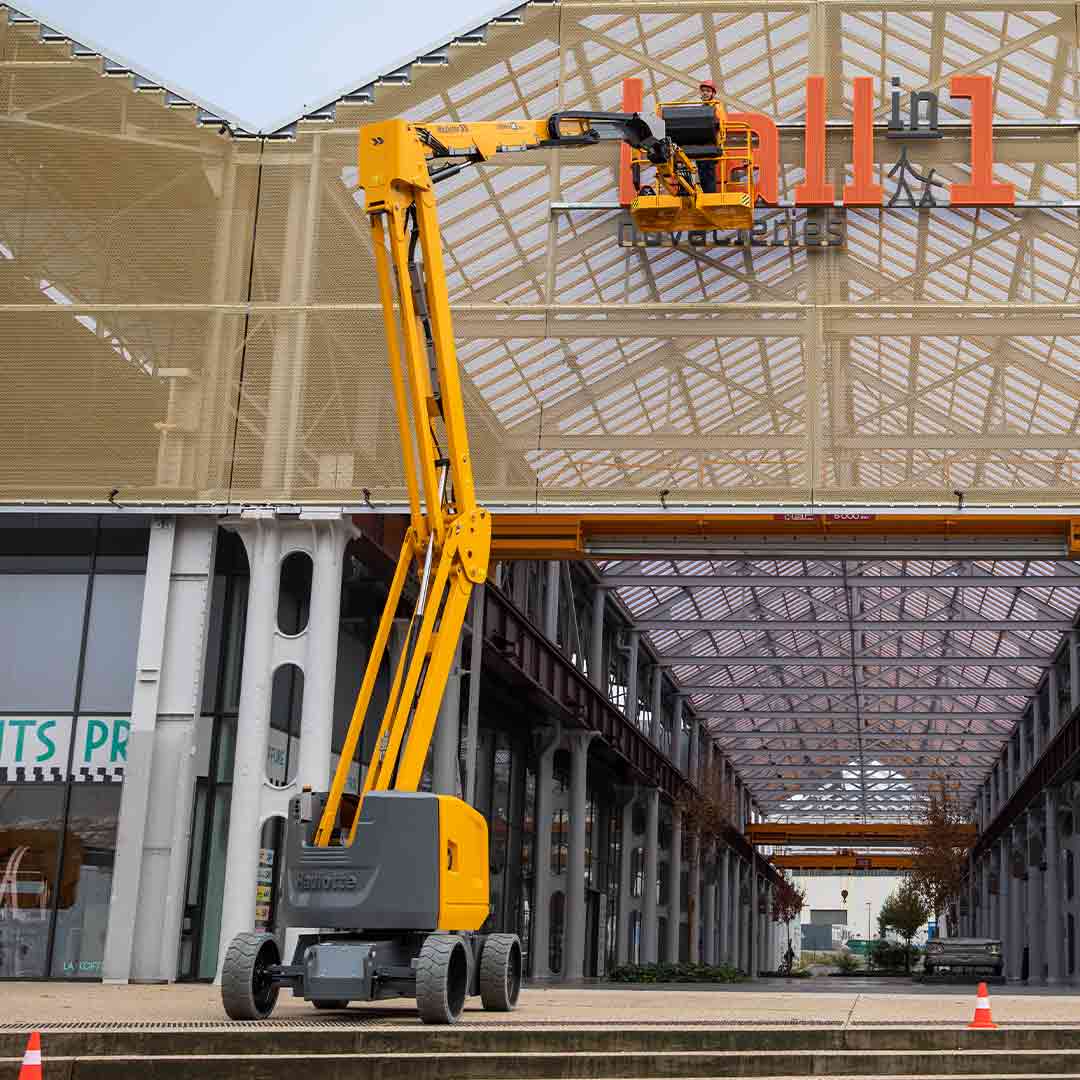

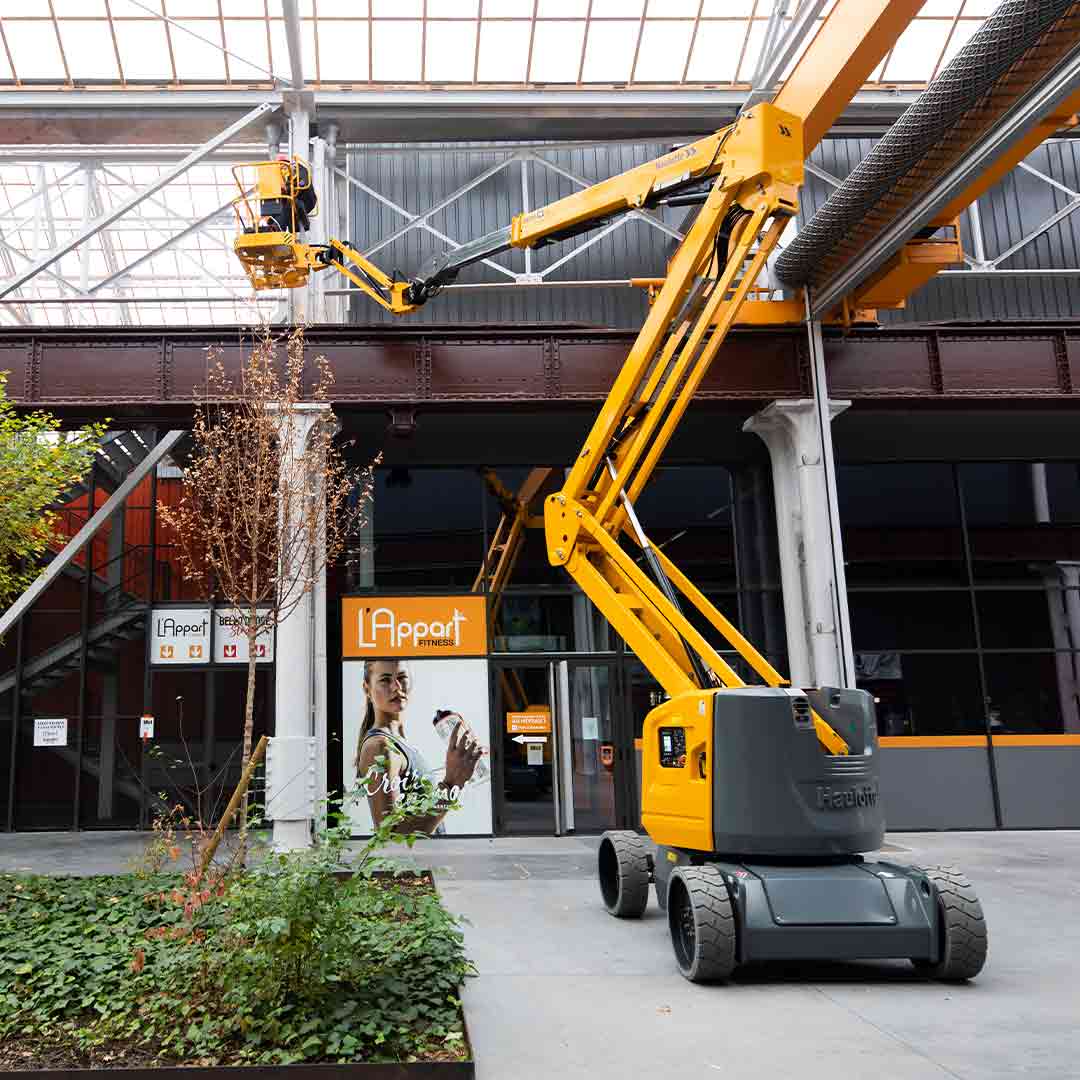

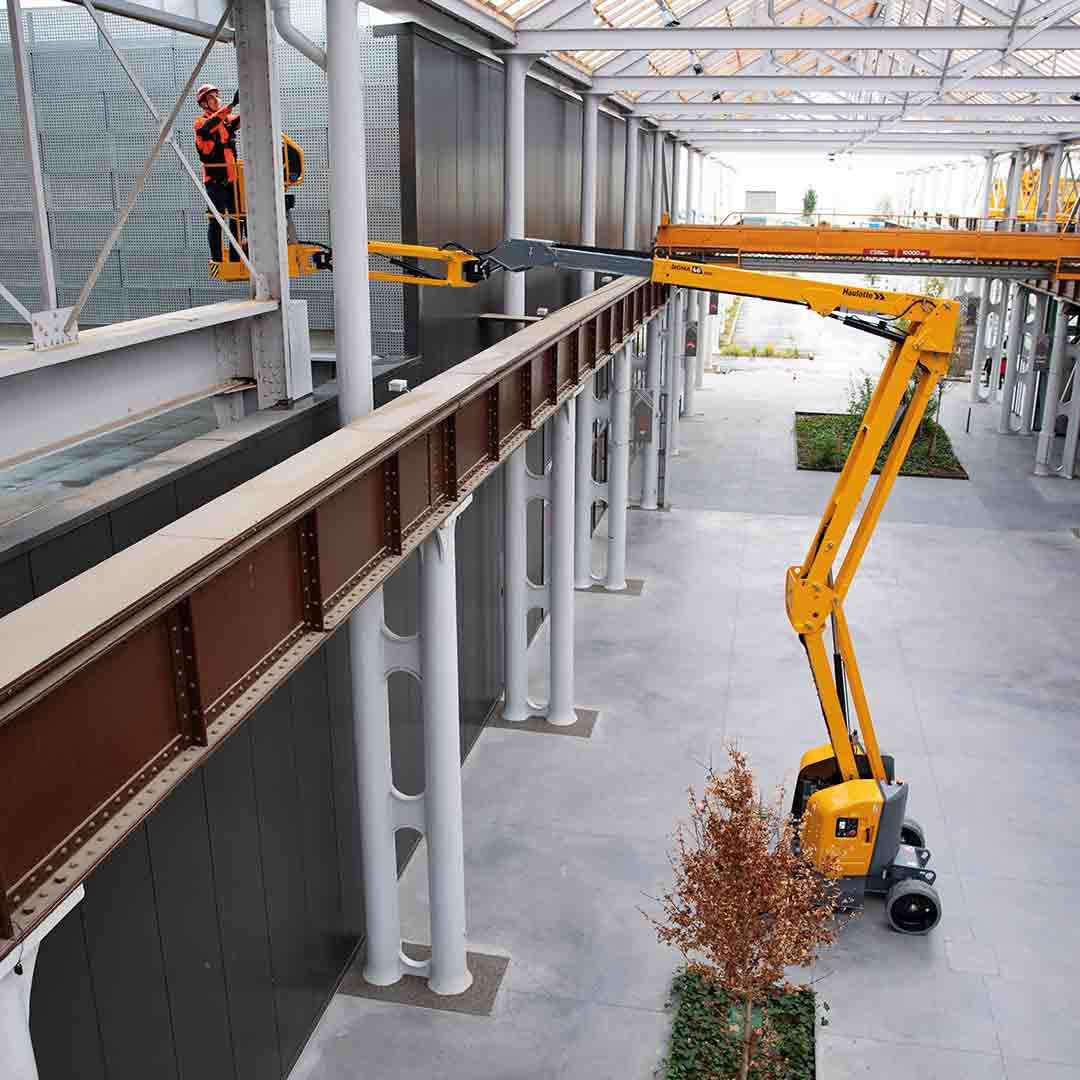

Haulotte Electric Articulating Boom Lift SIGMA 16
Price
*
- Large working envelope
- Zero tailswing and tight turning circle
- Proportional and simultaneous movements
- For use indoors and outdoors
The SIGMA 16 is an electric articulating boom lift that is versatile and suitable for a range of tasks, both indoor and outdoor. With a large working envelope, this machine easily overcomes any obstacle in its way. The super-fast lift and simultaneous movements offer maximum efficiency while the proportional controls make sure the approach is smooth. Additionally, the 10 LED spotlights perfectly light up the controls and area around the machine for better safety and visibility for the operator and surrounding pedestrians.
Read More
The SIGMA 16 is available in two models, the SIGMA 16 standard and the SIGMA 16 PRO. The difference between the two is the PRO model can horizontally rotate its jib by up to 55 degrees. And thanks to its zero Tailswing, there is no risk of the boom damaging surrounding areas.
This electric boom lift is designed for safety, with full perimeter anti-fall protection, active brake locks that unlock only when the lift is in a stable position at zero degrees, brake lights to indicate when brakes are applied at zero degrees or inverted positions, braking alarms, belts with automatic tension control, and much more.
Rugged and reliable, this boom lift reflects Haulotte’s highest quality of standards. Suitable for a range of industries, including maintenance, finishing, electrical, events and more.
Read Less
- Height (Lift / Working) (m): 16.10 m
- Lift Capacity (kg): 230 kg
- Power: Electric
- Workplace: Both
Specifications
Haulotte Electric Articulating Boom Lift SIGMA 16
| SIGMA 16 | SIGMA 16 PRO | |
| Working height | 16.1 m | 15.7 m |
| Platform height | 14.1 m | 13.7 m |
| Horizontal outreach | 8.35 m | 8.05 m |
| Up and over clearance | 7.40 m | 7.40 m |
| Lift capacity | 230 kg | 230 kg |
| Length | 6.60 m | 6.65 m |
| Width | 1.75 m | 1.75 m |
| Wheelbase | 2.0 m | 2.0 m |
| Ground clearance | 17.0 cm | 17.0 cm |
| Platform size | 1.20 x 0.80 m | 1.20 x 0.80 m |
| Height – stowed | 2.0 m | 2.0 m |
| Length – storage / transport | 6.60 m | 6.65 m |
| Tail swing | 0 cm | 0 cm |
| Vertical jib rotation | – 65 ° / + 65 ° | – 65 ° / + 65 ° |
| Horizontal jib rotation | N/A | – 55 ° / + 55 ° |
| Platform rotation | – 85 ° / + 85 ° | – 85° / + 85° |
| Turntable rotation | 355 ° | 355 ° |
| Tilt | 4° / 4° | 4° / 4° |
| Proportional drive speed | 5 km / h | 5 km / h |
| Maximum wind speed rating | 45 km / h | 45 km /h |
| Standard Features |
| Jib with horizontal rotation (PRO model) |
| 2-wheel drive / 2-wheel steer |
| AC motors |
| 48V battery pack |
| Haulotte Activ’Energy Management: smart battery management system |
| Haulotte Activ’Shield Bar 2.0 |
| Haulotte Activ’Lighting System for safe loading in low visibility conditions* |
| Haulotte Activ’Screen: embedded diagnostic system, with colour screen |
| Upper control box cover* |
| Tool tray* |
| 1.2 m wide basket |
| Drop bar entry |
| Large solid, non-marking industrial tyres |
| AC power to basket |
| Lockable battery circuit breaker |
| Motion alarm |
| Options & Accessories |
| Side swing door + front drop bar |
| 1.5 m basket |
| Cones holder |
| Fluorescent tube holder |
| Basket plug (110 / 230 V) |
| Cold countries hydraulic oil |
| Haulotte Activ’Energy Management: manual or automatic battery water-filling system |
| USB plug |
| Telematics solutions |
*Optional on SIGMA 16 model
