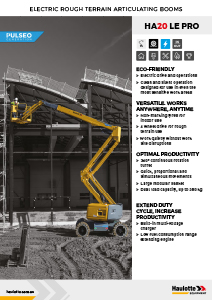

Haulotte Electric Articulating Boom Lift HA20 LE PRO
Price
*
- Electric drive and operation
- Eco-friendly and silent
- Non-marking tyres for indoor use
- 4-wheel drive for rough terrain use
The HA20 LE PRO is one of the first of the PULSEO product range, an all-terrain electric articulating boom lift that has a platform height of 18.76 metres and a horizontal outreach of 11.91 metres. The HA20 LE PRO has amazing driveability with independent 4-wheel drive with each wheel producing powerful torque and ensuring excellent traction distribution.
Read More
Thanks to its electric architecture and unparalleled rough terrain capacities, the HA20 LE PRO is perfectly suited to indoor or outdoor projects, guaranteeing clean, quiet operation in any setting.
The HA20 LE PRO has a low tail swing and easy handling allowing for operation in confined spaces and can be used on almost any floor with low ground pressure. Working at heights in shopping centres, airports, concert halls and other public places is no longer a challenge.
Read Less
- Height (Lift / Working) (m): 20.76 m
- Power: Electric
- Workplace: Both
Specifications
Haulotte Electric Articulating Boom Lift HA20 LE PRO
| HA20 LE PRO | |
| Working height | 20.76 m |
| Platform height | 18.76 m |
| Horizontal outreach | 11.91 m |
| Up and over clearance | 8.52 m |
| Lift capacity | 250 kg – option 350 kg |
| Platform size | 1.83 x 0.80 m |
| Length | 8.54 m |
| Width | 2.41 m |
| Height – stowed | 2.50 m |
| Length – storage / transport | 6.19 m |
| Height – storage / transport | 3.0 m |
| Platform rotation | 180 ° (+ 90° / – 90°) |
| Turntable rotation | 360 ° continuous |
| Tailswing | 41 cm |
| Wheelbase | 2.5 cm |
| Ground clearance | 46 cm |
| Tilt | 4 ° |
| Proportional drive speed | 0.7 – 5 km/h |
| Gradeability | 45 % |
| Tyres – solid rough terrain | 1025 x 365 mm |
| Turning radius – outside | 3.70 m |
| Weight | 9785 kg |
| Batteries | 12 x 6 V – 435 Ah (C20) |
| Range extender | Kubota, 18.5kW |
| Standard Equipment |
| Haulotte Activ’Lighting System |
| Haulotte Activ’Shield Bar 2.0 |
| Haulotte Activ’Screen |
| Universal telematics plug |
| 72 V battery pack (435 Ah) |
| Centralized battery watering system |
| Battery charge indicator at upper and lower control boxes |
| Multi-voltage charger (110 – 230 V) and integrated range extender (18.5 kW) |
| Haulotte Activ’Energy Management: smart battery management system |
| 4-wheel drive: brushless AC motors at each wheel |
| 4-wheel steer |
| Front oscillating axle |
| Smooth and proportional movements |
| Upper control box cover |
| Tool tray |
| Large modular platform 2.44 x 0.91 m with lateral swing door entry gate |
| AC power to platform (110 / 230 V) (option in AUS / NZ) |
| Swing out engine tray |
| Sound and light alarm for tilt and load |
| Travel alarm |
| Rotating beacon |
| Options & Accessories |
| Non-marking tyres |
| Dual load capacity 250 / 350 kg (standard in AUS / NZ) |
| Haulotte Activ’Shield Bar 2.0 (standard in AUS / NZ) |
| Large platform 2.44 x 0.91 m (standard in AUS / NZ) |
| Side swing door entry gate (standard in AUS / NZ) |
| Pipe rack kit |
| Glazier kit |
| Power to platform 110 / 230 V (female plug in the basket) |
| Biodegradable hydraulic oil |
| Cold weather kit |
| Anti-overspeed kit |
| Air-line to platform |
| Flashing light |
