Specifications

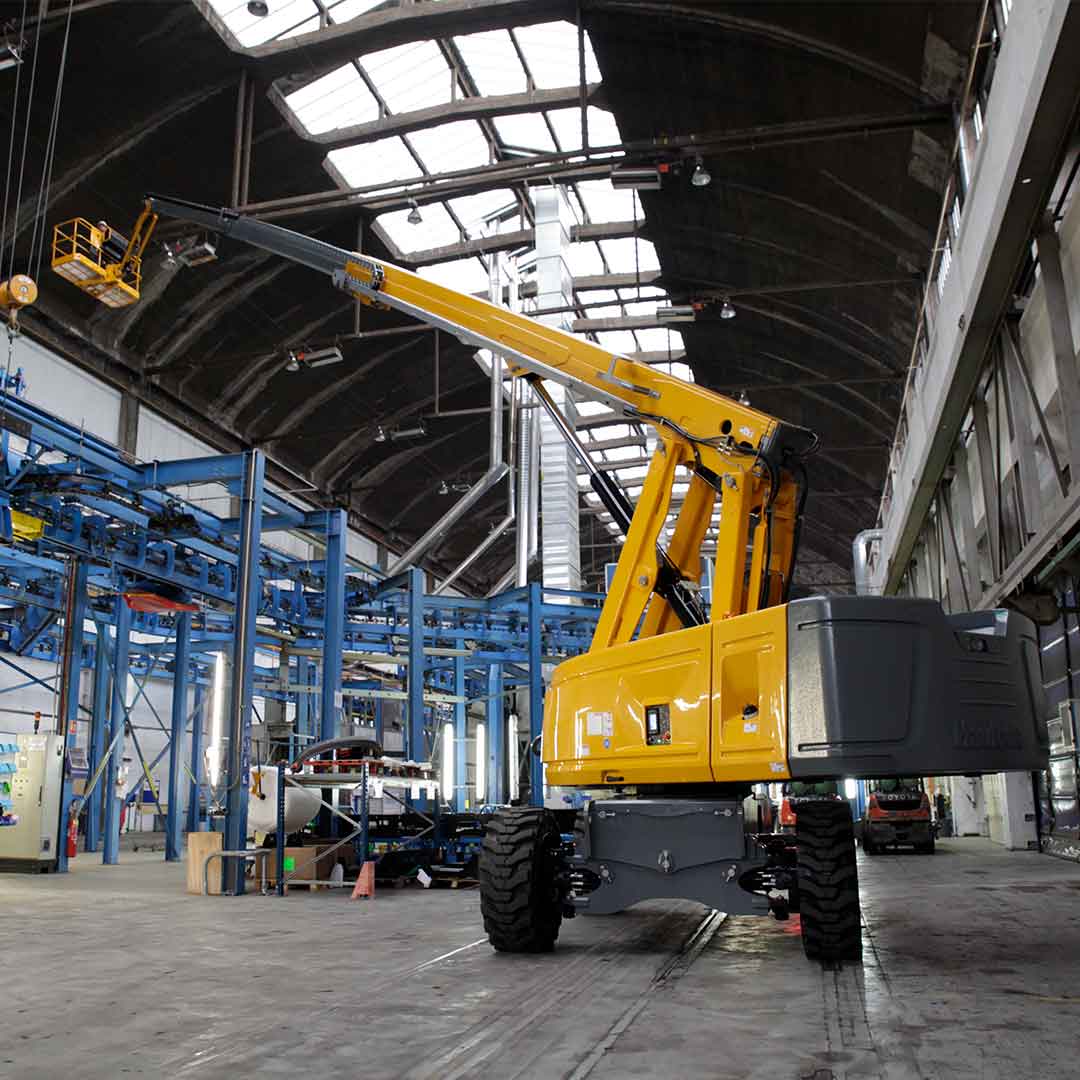

Haulotte Telescopic Boom Lift HT28 RTJ PRO
HT28 RTJ PRO | |
Working height | 27.90 m |
Platform height | 25.90 m |
Horizontal outreach | 23.85 m |
Below ground reach | 3.0 m |
Lift capacity | 230 kg – option 350 kg |
Platform size | 2.44 x 0.91 m |
Length – stowed | 13.05 m |
Length storage / transport | 9.80 m |
Overall width | 2.48 m |
Height – stowed | 2.85 m |
Height – storage / transport | 2.98 m |
Vertical jib rotation | 133 ° |
Jib length | 1.83 m |
Turntable rotation | 360 ° continuous |
Tailswing | 150 cm |
Wheelbase | 2.80 m |
Ground clearance | 48 cm |
Tilt | 4 ° |
Drive speed | 0.5 – 5km/h |
Gradeability | 45 % |
Turning radius – outside | 4.35 m |
Engine | Kubota, 53 kW, Turbo |
Weight | 18100 kg |
Standard Equipment |
Haulotte Stop Emission System |
Haulotte Activ’Screen: on-board diagnostic |
Haulotte Activ’Shield Bar 2.0 |
Haulotte Activ’Lighting System |
Universal telematics plug |
4-wheel drive and 4-wheel steer |
Oscillating axle |
Smooth and proportional movements |
Automatic wheel differential lock |
Upper control box protection cover and tool tray in ultra-rugged composite |
Large modular platform 2.44 x 0.91 m |
Lateral swing door entry gate |
Basket rotation 180° (+ 90) |
Swing out engine tray for easy maintenance access |
Sound and light alarm for tilt and load |
Motion alarm and rotating beacon light alarms |
Dual load capacity 230 – 350 kg |
Hydraulic generator 6.5 kVa |
Options & Accessories |
Non-marking tyres |
Dual load capacity 230 – 350 kg |
60 km/h wind speed |
110 / 230 V power to platform |
½ in airline to platform |
Lateral swing door entry gate |
Work light package |
Hydraulic oil cooler |
Cold weather package / arctic weather kit |
Pipe rack kit |
Glazier kit |
Motion flashing warning light |
Battery circuit breaker |
