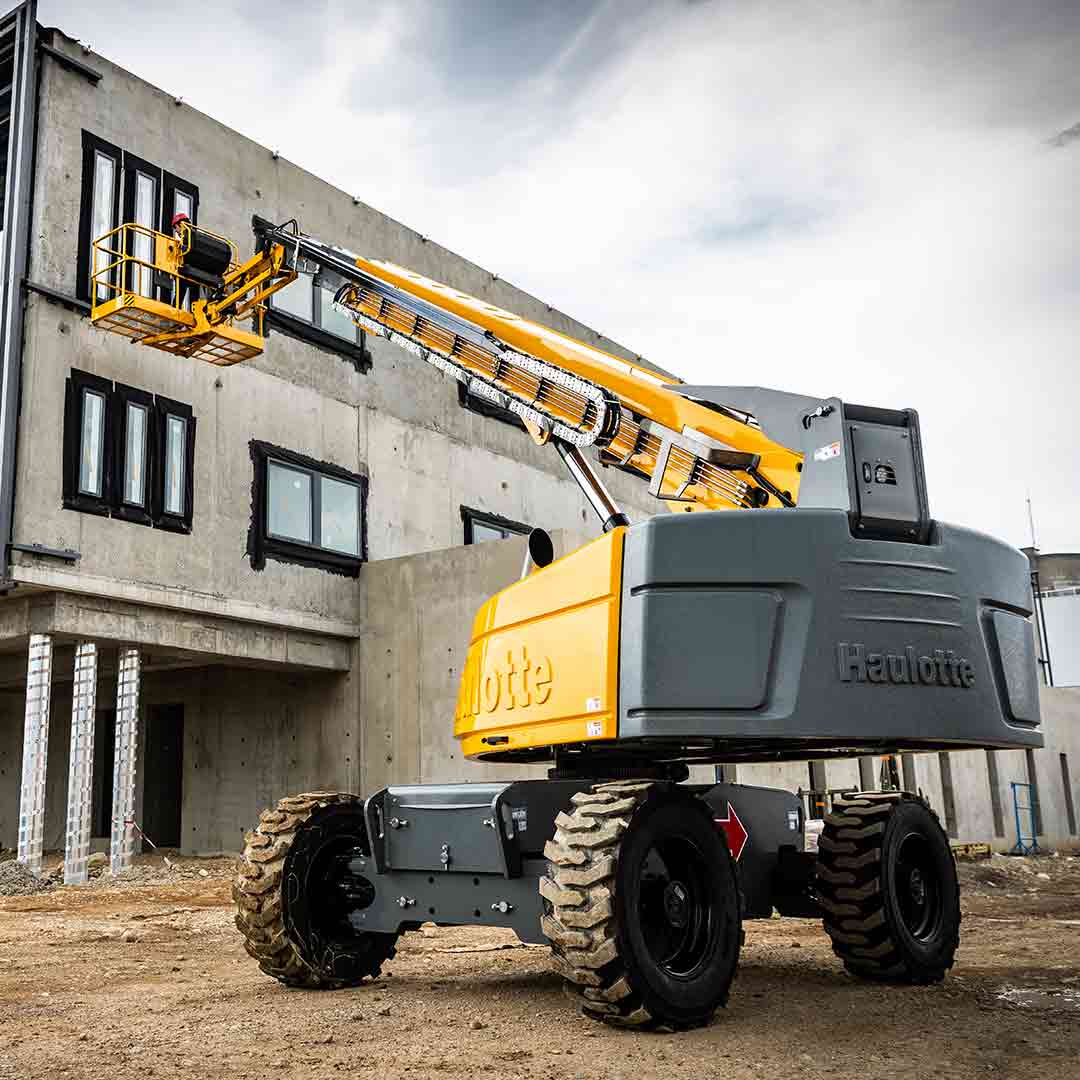

Haulotte Diesel Telescopic Boom Lift HT23 RTJ PRO
Price
*
- Quick lifting speed
- Powerful 4-wheel drive and 4-wheel steering
- 360-degree continuous rotation
- Impressive manoeuvrability
The HT23 RTJ Pro is a telescopic boom lift that delivers superb performance and productivity in any outdoor application. It has a quick lifting speed, thanks to its proportional and simultaneous movements, and a great working envelope. The HT23 RTJ Pro is also equipped with powerful 4-wheel drive and 4-wheel steering to operate on challenging terrain. The 360-degree continuous rotation allows the boom to manoeuvre in difficult conditions. This HT23 RTJ PRO has an excellent lifting height of 20.50 metres and a horizontal outreach of 18.30 metres, which allows the boom to access even the most demanding areas.
Read More
The HT23 RTJ Pro is very comfortable and safe for operators with its exclusive Haulotte Activ’Lighting System which ensures increased safety when working in low light conditions. The Haulotte Activ’Screen, which displays alerts for service reminders or if a fault occurs, and the Haulotte Activ’Shield Bar 2.0 to protect the operator from entrapment.
This boom lift is suitable for a range of industries with its durable and reliable design, including signage, electrical, plumbing, repairs and maintenance, construction, and landscaping.
Read Less
- Height (Lift / Working) (m): 22.50 m
- Lift Capacity (kg): 230 kg
- Power: Diesel
- Workplace: Outside
Specifications
Haulotte Telescopic Boom Lift HT23 RTJ PRO
| HT23 RTJ PRO | |
| Working height | 22.50 m |
| Platform height | 20.50 m |
| Horizontal outreach | 18.30 m |
| Below ground reach | 4.0 m |
| Lift capacity | 230 kg – 450 kg |
| Platform size | 2.44 x 0.91 m |
| Length – stowed | 10.40 m |
| Length storage / transport | 7.80 m |
| Overall width | 2.47 m |
| Height – stowed | 2.70 m |
| Height – storage / transport | 3.30 m |
| Vertical jib rotation | 133 ° (+68 / -65) |
| Platform rotation | 180 ° (+90 / -90) |
| Boom rotation angle | 90 ° (+75 / -15) |
| Turntable rotation | 360 ° continuous |
| Tailswing | 109 cm |
| Wheelbase | 2.50 m |
| Ground clearance | 34 cm |
| Tilt | 5 ° |
| Drive speed | 0.5 – 6.5 km/h |
| Gradeability | 40 % |
| Turning radius – outside | 3.40 m |
| Tyres – form-filled | 385 / 65 – 22.5 |
| Fuel tank | 166 l |
| Engine | Kubota, 36.5kW (49.6hp) |
| Weight | 13400 kg |
| Standard Equipment |
| Haulotte Activ’Lighting System |
| Haulotte Activ’Shield Bar 2.0 |
| Haulotte Stop Emission System |
| Haulotte Activ’Screen onboard coloured monitor screen and diagnostic system |
| Universal telematics plug |
| 4-wheel drive and 4-wheel steer with non-marking tyres |
| Front oscillating axle increases stability on uneven ground |
| Proportional controls enhance comfort and safety |
| 4 simultaneous movements for maximum productivity |
| Automatic differential wheel lock increase rough terrain capacity |
| Upper control box protection cover and tool tray in ultra-solid composite |
| Large modular basket (2.44 x 0.91 m) lateral swing door entry gate |
| Basket limitation + 10° |
| Prepared for power to platform |
| Swing out engine tray for ease of maintenance |
| Sound and light alarm for tilt and load |
| Rotating beacon |
| Driving alarm |
| Hour meter |
| Electric pump system and emergency descent |
| 12 V battery |
| Engine pre-heater with light indicator |
| Low fuel level indicator (upper control box) |
| Haulotte Activ’Lighting System |
| Haulotte Activ’Shield Bar 2.0 |
| Dual load capacity 230 / 450 kg |
| 6.5 kVA hydraulic generator |
| Options & Accessories |
| Narrow modular platform 1.83 m x 0.80 m |
| Power to platform (female plug in the basket with or without circuit-breaker 30 mA) |
| Airline to platform |
| Drop entry gate |
| Biodegradable hydraulic oil |
| 60 km/h wind speed |
| Warm environment package |
| Cold weather package / kit arctic |
| Pipe cradle pack |
| Glazier pack |
| Working lights |
