Access Equipment

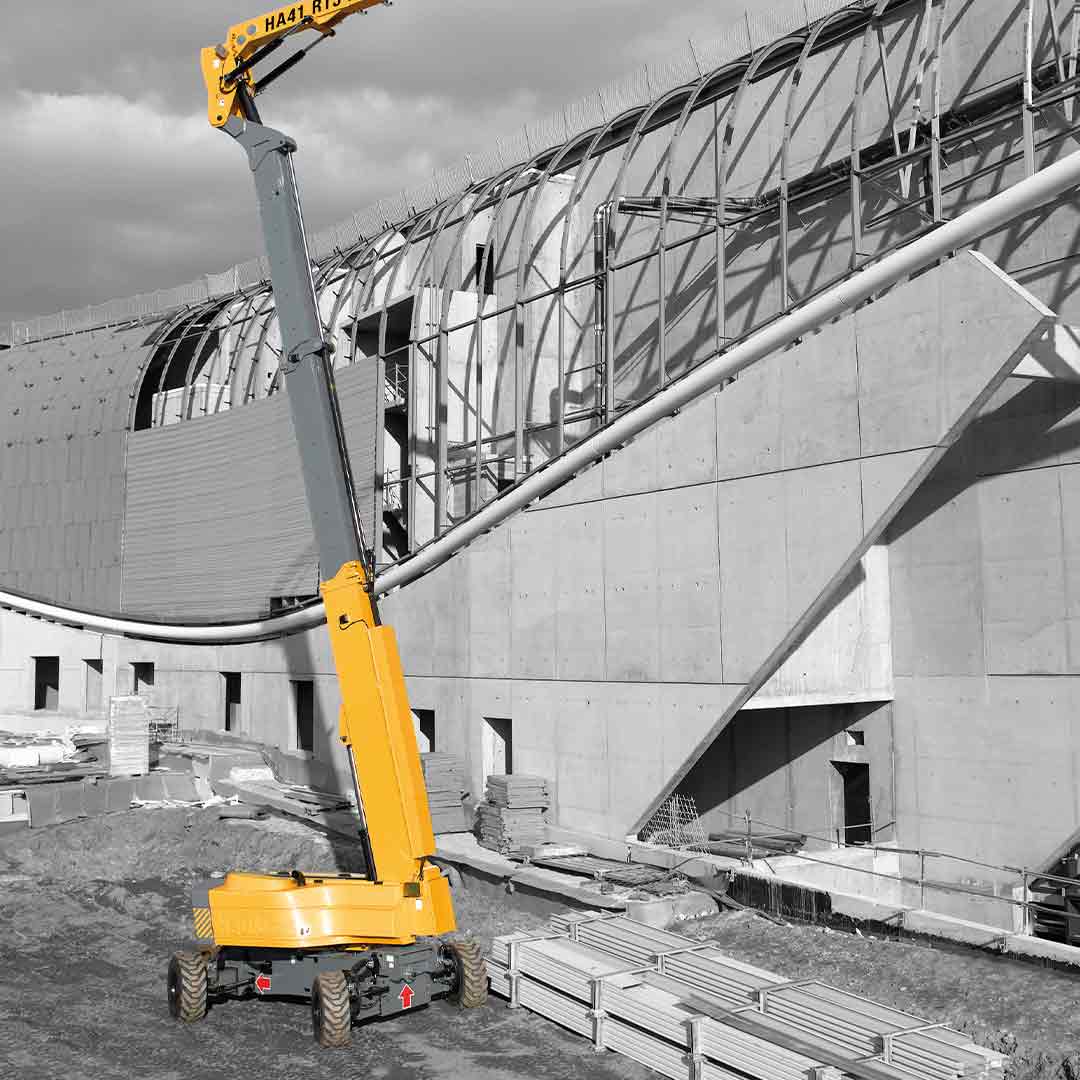

Haulotte Diesel Articulating Boom Lift HA41 RTJ PRO
Price
*
- Proportional and simultaneous controls
- 4-wheel steer and continuous 360-degree rotation
- 39.50 metres platform height
- 20.10 metres horizontal outreach
The HA41 RTJ PRO is a powerful and versatile articulated boom lift that is perfect for all your outdoor all-terrain applications. With a platform height of 41.5m, a lift capacity of 230kg and an outreach of 20.10m, this machine is ideal for a wide range of tasks. The robust design and smart features, including continuous outreach control, a modular basket for easy repairs, and an inbuilt self-diagnosis tool, make the HA41 RTJ PRO the perfect choice for your next project.
Read More
The HA41 RTJ PRO offers outstanding performance and productivity with an unrestricted working envelope. Fully proportional and simultaneous controls, 4-wheel steer and continuous 360-degree rotational movement make this machine extremely versatile.
This machine is Haulotte’s most powerful articulated telescopic boom lift, ideal for outdoor all-terrain applications and projects that require a larger outreach. Suited for many industries, such as construction, events, landscaping, maintenance and more.
Read Less
- Height (Lift / Working) (m): 41.50 m
- Lift Capacity (kg): 230 kg
- Power: Diesel
- Workplace: Outside
Specifications
Haulotte Diesel Articulating Boom Lift HA41 RTJ PRO
| Haulotte HA41 RTJ PRO | |
| Working height | 41.50 m |
| Platform height | 39.50 m |
| Horizontal outreach | 20.10 m |
| Up and over clearance | 17.50 m |
| Below ground reach | 1.50 m |
| Lift capacity | 230 kg |
| Platform size | 2.44 x 0.91 m |
| Length – stowed | 13.10 m |
| Storage / transport length | 11.0 m |
| Width | 2.53 m |
| Width – with extended axles | 3.30 m |
| Height – stowed | 2.99 m |
| Storage / transport height | 3.73 m |
| Vertical jib rotation | 140 ° (+70 ° / -70 °) |
| Platform rotation | 180 ° (+90 ° / -90 °) |
| Turntable rotation | 360 ° continuous |
| Tailswing | 3.88 m |
| Wheelbase | 3.50 m |
| Ground clearance | 38 cm |
| Tilt | 4.0 ° |
| Maximum wind speed rating | 45 km/h |
| Gradeability | 40 % |
| Turning radius – outside axle extended | 5.74 m |
| Tyres – form-filled | 445 / 65 – 22.5 |
| Power source |
Duetz, 55 kW, Turbo Perkins, 62.5 kW, Turbo |
| Weight | 23,900kg |
| Standard Equipment |
| Haulotte Activ’Shield Bar 2.0 |
| Universal telematics plug |
| 4-wheel drive and steer |
| Front oscillating axle increasing stability on uneven ground |
| 2 extendable axles |
| Proportional controls enhancing comfort and safety |
| 4 simultaneous movements for highest productivity |
| Differential wheel lock increasing rough terrain capacity |
| Upper control box protection cover and tool tray in plastic ultra-solid |
| Common modular large platform with lateral swing door gate |
| Basket compensation + 10 ° |
| Power to platform |
| Enhanced swing out engine tray for ease of maintenance |
| Sound and light alarm for tilt and load |
| Driving beacon |
| Travel alarm |
| Electric pump system and emergency descent controls upper control box |
| 12 V battery |
| Engine pre-heater with light indicator |
| Low fuel level indicator (upper control box) |
| Towing hooks |
| Hydrostatic transmission |
| Options & Accessories |
| Airline to platform |
| Lateral swing door gate |
| On-board hydraulic 6.5 kVA generator |
| Biodegradable hydraulic oil |
| Hydraulic oil cooler |
| Cap with key for diesel tank |
| Hydraulic oil in tank and circuit for warm countries |
| Cold weather kit |
| Pipe cradle pack |
| Glazier pack |
| Automatic Overspeed Air Shutdown Valve (electric one-way valve, flame arrestor, spark arrestor) |
| 55 W platform working light |
