Boom Lifts
Haulotte Diesel Articulating Boom Lift HA26 RTJ PRO
Price
*
- Best in class working envelope
- Four simultaneous movements
- Four-wheel drive and steer
- Front oscillating axle

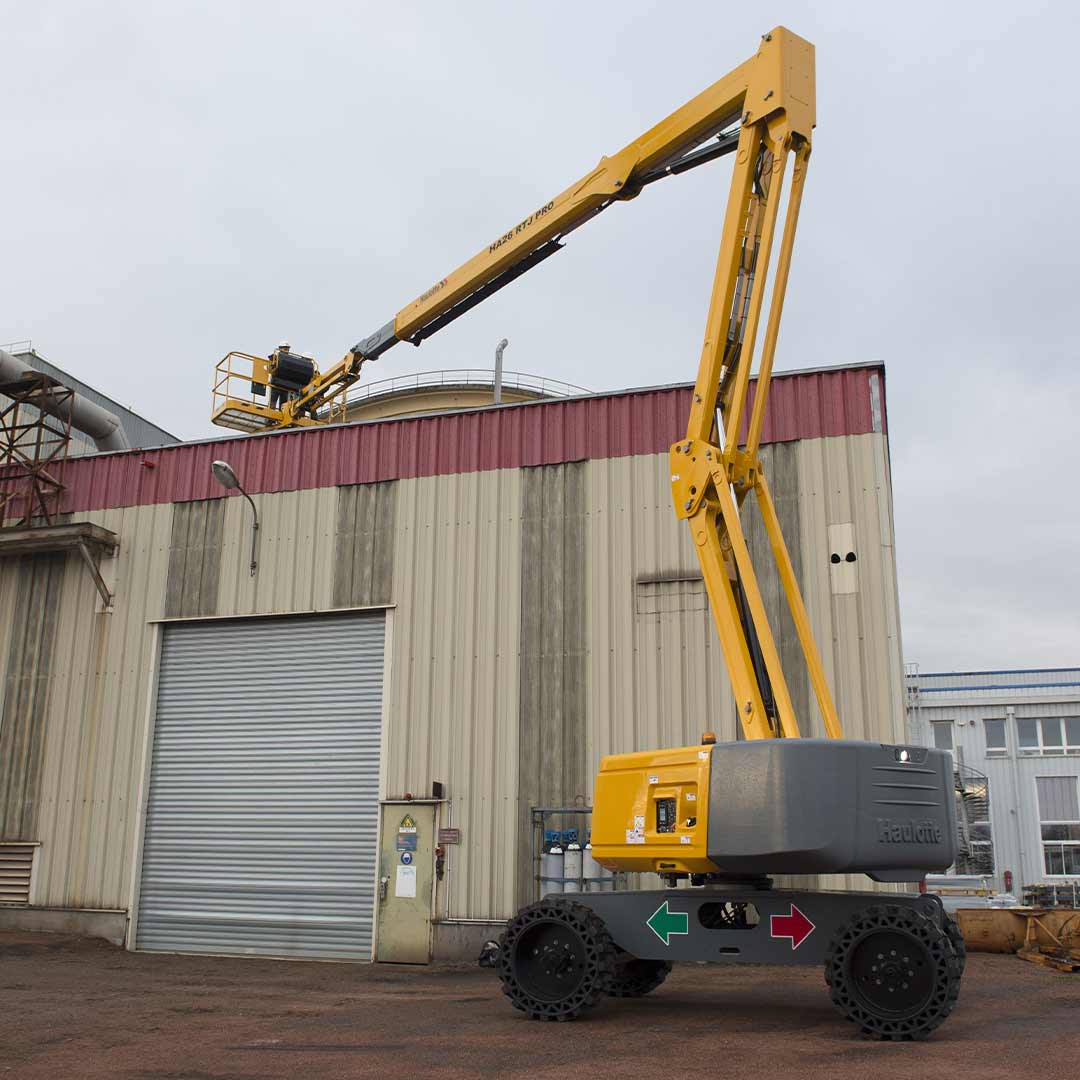

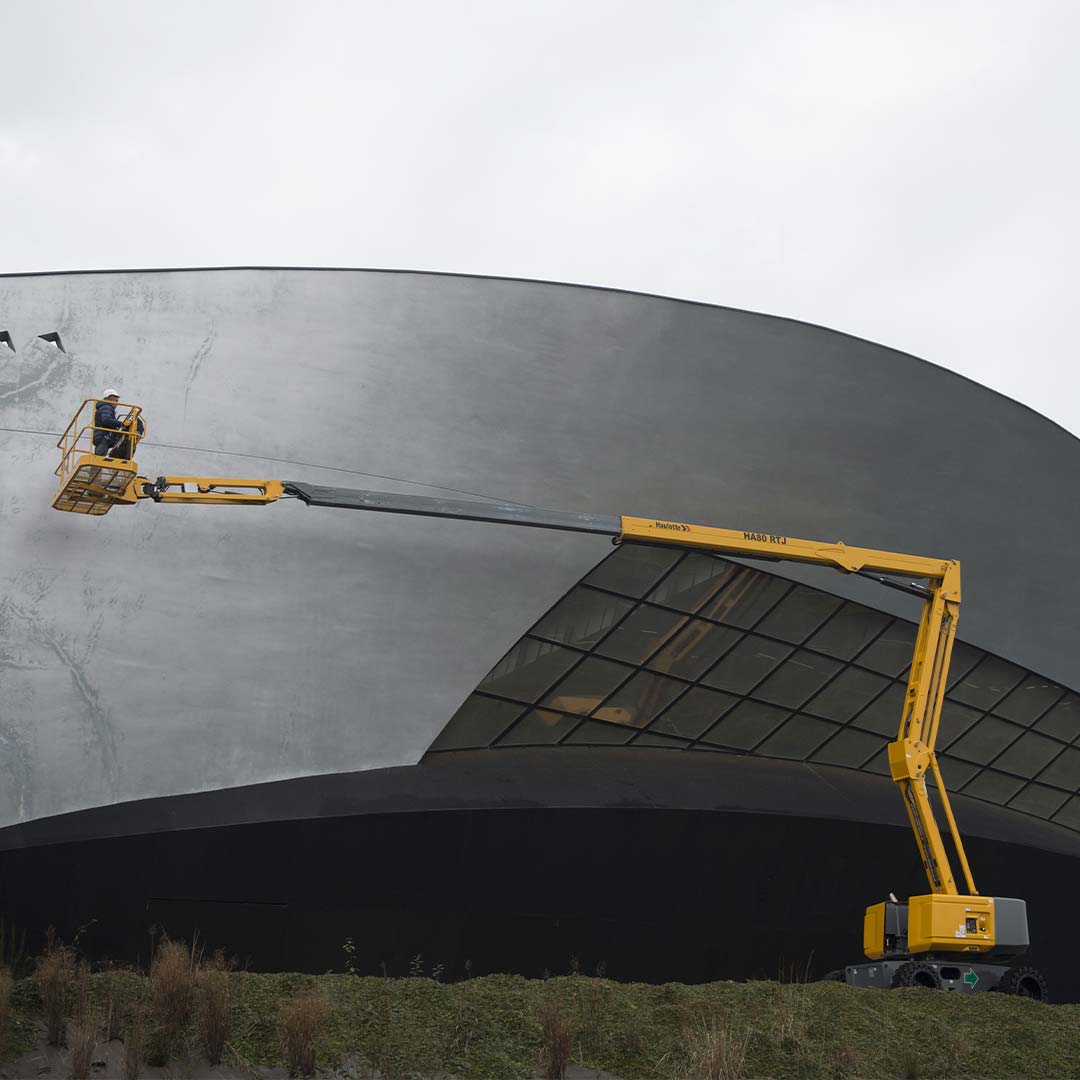

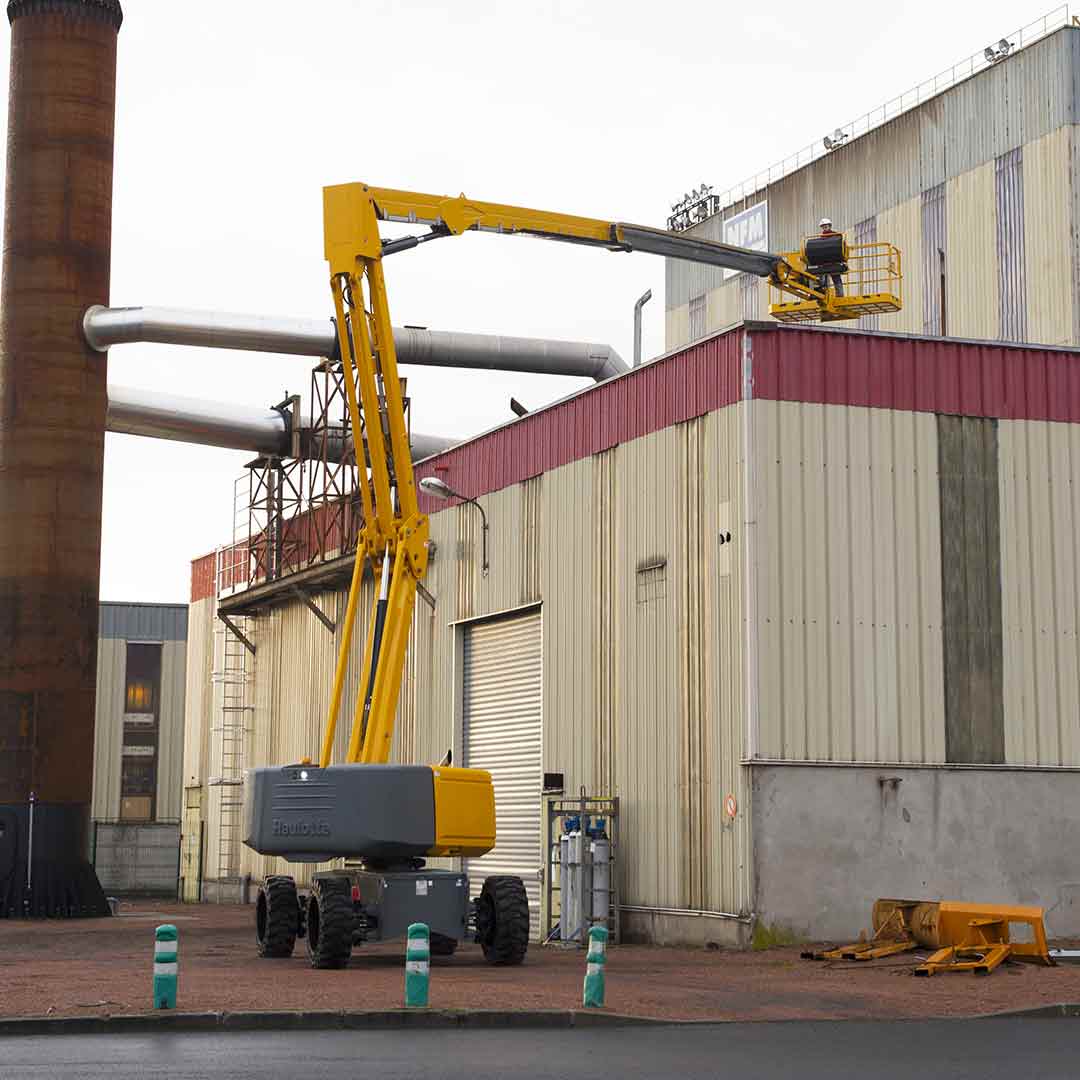

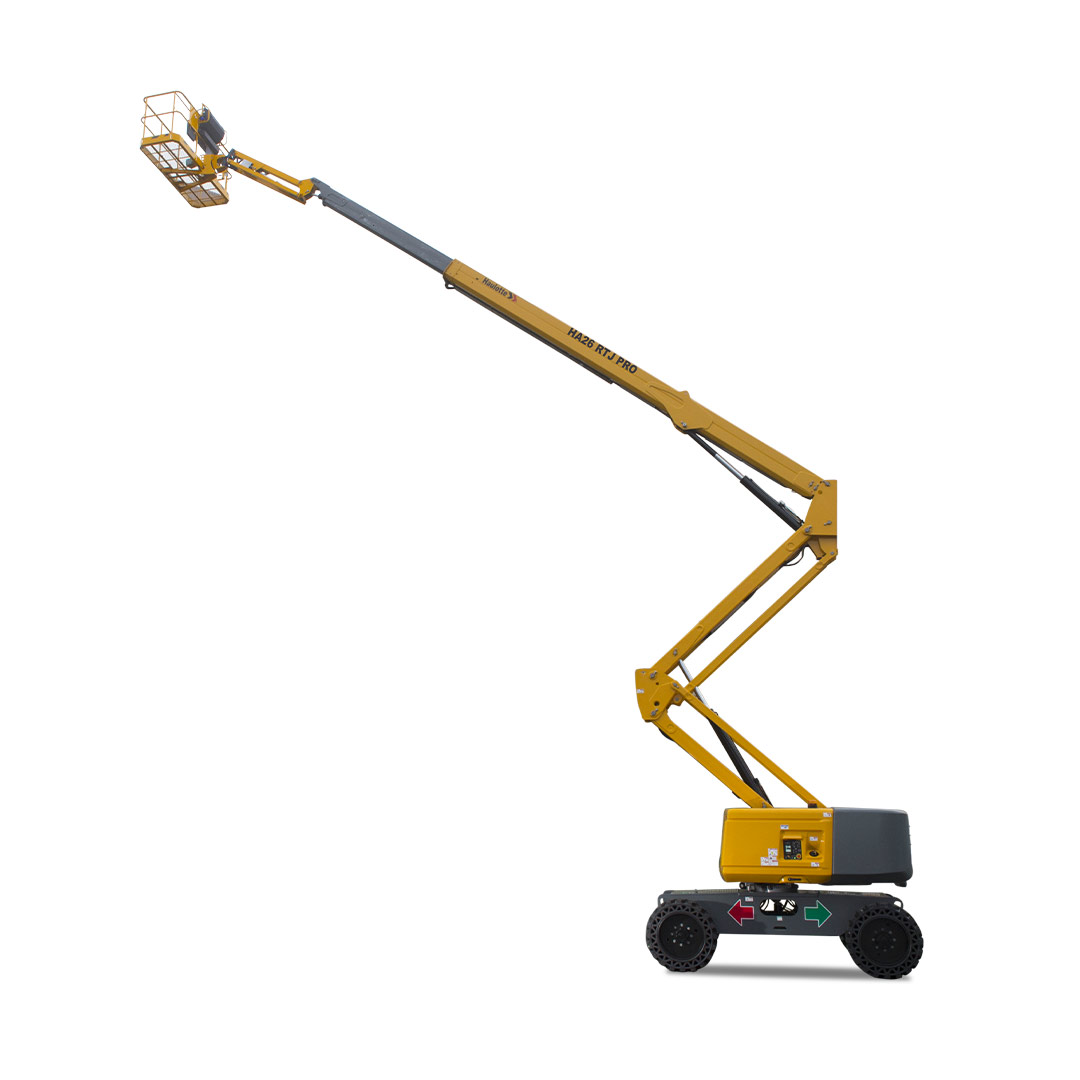

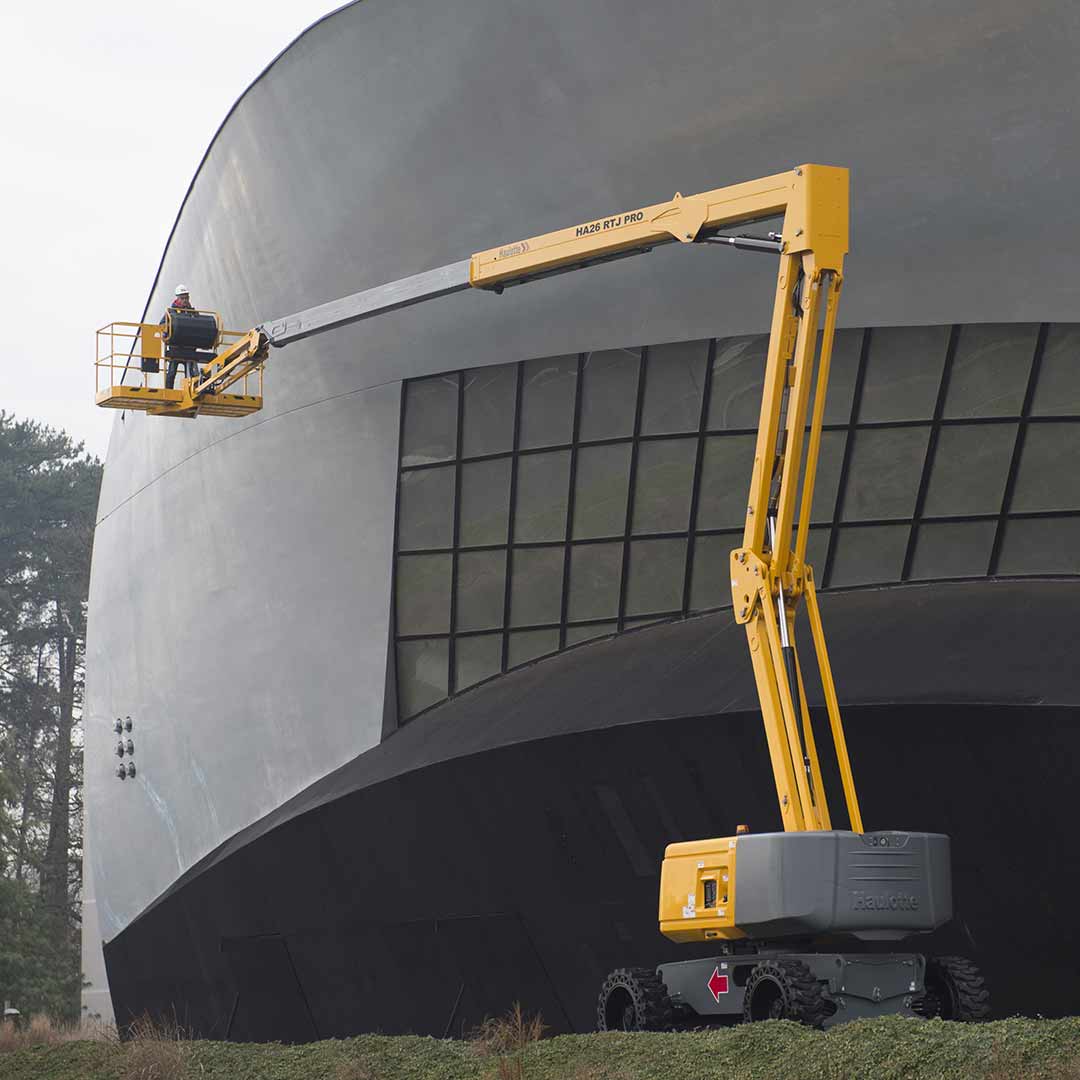

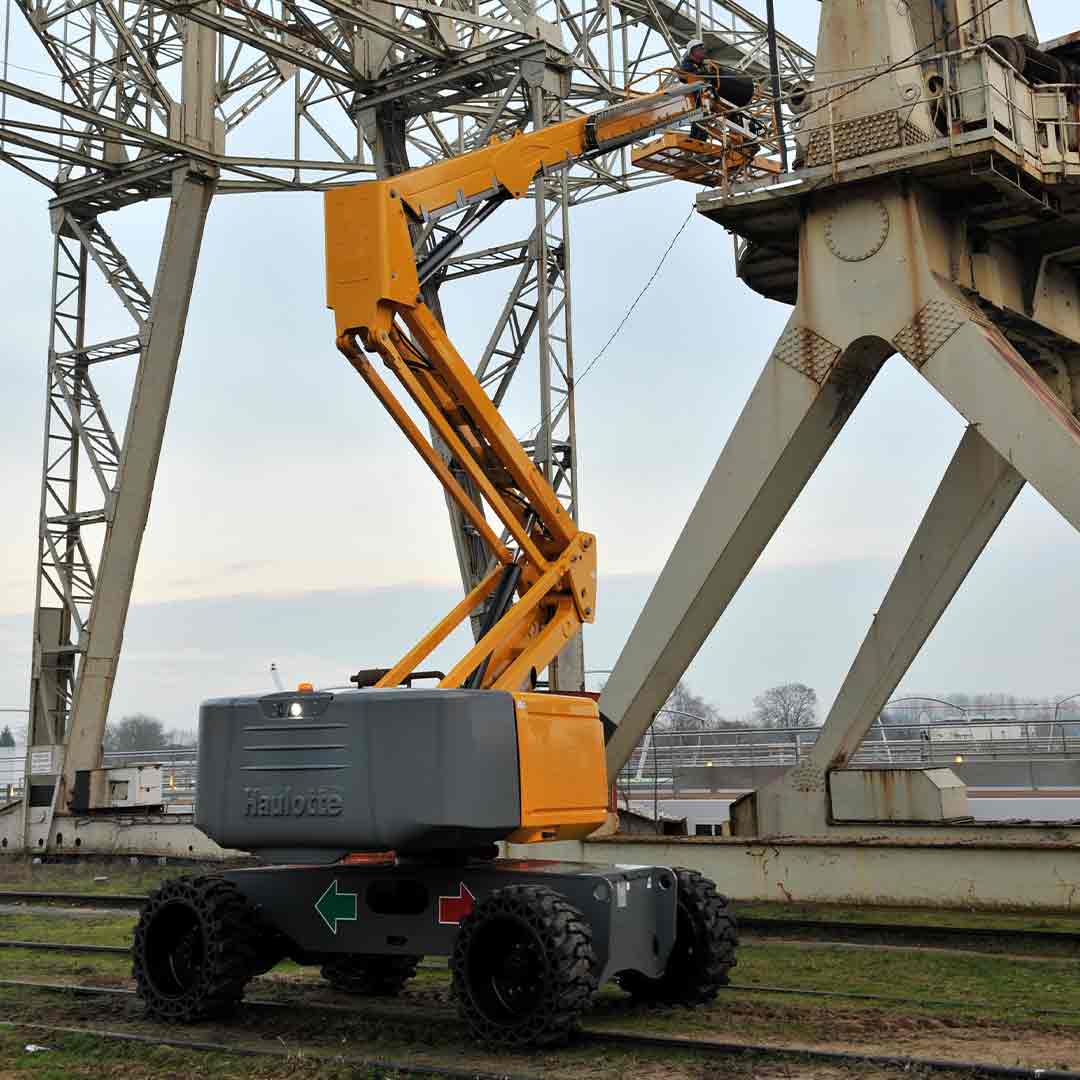

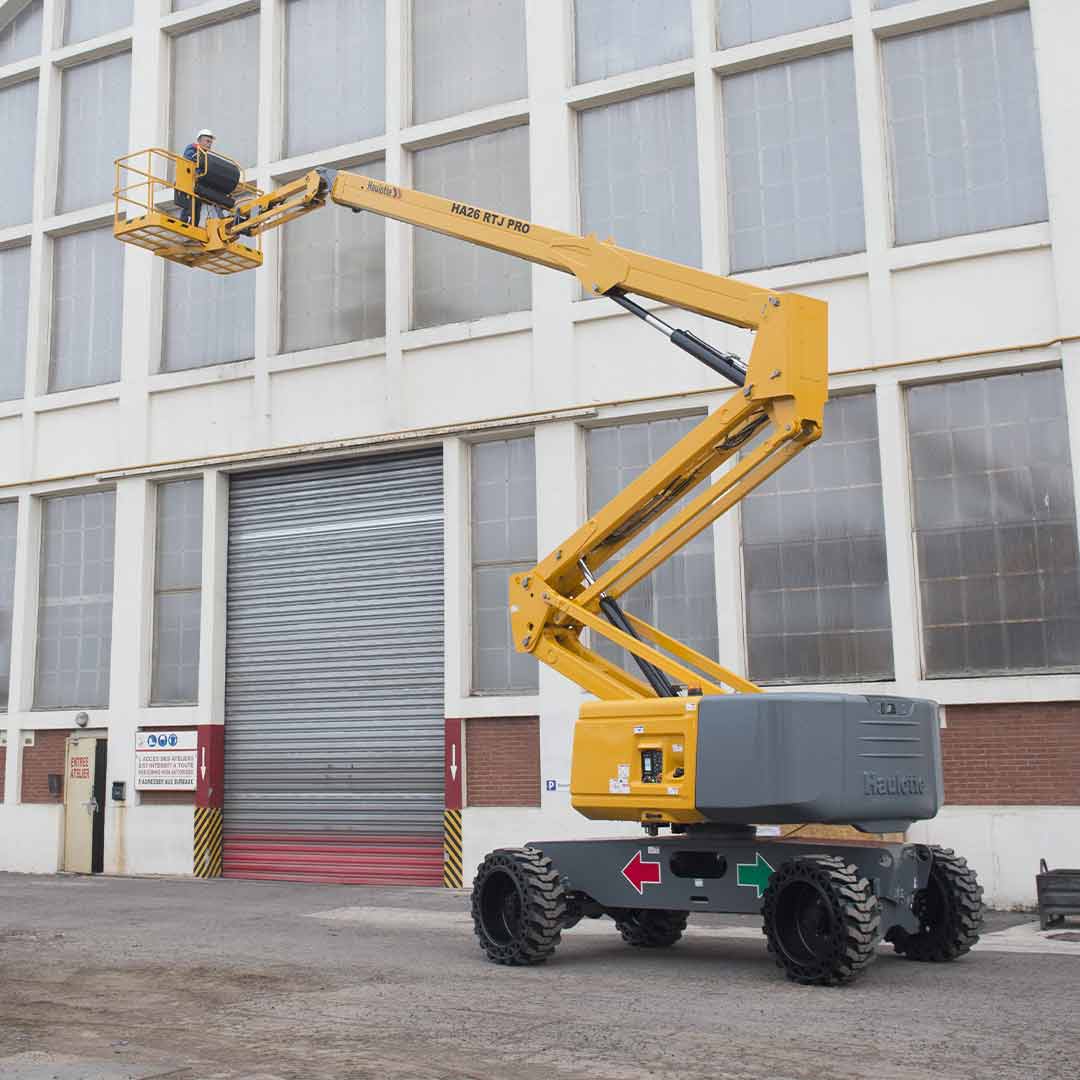

The Haulotte HA26 RTJ PRO diesel articulated boom lift makes no compromises in terms of operator safety, productivity, ease of maintenance and total cost of ownership. This modern boom lift delivers both quick and smooth proportional and simultaneous movements. It also offers a best in class working envelope thanks to its 24.4 metre platform height, 9.30 metre up-and-over clearance and 17.50 metre horizontal outreach. The boom also includes continuous 360-degree rotational movements which boosts productivity.
Read More
Other features include Haulotte’s Activ’ Lighting System which enables safe loading in the dark by illuminating the boom and work area. Another innovative feature is the Stop Emission System which automatically turns off the machine when it’s been idle for too long to maximise fuel consumption. The Activ’ Screen onboard diagnostic system also makes troubleshooting and identifying faults easy. With outstanding rough terrain capabilities and ground clearance, the HA26 RTJ PRO boom lift is ideal on construction sites and other outdoor all-terrain environments.
Read Less
- Height (Lift / Working) (m): 26.40 m
- Lift Capacity (kg): 250 kg
- Power: Diesel
- Workplace: Outside
Specifications
Haulotte Diesel Articulating Boom Lift HA26 RTJ PRO
| HA26 RTJ PRO | |
| Working height | 26.4 m |
| Platform height | 24.4 m |
| Horizontal outreach | 17.5 m |
| Up and over clearance | 9.30 m |
| Lift capacity | 250 kg – option 350 kg |
| Platform size | 2.44 x 0.91 m |
| Length – stowed | 11.80 m |
| Width | 2.48 m |
| Height – stowed | 2.97 m |
| Storage / transport length | 9.40 m |
| Storage / transport height | 2.98 m |
| Platform rotation | 180 ° |
| Vertical jib rotation | 133 ° (-65 ° / + 68 °) |
| Turntable rotation | 360 ° continuous |
| Tailswing | 0.76 m |
| Wheelbase | 2.80 m |
| Ground clearance | 48 cm |
| Tilt | 4 ° |
| Drive speed | 5 km/h |
| Maximum wind speed rating | 45 km/h |
| Gradeability | 45 % |
| Turning radius – outside | 4.35 m |
| Tyres – solid rough terrain | 1025 x 365 mm |
| Power source | Kubota, 36.5 kW (49.6 hp) |
| Weight | 15,500kg |
| Standard Equipment |
| Haulotte Activ’Screen: embedded diagnostic system on lower control box, with colour screen |
| Haulotte Activ’Shield Bar 2.0 |
| Haulotte Activ’Lighting System, safe load |
| Haulotte Stop Emission System: automatic engine stop system |
| Universal telematics plug |
| 4-wheel drive, 4-wheel steer |
| Front oscillating axle |
| 4 simultaneous movements |
| Automatic differential wheel lock |
| Upper control box cover |
| Tool tray |
| Large modular Haulotte basket 2.44 m x 0.91 m |
| Lateral swing door entry gate |
| AC power to platform (110 / 230 V) |
| Swing out engine tray |
| Sound and light alarm for tilt and load |
| Rotating beacon |
| Travel alarm |
| Electric pump system and emergency descent |
| 12 V battery / electrical control system |
| Engine pre-heater with light indicator |
| Low fuel level indicator (upper control box), fuel gauge (lower control box) |
| Options & Accessories |
| 60 km/h wind speed |
| Power to platform (female plug in the basket) |
| Air-line to platform |
| Drop bar entry gate |
| Biodegradable hydraulic oil |
| Hydraulic oil cooler |
| Cold weather kit – 20 °C / arctic weather kit – 25 °C |
| Pipe cradle pack |
| Glazier pack |
| Working light |
| Battery circuit breaker |
