Haulotte Diesel Articulating Boom Lift HA20 RTJ PRO
Price
*
- Large working envelope
- Fast-lifting speed of 48 seconds to full height
- Excellent all-terrain capacities
- Outstanding productivity

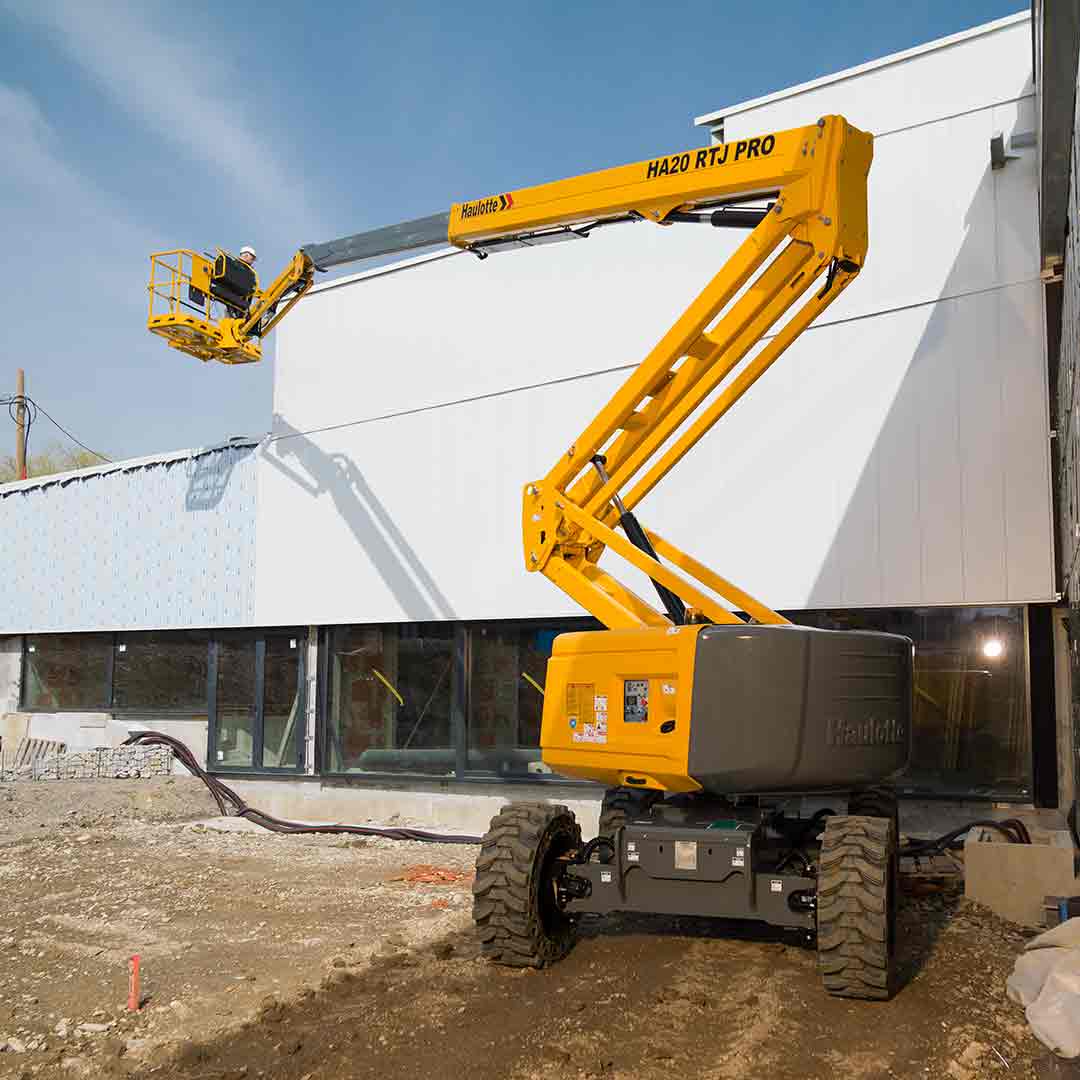

The Haulotte HA20 RTJ PRO diesel articulating boom lift is a reliable and rugged machine that provides outstanding performance and productivity. With its industry leading working envelope, it offers an outreach of 12.20 metres, as well as a fast-lifting speed of 48 seconds to full height. The quick elevation speed coupled with simultaneous movement controls and 360-degree rotation, lets you reach the work area quickly for greater efficiency.
Read More
The oscillating axle, limited-slip differential, and sturdy solid tyres, allows the HA20 RTJ PRO to operate on the roughest terrain. The large front wheels, together with the 4-wheel steering, ensures optimal stability and exceptional manoeuvrability on the worksite. This articulating boom lift is also easy to transport due to its practical design.

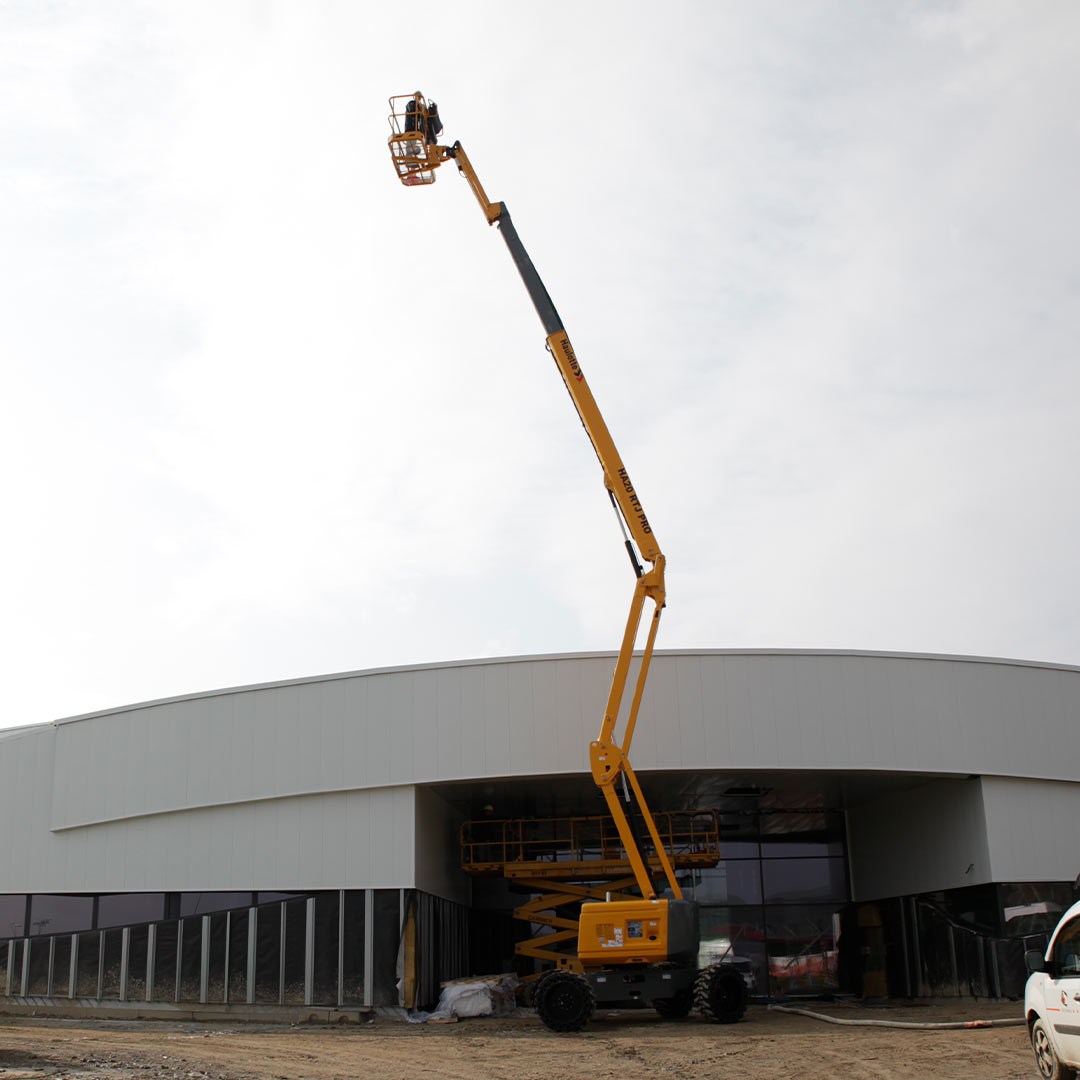

The platform height of 18.60 metres and a lift capacity of 230kg provides the boom lift with a first-class performance, excellent productivity, and efficiency for all kinds of applications.
Read Less
- Height (Lift / Working) (m): 20.60 m
- Lift Capacity (kg): 230 kg
- Power: Diesel
- Workplace: Outside
Specifications
Haulotte Diesel Articulating Boom Lift HA20 RTJ PRO
| Haulotte HA20 RTJ PRO | |
| Working height | 20.60 m |
| Platform height | 18.60 m |
| Horizontal outreach | 12.20 m |
| Up and over clearance | 8.40 m |
| Lift capacity | 230 kg |
| Platform size | 2.44 x 0.91 m |
| Length – stowed | 8.80 m |
| Width | 2.42 m |
| Height – stowed | 2.51 m |
| Storage / transport length | 6.50 m |
| Storage / transport height | 2.93 m |
| Vertical jib rotation | 140 ° (+60 ° / -80 °) |
| Platform rotation | 180 ° (+90 ° / -90 °) |
| Turntable rotation | 360 ° continuous |
| Tailswing | 14.20 cm |
| Wheelbase | 2.45 m |
| Ground clearance | 42 cm |
| Tilt | 5 ° |
| Drive speed | 0.5 – 5 km/h |
| Gradeability | 45 % |
| Tyres – solid rough terrain | 1025 x 365 mm |
| Turning radius – outside | 3.75 m |
| Power source | Kubota, 36.5kW (49.6hp), Stage 3A |
| Weight | 9,600 kg |
| Standard Equipment |
| Haulotte Activ’Screen |
| Haulotte Activ’Shield Bar 2.0 |
| Haulotte Stop Emission System |
| Universal telematics plug |
| Rotating beacon |
| Front oscillating axle increases stability on uneven ground |
| 4-wheel drive, 4-wheel steer |
| Permanent limited slip differential |
| 4 simultaneous movements for maximum productivity |

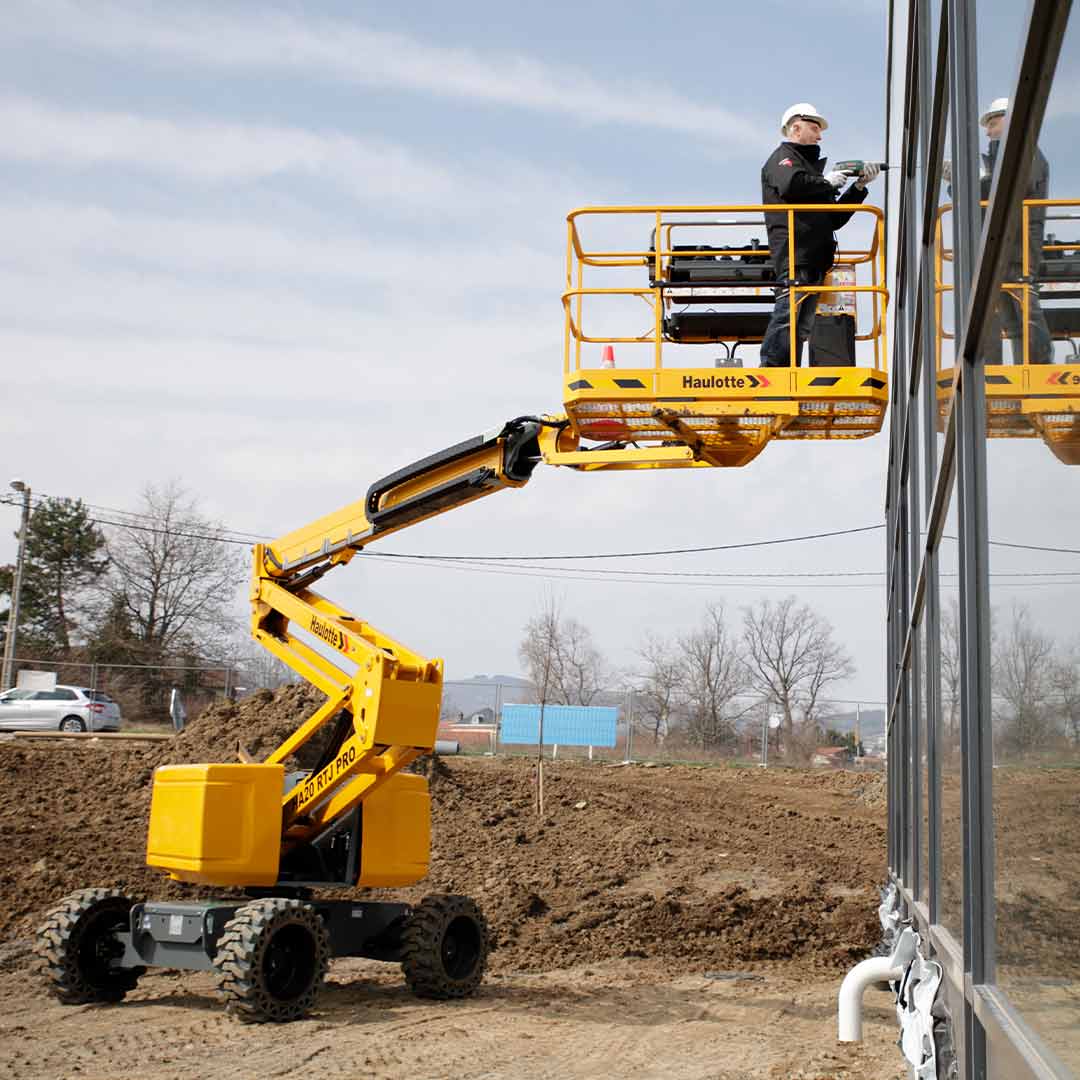

| Large modular basket (2.44 m x 0.91 m), lateral swing door entry gate |
| Upper control box protection cover and tool tray in ultra-solid plastic |
| Travel alarm |
| Electric pump system and emergency descent |
| 12 V battery |
| Sound and light alarm for tilt and load |
| Hour meter |
| Low fuel level indicator (upper and lower control boxes) |
| Swing out engine tray for ease of maintenance |
| Non-marking tyres |
| Flashing light |
| Hydraulic generator Dynaset 6.5 kVA |
| Options & Accessories |
| Glazier pack |
| Biodegradable hydraulic oil |
| Hot weather kit: hydraulic oil cooler + hydraulic oil |
| Cold weather kit: -10 °C / -25 °C |
| Power to platform 110 / 230 V (with or without circuit-breaker 30 mA) |
| 55 W working light |
| Air-line to platform 6.5 mm inner diameter |
| Hydraulic generator Dynaset 6.5 kVA |
| Drop entry gate |
| Small basket 1.83 m x 0.91 m |
| Spark arrestor and electric one-way valve |
