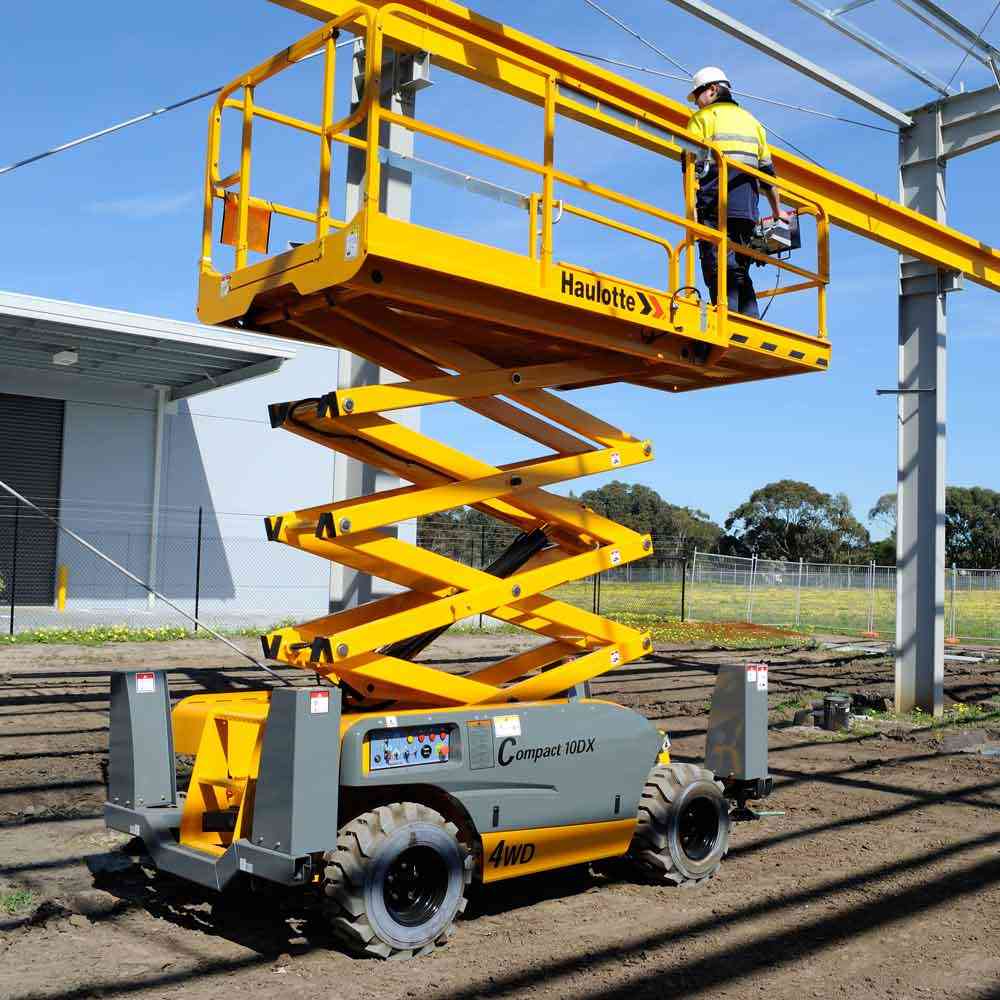

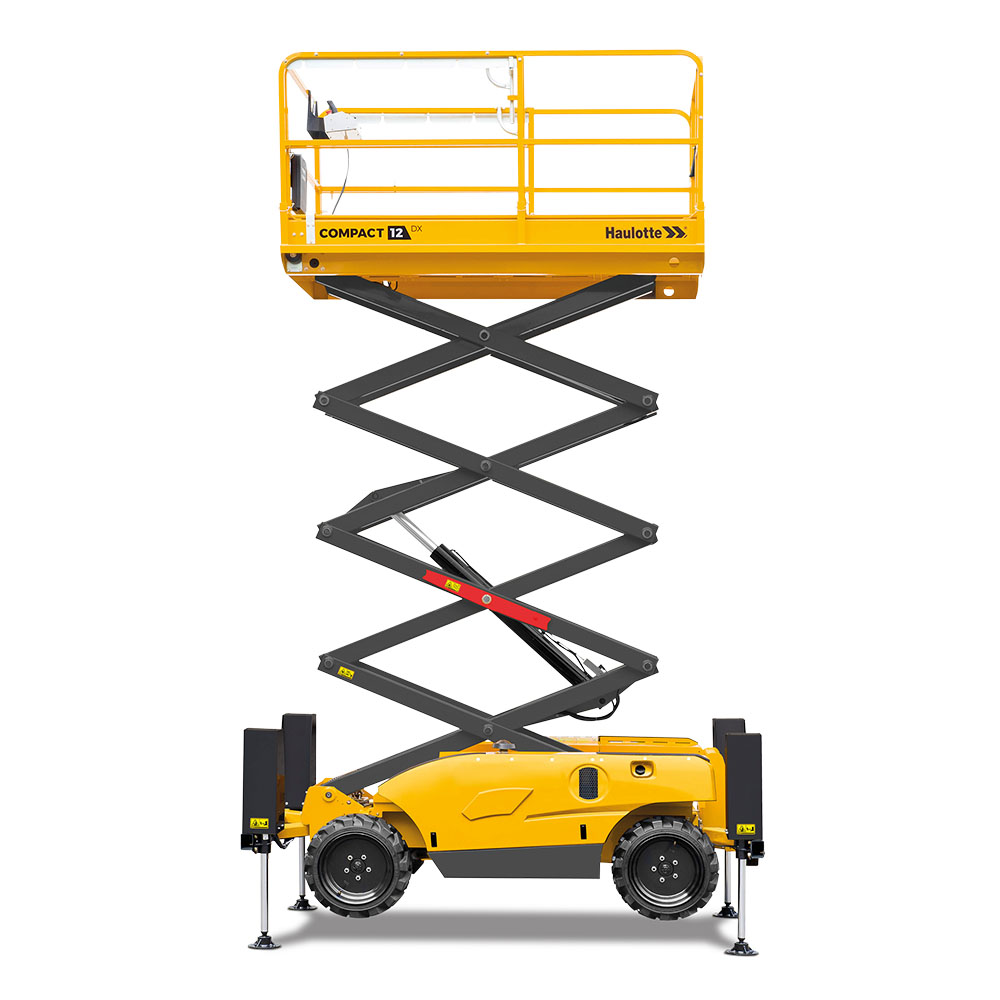

Haulotte Diesel All Terrain Scissor Lift Compact 10-12 DX



  • Outstanding all-terrain capability
  • 4-wheel drive
  • Excellent gradeability
  • Full proportional controls


The 10-12 DX series are high performance, compact scissor lifts that offer exceptional productivity and performance for outdoor applications. The scissor lifts’ high-performance outriggers, ground clearance of 27cm, and automatic hydraulic differential lock allow them to operate effectively on difficult terrain.

Read More

The powerful Kubota diesel engine, with excellent 4-wheel drive and 2-wheel steering, provides outstanding manoeuvrability so you can position the scissor lift in the optimal area during the job. The 10 DX and the 12 DX boasts a lift capacity of 450 to 565kg and a maximum lift height of 10.15 to 12.15 metres. And with a variety of other smart features included as standard, these scissor lifts will boost productivity indoors and outdoors.

The two models, the Compact 10 DX, and the Compact 12 DX, offer comfort and flexibility while in use. The proportional controls are easy and smooth to operate, with access to deploy and retract the 4 stabilisation outriggers with only one switch.

The 10-12 Compact DX range are suited for several applications and industries, including maintenance, installations, exterior maintenance, electrical and signage.

Read Less

  • Lift Capacity (kg): 450 kg, 565 kg
  • Power: Diesel
  • purchase_options: Hire, New
  • Workplace: Outside


Haulotte Diesel Scissor Lift Compact 10-12 DX

  Compact 10 DX Compact 12 DX
Working height 10.15 m 12.15 m
Platform height 8.15 m 10.15 m
Lift capacity 565 kg 450 kg
Length 3.17 m 3.17 m
Width 1.80 m 1.80 m
Height – stowed 2.43 m 2.55 m
Storage height 1.57 m 1.70 m
Platform length 2.50 m 2.50 m
Extended platform length 3.70 m 3.70 m
Platform extensions length 1.20 m 1.20 m
Platform width 1.54 m 1.54 m
Wheelbase 1.87 m 1.87 m
Ground clearance 27 cm 27 cm
Number of extensions 1 1
Drive speed 0.8 – 5.5 km/h 0.8 – 5.5 km/h
Turning radius – outside 3.5 m 3.5 m
Lift / lower speed 35 s / 46 s 40 s / 51 s
Engine 18.5 kW – 24.8 hp 18.5 kW – 24.8 hp
Gradeability 40 % 40 %
Hydraulic system capacity 26 x 12 – 16.5 26 x 12 – 16.5
Hydraulic system capacity 75 l 75 l
Weight 3440 kg 4060 kg


Standard Features & Options

Standard Features
Kubota engine
4-wheel drive, 2-wheel steer
3° Tilt alarm
1.2m platform extension
12V – 74 Ah Batteries
Removable operator’s control box
Brake release
Hour meter
Towing hooks
Hydraulic brakes
Manual platform lowering valve
Foam filled all terrain tyres
Automatic levelling outriggers
Side shields
Lanyard attachment points


Options & Accessories
Non marking tyres
Rotating beacon
110 V power to the platform
Travel alarm
Motion alarm for movements and translation
Working light
Catalytic exhaust
Biodegradable oil
Cold Weather Package
Swing-door gate
Foldable guard-rails
Hydraulic generator 3.5 kW
