faresin

Access Equipment

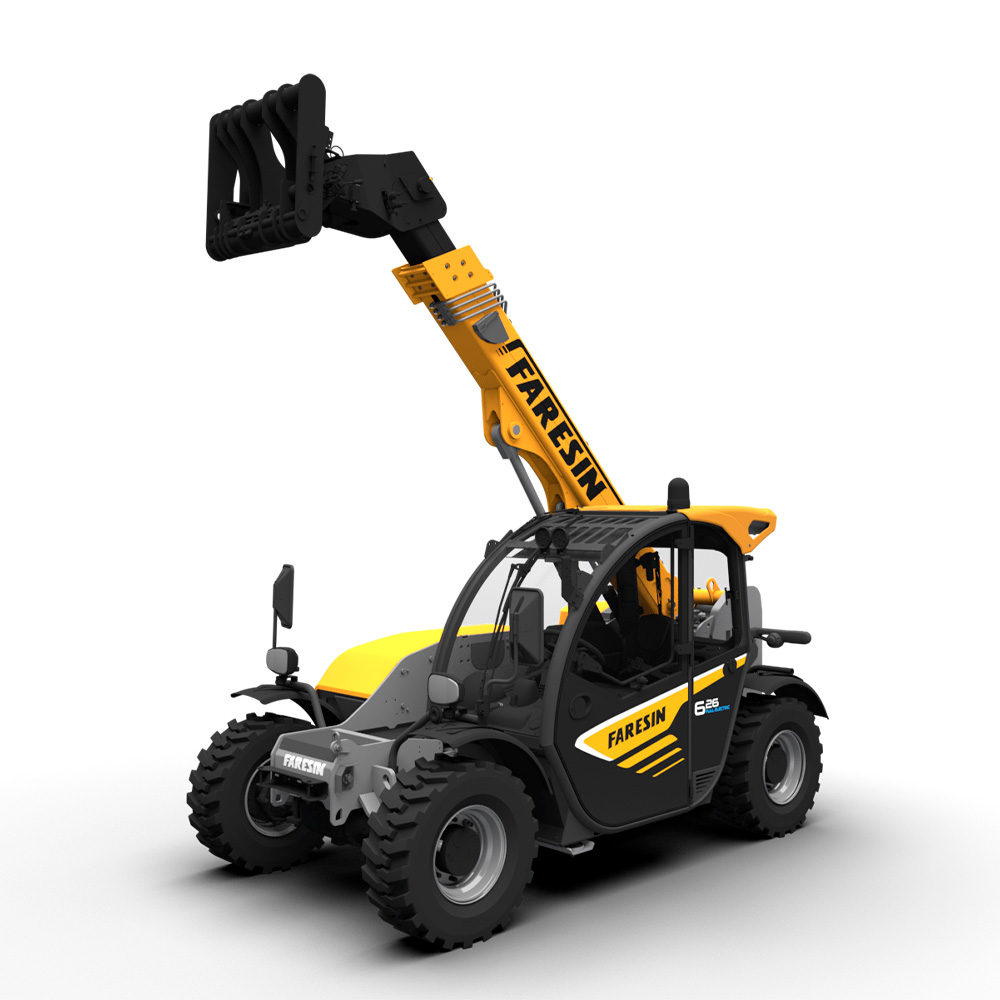

Faresin Full Electric Telehandler 2.6-4.5T

Price

*

Electric performance without the noise or emissions.
  • Zero CO₂ emissions during operation.
  • Quiet performance for noise-sensitive environments.
  • Up to 11 hours of battery operation.
  • Low operating and maintenance costs.

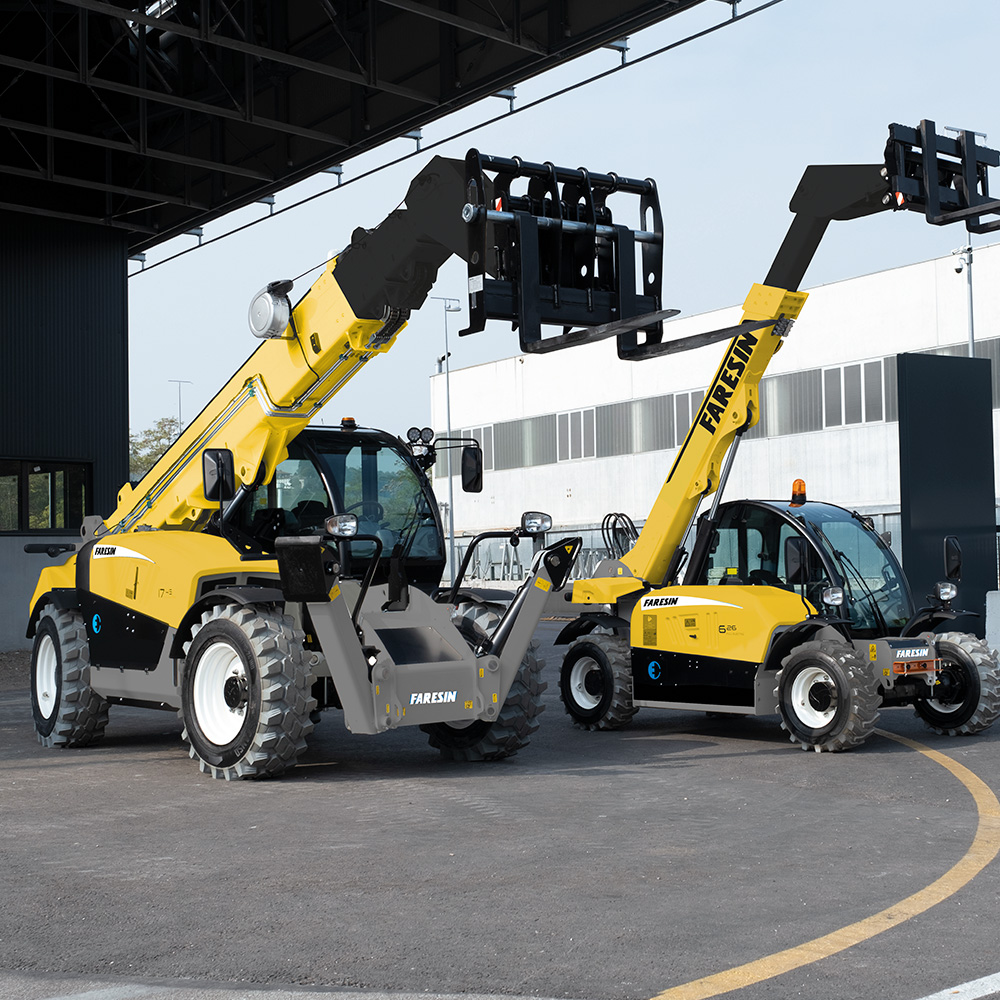

The Faresin Full Electric Telehandler delivers the performance and versatility of a conventional telehandler without the noise and emissions of a diesel engine. Available across compact and larger configurations from 2.6 to 4.5 tonnes and with lifting height from 5.8 to 16.4 metres, it is designed for applications where reduced environmental impact, low noise and zero exhaust emissions are important.

Read More

Electric drive provides smooth, responsive performance while regenerative braking helps recover energy and return it to the battery. Depending on configuration and operating conditions, battery systems can provide up to 11 hours of operation, while multiple charging options provide flexibility for different work schedules and site requirements.

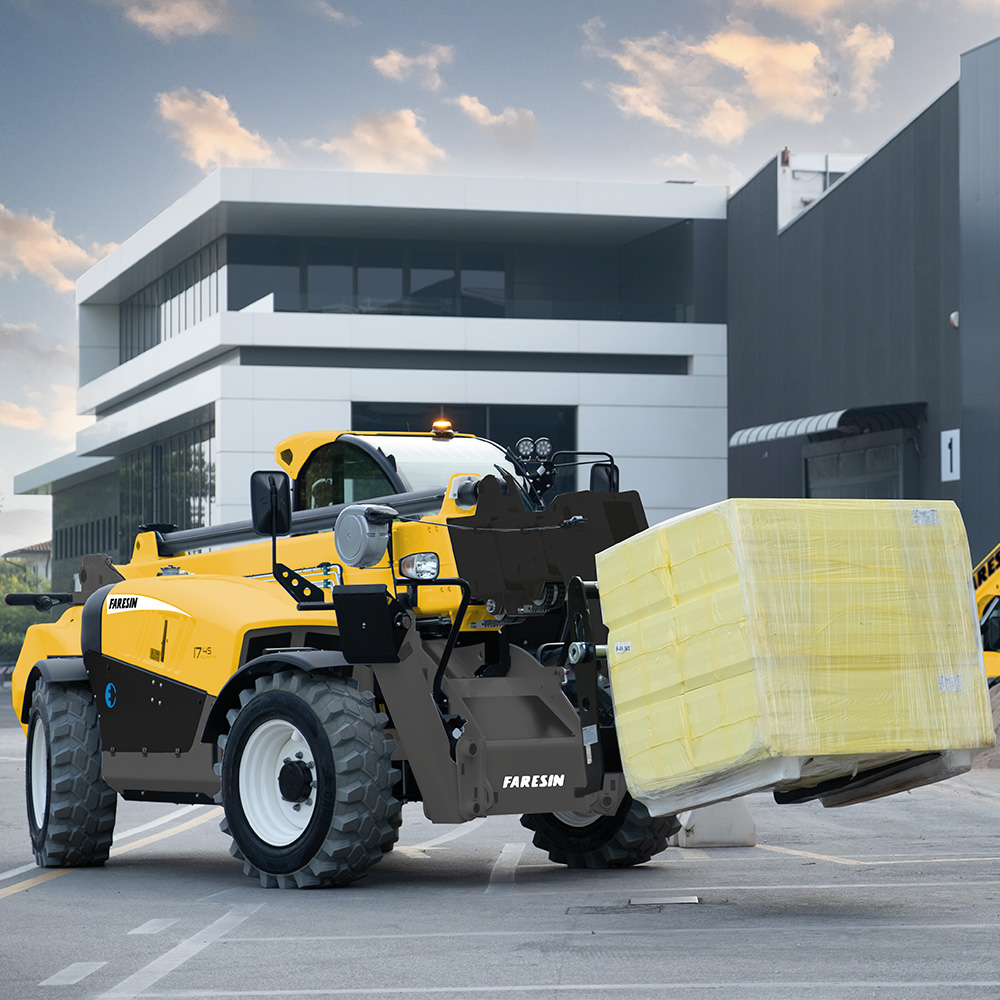

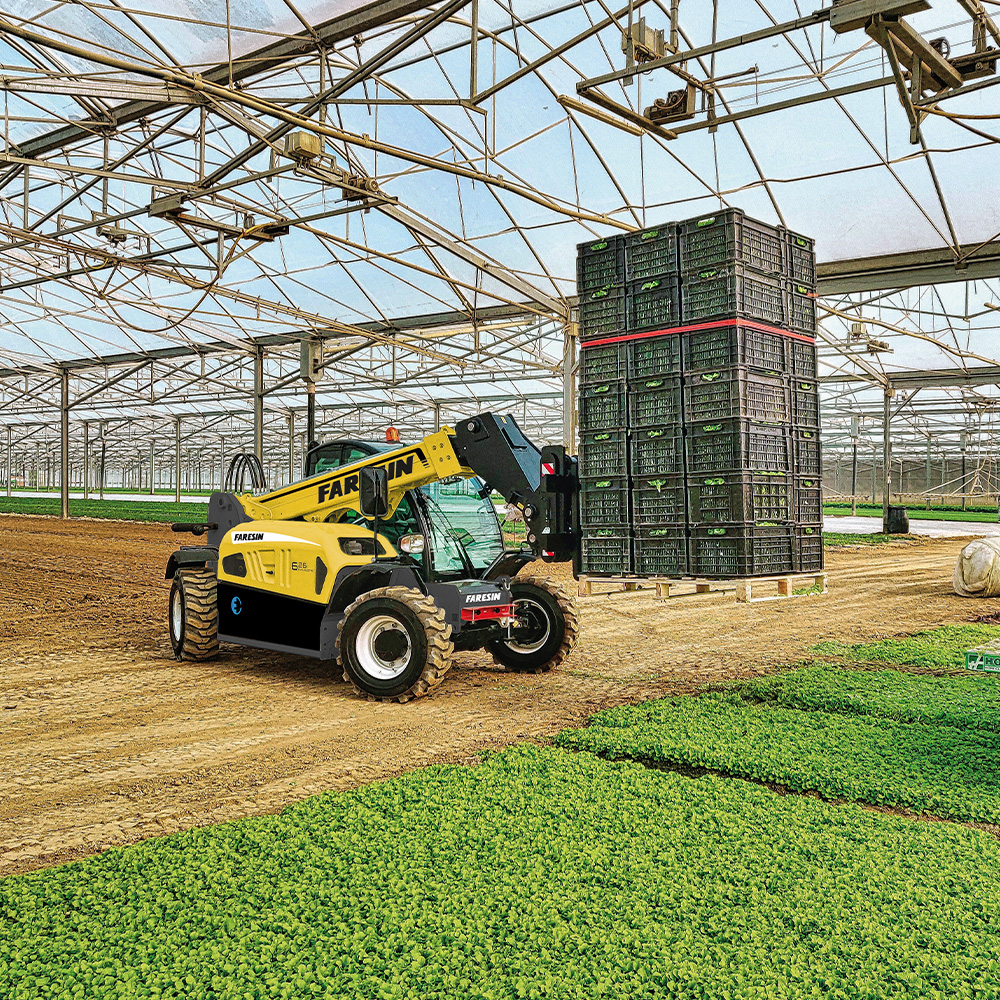

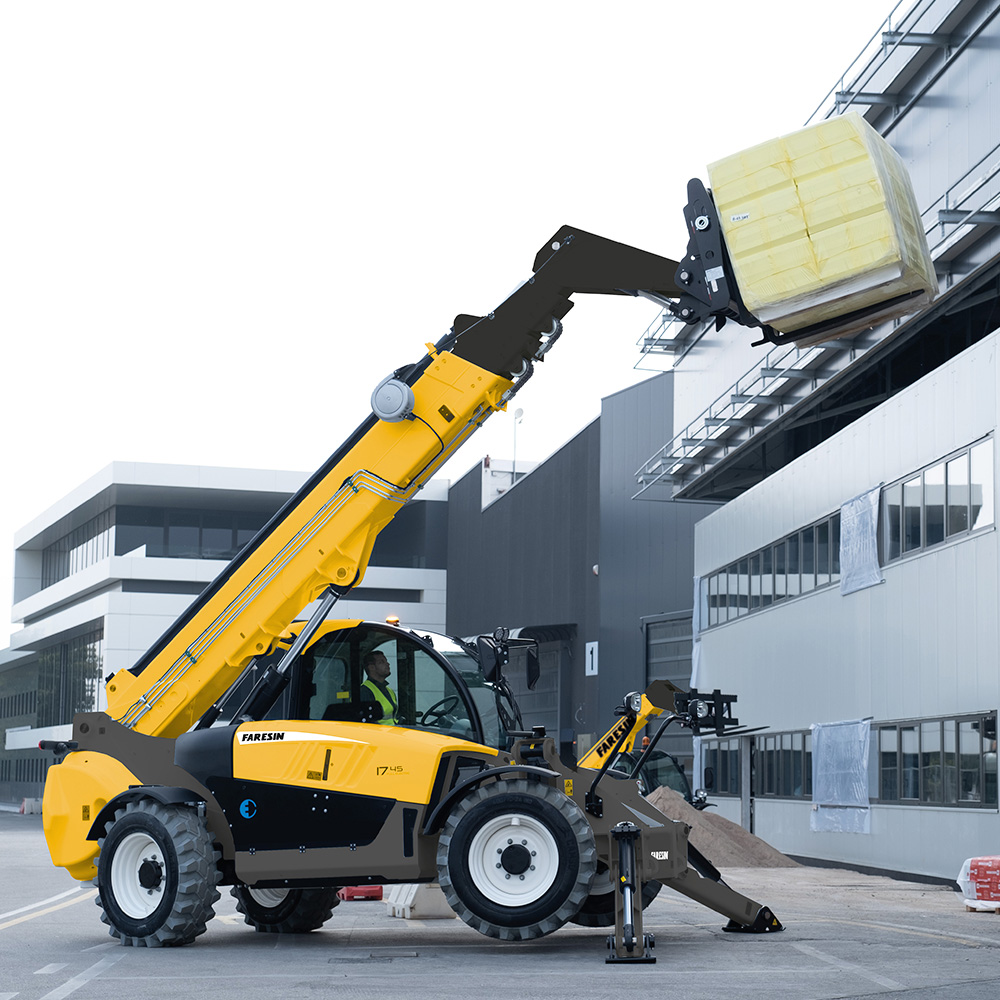

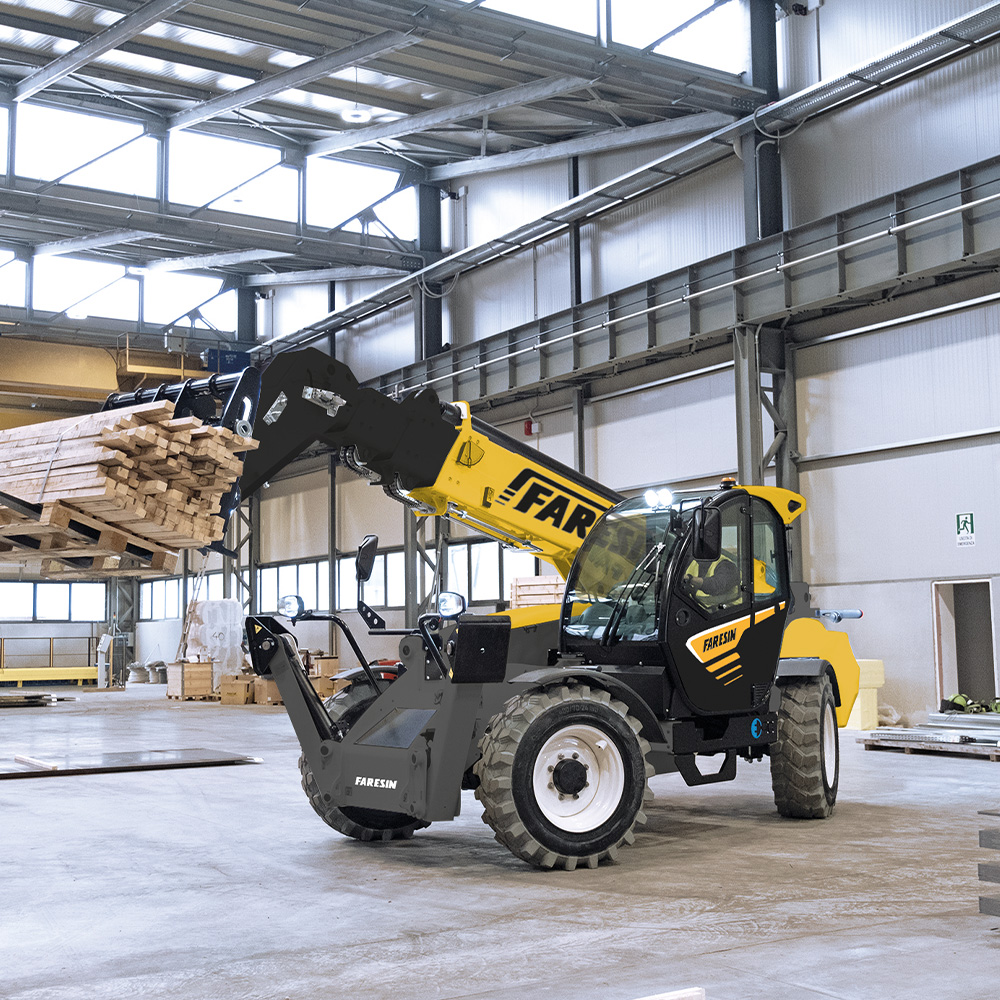

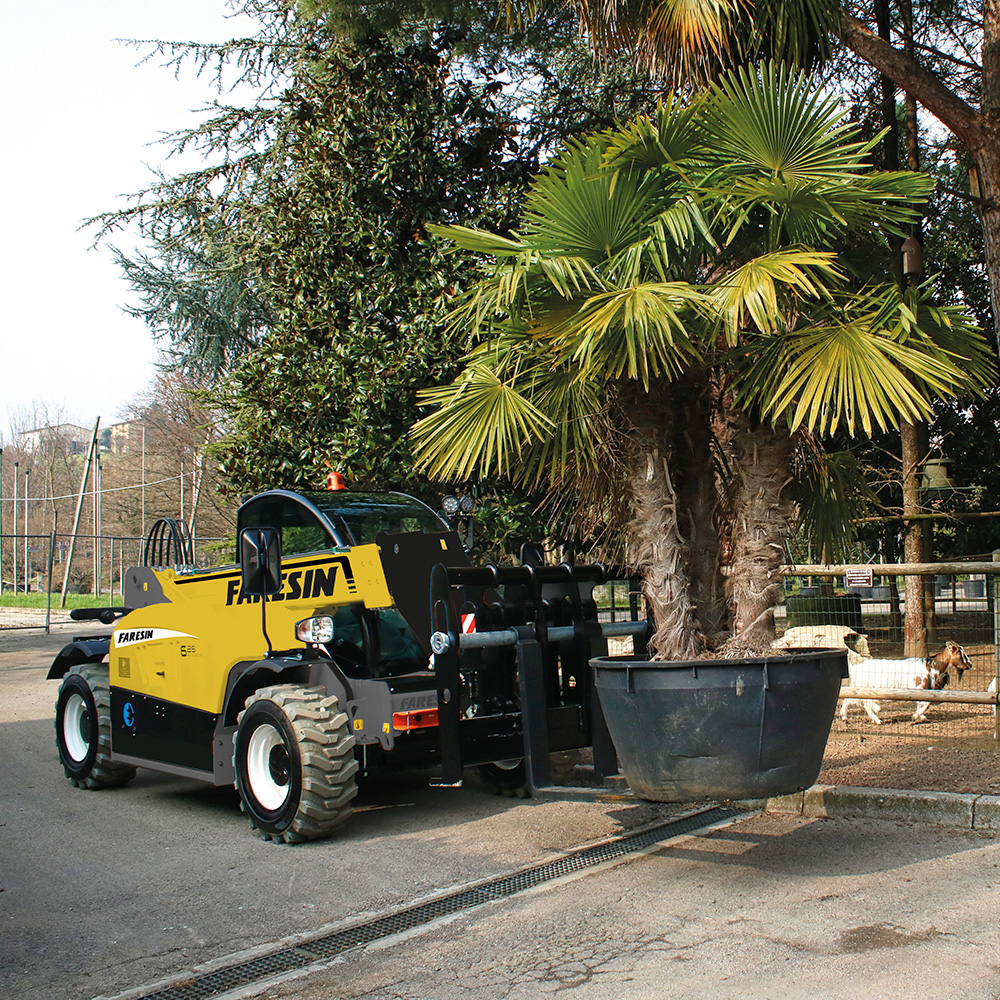

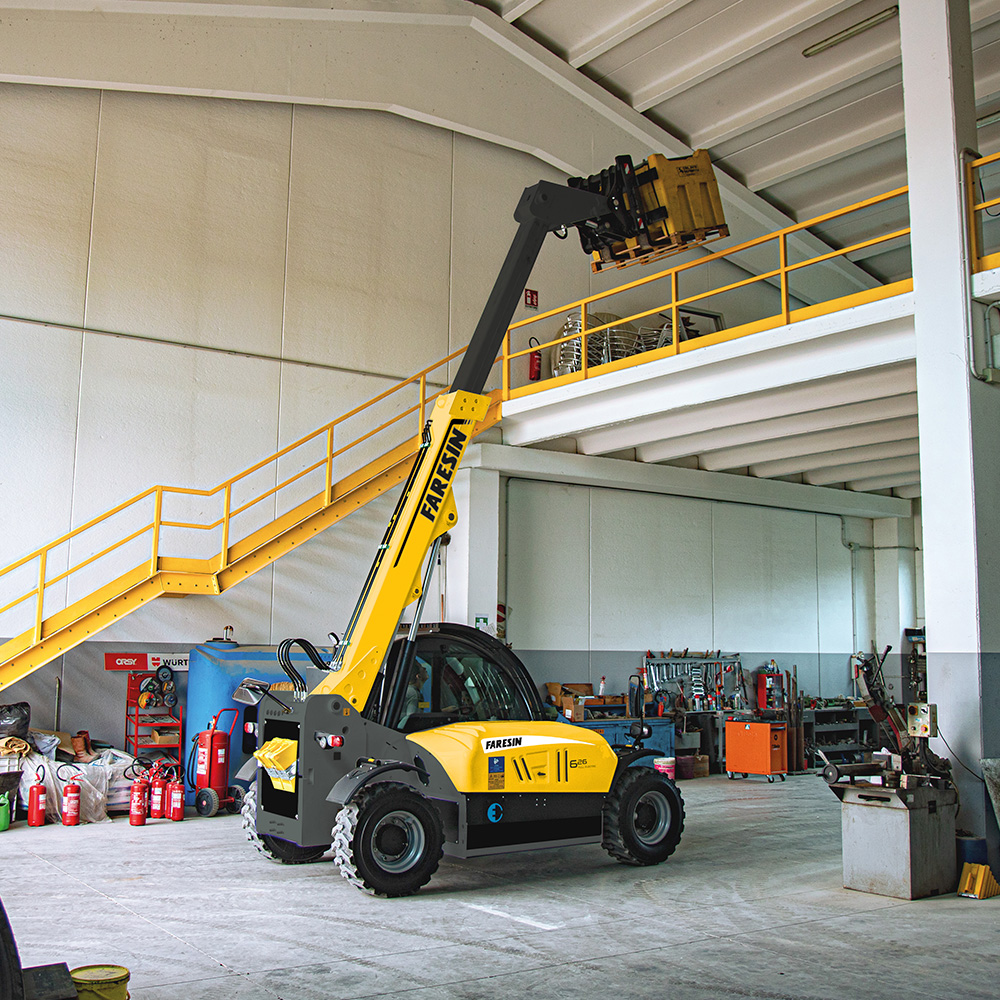

The Full Electric range is particularly well suited to applications where conventional combustion engines may be restricted, including indoor facilities, warehouses, logistics areas, residential areas, greenhouses and noise-sensitive sites. With four-wheel steering and all-wheel drive, the machines retain the manoeuvrability and traction required for a wide range of applications.

Feature photos below are for illustrative purposes only and may vary depending on model.

Read Less

  • Power: Electric
  • purchase_options: Hire, New
Operator Comfort
Quiet Working Environment.

The absence of a combustion engine significantly reduces operating noise, creating a more comfortable environment for operators and surrounding workers.

Ergonomic Queen Cab.

The spacious cab is designed around the operator, with an ergonomic seat, adjustable steering wheel and intuitive controls to provide comfort throughout the working day.

Multifunction Joystick.

The new Joystick fitted to Full Electric Telescopic handlers allows extremely precise movements thanks to the ergonomics of the controls.

Clear Colour Display.

The multifunction colour display provides easy access to key machine parameters, operating information and diagnostic functions.

Comfortable Seating.

A mechanical suspension seat is fitted as standard, with an air sprung Grammer seat for low frequency reaction to irregularities in all types of terrain.

Efficient Climate Control.

Multiple adjustable air vents located in critical points help regulate heating or cooling in the cab and quickly clear accumulated condensate.

Productivity & Performance
Zero Emissions.

The Full Electric range produces zero CO₂ emissions during operation, making it suitable for applications where exhaust emissions are a concern.

Up to 11 Hours Battery Life.

Battery configurations can provide up to 11 hours of operation, depending on the machine and working conditions.

Regenerative Energy Recovery.

Energy generated during braking and when releasing the accelerator is recovered and returned to the battery, helping improve efficiency and battery utilisation.

Four-Wheel Drive & Steering.

All-wheel drive and four-wheel steering provide traction and manoeuvrability across a wide range of working environments.

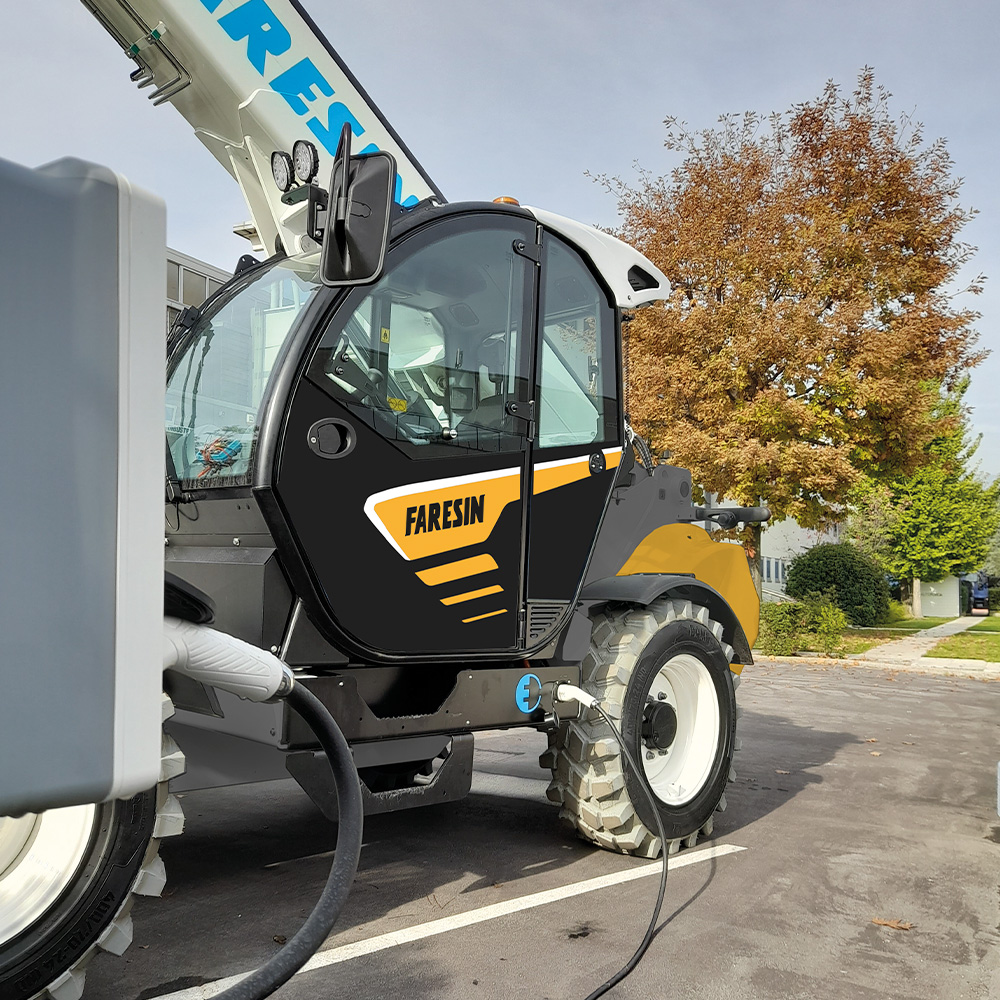

Flexible Charging.

Different charging solutions are available to suit operating requirements, including single-phase, three-phase and fast charging options depending on configuration.

Safety
ROPS & FOPS Certified Cab.

The cab is designed and certified to provide protection for the operator during demanding work.

Differential Lock.

The 45% limited-slip automatic differential lock helps maintain traction and grip during demanding loading operations and challenging conditions.

Anti-Rollover System.

The anti-rollover system helps monitor the machine during lifting operations and supports safe, stable handling when working with heavy loads.

Height Limitation.

Operators can set maximum and minimum boom heights to help avoid obstacles such as low ceilings and overhead structures.

Boom Suspension.

Boom suspension helps cushion boom movements during machine transfers, improving comfort and safety when travelling with or without a load.

Four-Wheel Traction.

The hydrostatic transmission constantly transfers power to all four wheels, helping provide traction and stability when operating across uneven or challenging surfaces.

Battery Thermal Management.

Battery thermal management helps maintain battery temperature within the required range, protecting performance and battery life.

High-Voltage Protection.

High-voltage battery systems incorporate safety controls designed to help protect operators during operation and servicing.

Reduced Noise.

Low operating noise makes the machines particularly suitable for environments where noise levels are restricted or where people are working nearby.

Servicing & Maintenance
Reduced Maintenance.

The absence of a diesel engine eliminates many conventional engine-related maintenance requirements.

Electric Motor Temperature Control.

Motor temperature management helps protect the electric motor and reduce unnecessary maintenance interventions.

Battery Management.

Intelligent battery management and energy recovery systems help optimise battery performance and service life.

Flexible Charging Systems.

A range of charging options allows machines to be configured around different operating schedules and charging requirements.

Farmatics Connectivity.

Faresin’s Farmatics provides remote monitoring and diagnostics to help identify faults, plan maintenance and monitor machine performance.

Specifications



Faresin Full Electric Telehandler 2.6-4.5T – Technical Data.

Model FR 6.26 Full Electric FR 14.42 Full Electric FR 17.40 Full Electric FR 17.45 Full Electric
Max Lifting Capacity 2 600 kg 4 200 kg 4 000 kg 4 500 kg
Lift Height 5.80 m 13.60 m 16.40 m 16.40 m
Maximum Reach 3.20 m 9.75 m 12.60 m 12.6o m
Height 1 935 mm 2 500 mm 2 500 mm 2 560 mm
Width 1 890 mm 2 331 mm 2 331 mm 2 360 mm
Length 4 035 mm 6 370 mm 6 520 mm 6 520 mm
Weight 4 800 kg 11 350 kg 11 600 kg 12 300 kg
Engine Electric motor 25kW Electric motor 45.6kW Electric motor 45.6kW Electric motor 45.6kW
Transmission 4WD 4WD 4WD 4WD

Downloads



Faresin Full Electric Telehandler 2.6-4.5T – Datasheets.

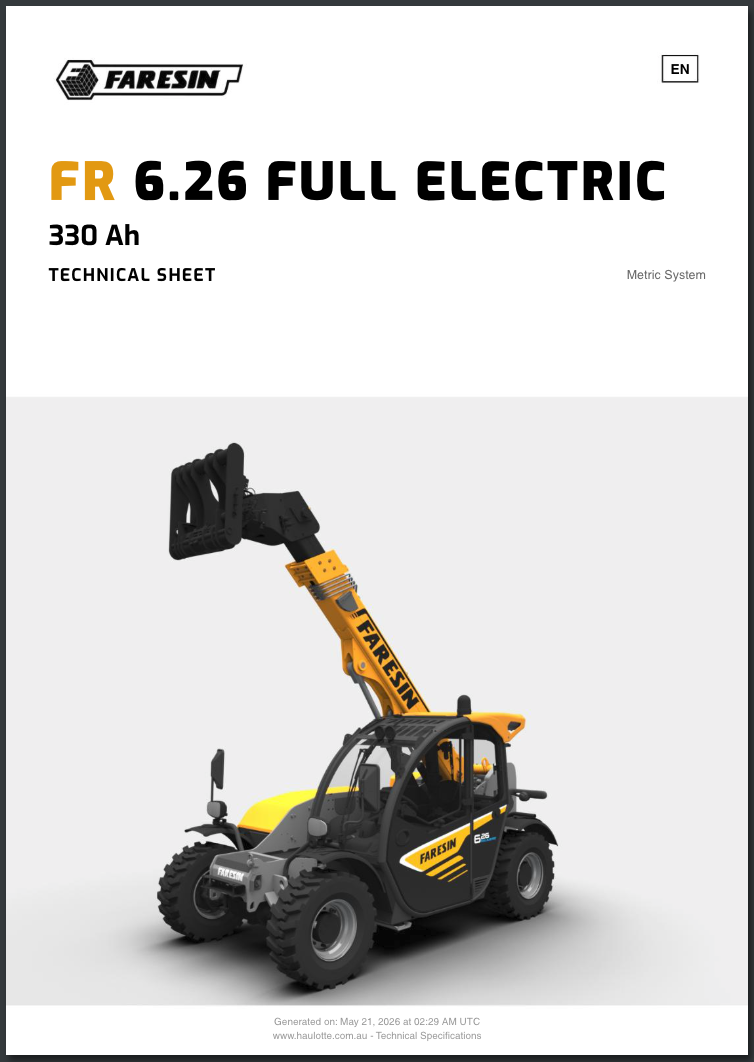

FR 6.26 Full Electric Datasheet.

FR 6.26 Full Electric Datasheet

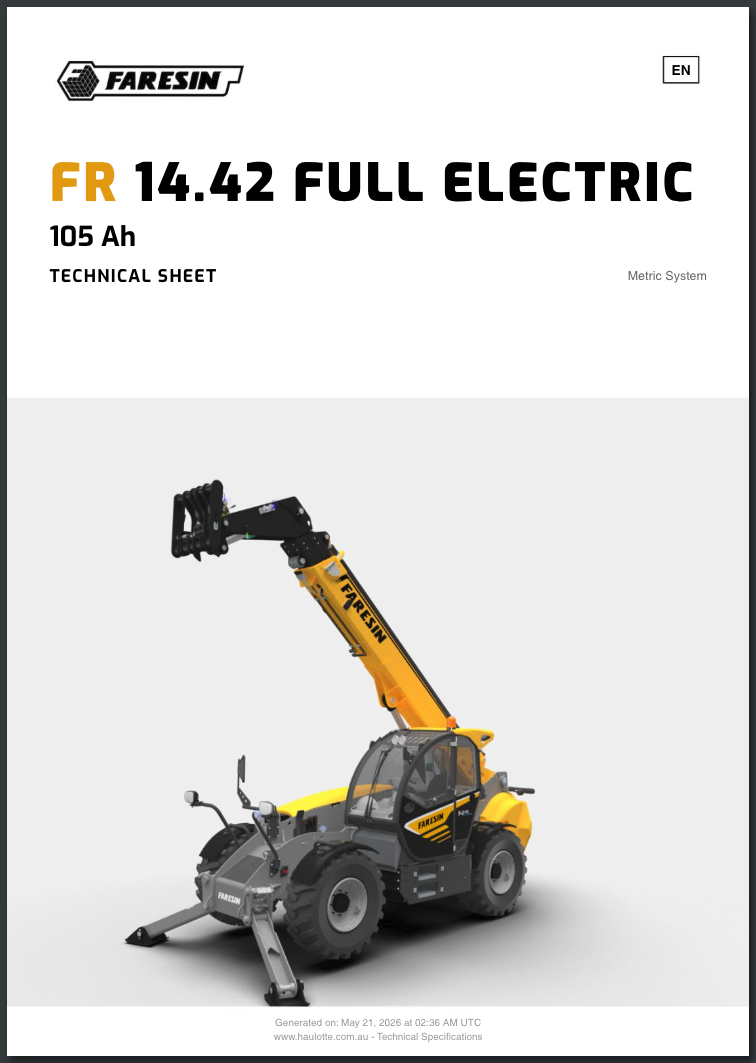

FR 14.42 Full Electric Datasheet.

FR 14.42 Full Electric Datasheet

FR 17.40 Full Electric Datasheet.

FR 17.40 Full Electric

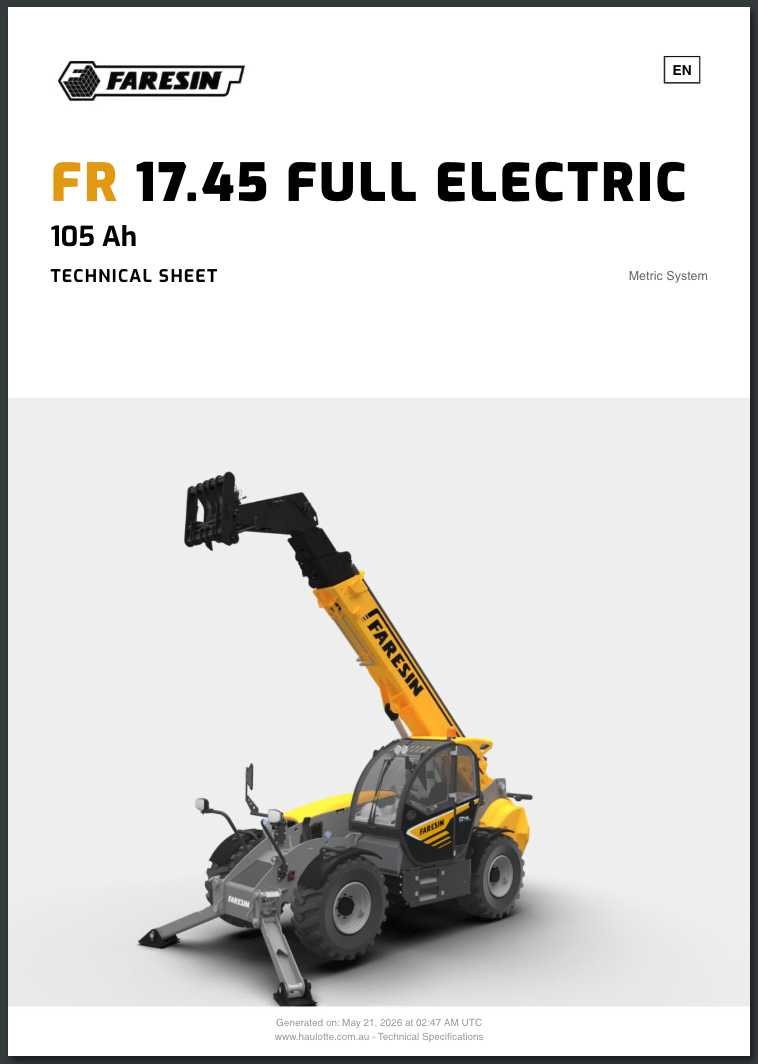

FR 17.45 Full Electric Datasheet.

FR 17.45 Full Electric Datasheet
