Elevah Stock Picker 40B Picking
Price
*
- Foldable electrical picking platform
- 200kg total lift capacity
- Up to 100kg picking tray capacity
- Can work at temperatures between -10° C and +40 °C

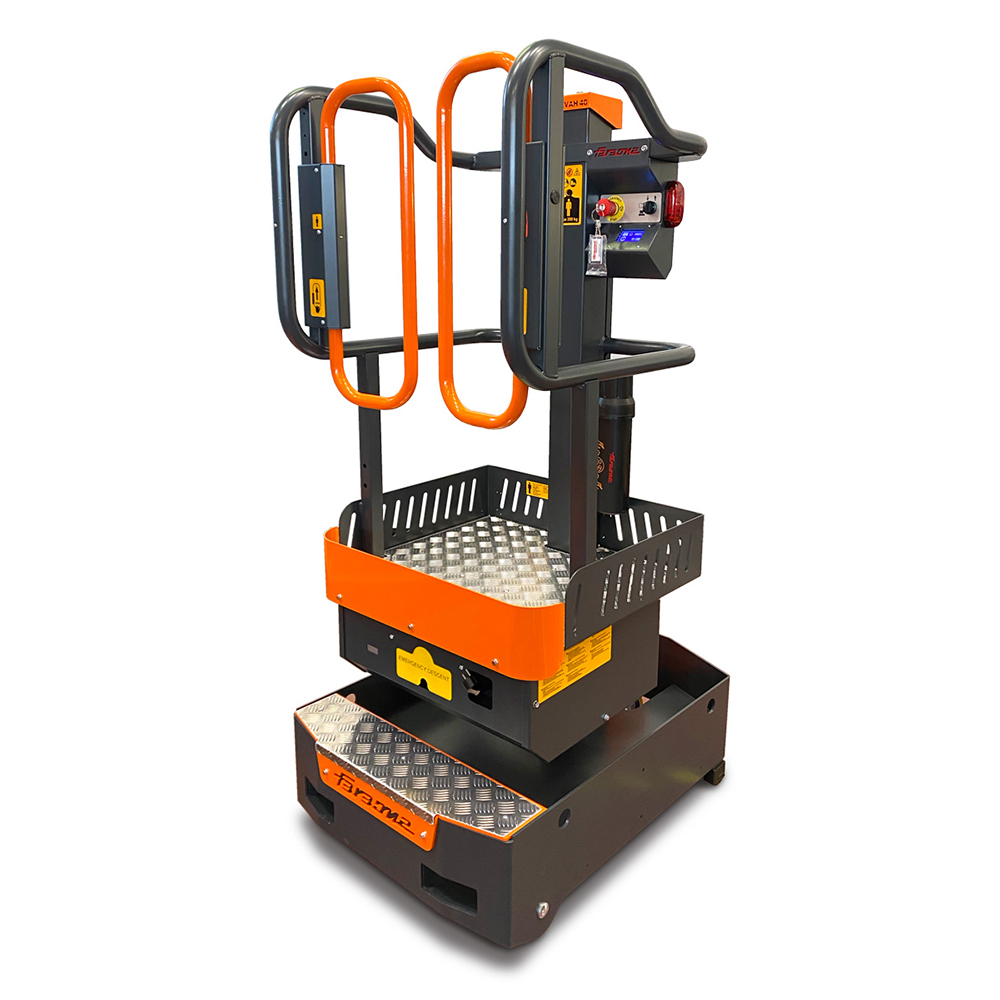

The Elevah 40B Picking is an ultra-compact, push-around machine with automatic lifting, designed to streamline storage operations and warehouse restocking. It is convenient and effective, capable of reaching heights up to 4 meters.

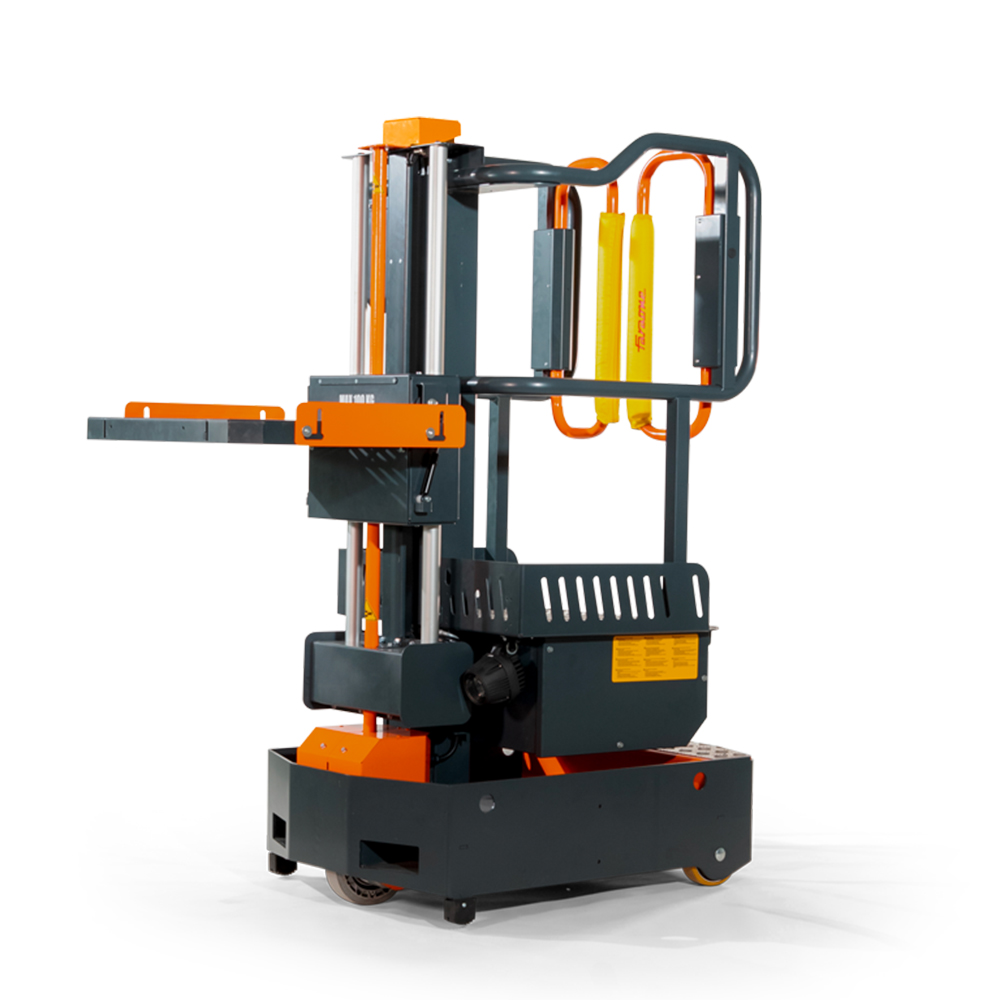

The picking tray, with a maximum load capacity of 100 kg, is electrically adjustable to maintain an ergonomic working position and prevent injuries and strains.
Read More
Operating the machine is straightforward: simply hold the handles and press the buttons to release the brakes for movement. Releasing the buttons engages the brakes to stabilise the machine. Once in position, you can enter the basket and use the controls to adjust to the desired height.
Read Less
- Lift Capacity (kg): 200 kg
- Power: Manual
- Workplace: Both
Specifications
Elevah Stock Picker 40B Picking
| 40B Picking | |
| Max working height | 4.0 m |
| Max lift capacity | 200 kg |
| Workplace | Internal and external |
| Closed machine height | 1730 mm |
| Minimum platform height | 290 mm |
| Maximum platform height | 1950 mm |
| Base overall dimensions | 1000 x 715 x 1425 mm |
| Cage dimensions | 685 x 580 mm |
| Machine weight | 350 kg |
| Driving wheels size | 125 x 35 mm |
| Idle rear wheels size | 150 x 40 mm |
| Picking Platform | |
| Dimensions | 500 x 680 mm |
| Power | Electric |
| Stroke | 700 mm |
| Min. height from the ground* | 850 mm |
| Maximum height from the ground | 2875 mm |
| Capacity | 100 kg |
| Performance | |
| Power supply | 24V |
| Batteries | 2 AGM 12V 45 Ah |
| Battery charger | 115V-230V 50/60 Hz |
| Maximum climbing ability | 15 % |
| Internal turning radius | 0 mm |
| External radius | 860 mm |
| Max. speed (rising – descending) | 0.15 m/s |
| Maximum pressure for wheel at full load** | 1.85 kN |
* There is an intermediate step.
** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are
completely distributed on one side of the platform (totally asymmetric load).
