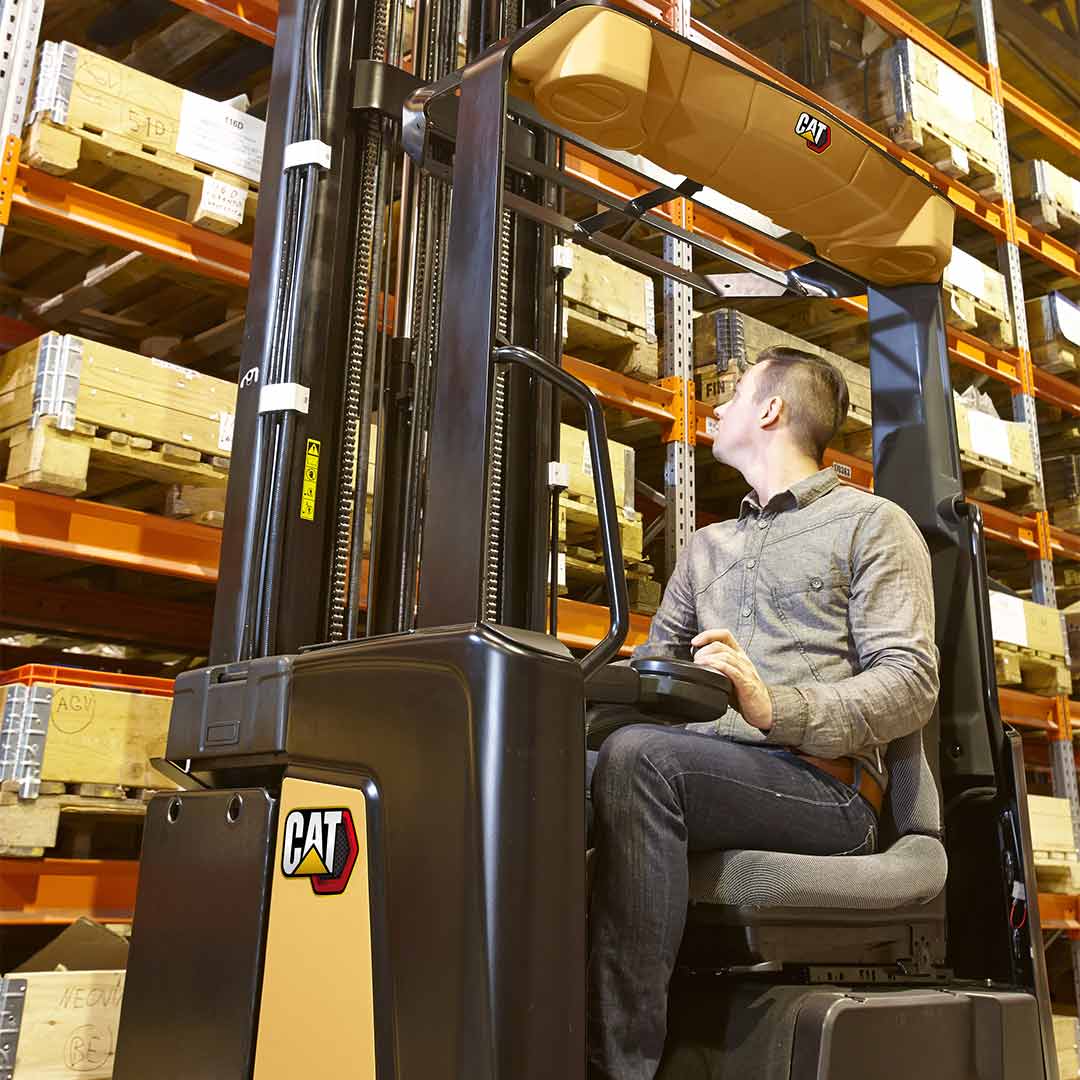

Cat Sit-on Reach Truck 1.4-2.5T NR



  • Spacious operator cabin
  • Fully adjustable controls
  • Excellent visibility
  • Responsive Drive System (RDS)


The Cat sit-on reach truck combines state of the art engineering and a modern style design to create exceptional levels of productivity in warehouse environments. This reach truck is designed for performance and profitability, with a lift capacity ranging between 1.4 to 2.5 tonnes and a lift height of 7500mm to 13000mm.

Read More

The Cat sit-on reach trucks are simple to use and easy to handle, with excellent agility in confined spaces or in busy pedestrian areas. The cab has an adjustable suspension seat, providing the operator with an outstanding degree of comfort, particularly during long-shifts where prolonged sitting is required. As well as superb comfort, the Cat® sit-on reach truck also provides outstanding visibility and the high cab position gives drivers a clear line of sight, making it suitable and safe for use in busy working environments.

These reach trucks include an extensive range of innovative standard features which provide high efficiency, outstanding ergonomics, and low maintenance needs, that are suited for a wide variety of demanding applications.

Read Less

  • Power: Electric
  • purchase_options: Hire, New
  • Workplace: Both
Operator Comfort
Excellent Workspace

The reach trucks wide and protected cabin with inbuilt step and ergonomic grab handle allows for easy and unobstructed entry. The adjustable seat with suspension and easy to reach controls provide maximum levels of comfort for the operator.

The reach trucks wide and protected cabin with inbuilt step and ergonomic grab handle allows easy and unobstructed entry.

Ergonomic Pedals

The low-lying angle of the pedals effectively reduces strain in the ankles by allowing the operator to rest his heels on the floor. This in combination with passive and regenerative braking from the accelerator and brake pedals allows for smoother operation and comfort.

Comfortable Seat

The reach truck includes a contoured, full suspension seat for maximum comfort. Operators can adjust the position, weight, and lumbar support to suit their ideal seating position.

Electronic Parking Brake

An electronic parking brake switch allows the operator to effortlessly apply the brake compared to standard braking levers. Easily push the button down to apply and pull the button up to disengage the brake.

Productivity & Performance
Powerful Lifting Capacities

This high capacity lifting together with excellent visibility ensures optimal productivity and performance. The reach trucks high mast strength and stiffened chassis produces class leading capacity retention at full heights.

LCD Display

Monitor the forklifts critical systems to improve safety and efficiency using the LCD display. The display quickly allows to run diagnostics and troubleshooting which helps reduce maintenance costs and minimise downtime.

Responsive Drive System

The automated safety Responsive Drive System (RDS) combines advanced mast handling, stability enhancements and mast sway minimisation to effectively protect the operator. It also includes a choice of fully programmable or user selected modes to suit the task and operator.

Dead Man Pedal

Is an added safety feature which prevents truck operation unless depressed by the weight of the operators left foot, and ensures the leg always stays in the truck during operation.

PDS+ Safety

The Presence Detection System Plus (PDS+) improves safety by automatically locking all forklift operations when an operator has left the seat. This feature complies with Australian Standards and helps eliminate accidents caused by unexpected movements whilst off the forklift.

Operator Access Code (PIN)

An operator access code is a standard feature available on the forklift. The forklift can be setup with a custom PIN code to control unauthorised use of the forklift which improves safety.

Servicing & Maintenance
Easy accessibility to engine

Access to the engine and important components is quick and easy with the forklifts rear hinged hood. The hood does not require specialty tools to open allowing for quick inspection thus improving uptime and lowering maintenance.

Extended 500 Hour Service Intervals

Due to the durable engine and quality components, the service intervals have been increased from 200 to 500 hours. This efficiently drives down preventative maintenance time and costs over the life of the forklift.


Cat Sit-on Reach Trucks NR

Model Capacity (kg) Load Centre (mm) Wheelbase (mm)
NR14N2S 1400 600 1300
NR14N2HS 1400 600 1300
NR16N2S 1600 600 1300
NR16N2HS 1600 600 1300
NR16N2 1600 600 1350
NR16N2H 1600 600 1350
NR16N2C 1600 600 1400
NR16N2HC 1600 600 1400
NR20N2H 2000 600 1500
NR20N2X 2000 600 1500
NR25N2X 2500 600 1500
