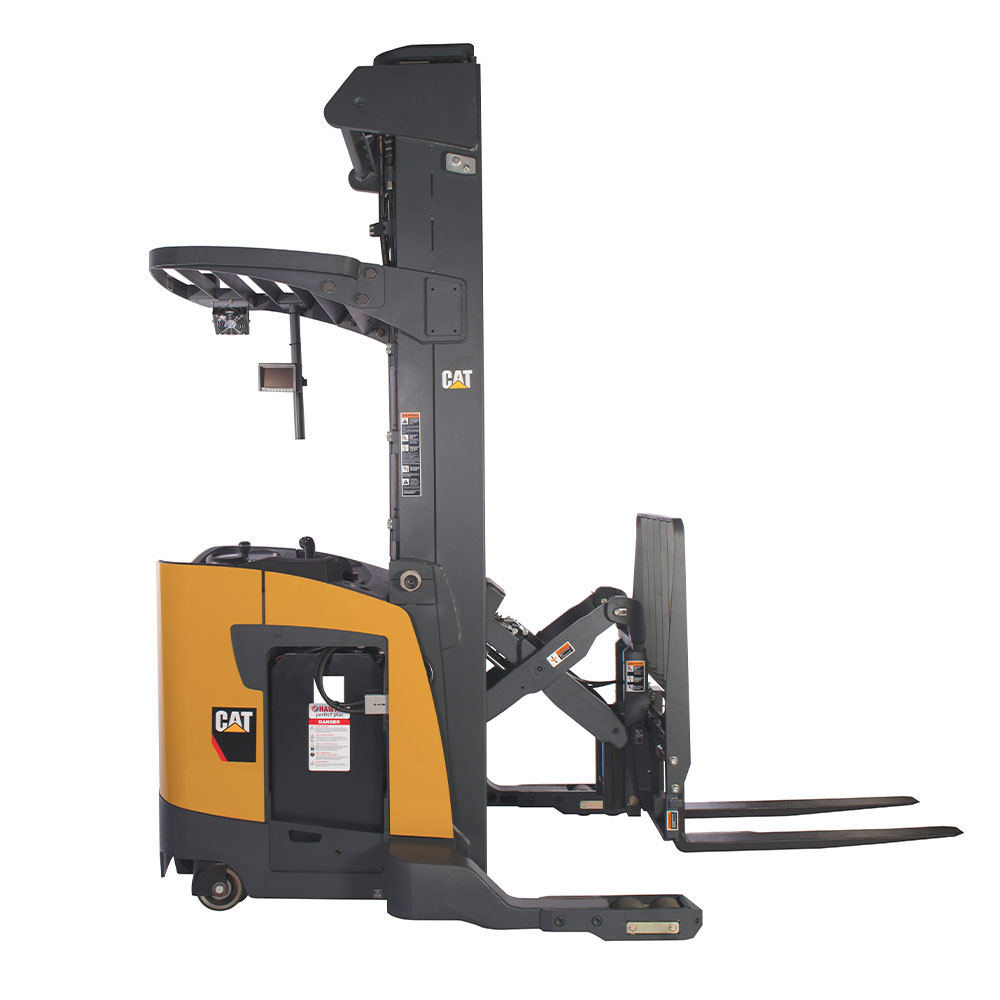

Cat Pantograph Reach Truck 1.5-2.0T



  • Single and double reach models
  • Efficient handling and confident control
  • Excellent ease of use
  • Stability enhancing features


The Cat pantograph reach trucks feature industry-leading lift speeds and superior load handling at high lift heights up to 11 meters. Providing even greater efficiency at height with increased run times, efficient handling, and confident control.

Read More

The controls on the Cat pantograph reach truck make it easy to handle large loads with confidence and efficiency with a multifunctional control handle to allow for simultaneous operation of travel and hydraulic functions. This remarkable reach truck is designed for comfortability and ease of use by providing ergonomic features, such as a low-entry step, arm and knee cushions, an adjustable seat, and an automatic parking brake. With a variety of configurations equipped with auto speed reduction and AC motors that drive higher performance levels while consuming less energy, the Cat pantograph reach truck has been designed to provide efficient handling and performance from low to high lift heights.

Single and double reach masts are available on the Cat pantograph reach truck. Single reach models are ideal for moving loads on and off a single pallet rack, whereas the double deep reach models offer the ability to stack pallets on two pallet racks deep. Picking which model will ultimately depend on your existing warehousing and racking layout.

There are other features that make the Cat pantograph trucks work well for you too, including an ergonomic design, stability-enhancing features, AC motors, sealed components, and advanced regenerative braking.

Read Less

  • Height (Lift / Working) (m): 11.40 m
  • Power: Electric
  • purchase_options: Hire, New
  • Workplace: Both
Operator Comfort
Spacious Cabin

The cabin of a reach truck is wide and protected, with an ergonomic step built in for easy access. The suspension seat can be adjusted to suit the driver's comfort, and controls are positioned for convenience.

Ergonomic Pedals

The angle of the pedal on the reach trucks helps your heels stay on the floor, which makes it less stressful for your ankles. When you press the pedals, there is passive and regenerative braking from the accelerator and brake pedals. This will make it easier for you to operate and will be more comfortable.

Adjustable Seat

The reach truck has a contoured, full suspension seat for maximum comfort and operators can adjust the position, weight, and lumbar support to suit their ideal seating position.

Electronic Parking Brake

An electronic parking brake switch makes applying the brakes straightforward with a simple push of the button, making it easier to apply than standard braking levers.

Productivity & Performance
Impressive Lifting Capacities

These lift trucks produce excellent visibility and optimal productivity. Their high mast strength and stiffened chassis ensures class leading capacity retention at full heights.

Adjustable Controls

The steering console can be angled horizontally, up, or down to meet the needs of any operator. The armrest and fingertip controls allow for excellent support when in use as well as greater mobility.

LCD Display

The LCD display on the forklift quickly runs diagnostics and troubleshooting, which helps reduce maintenance costs and minimise downtime.

Responsive Drive System

The Responsive Drive System (RDS) protects operators by combining stability enhancements with mast handling and minimising sway. The system also provides a combination of fully programmable or user selected modes to suit the task at hand.

Dead Man Pedal

The dead man pedal is an added safety feature that prevents the truck from moving unless pressure is applied to the pedal, ensuring the operators legs stay in the reach truck while it's in motion.

Soft Landing

Using a forklift equipped with two-stage simplex masts also includes a unique feature that will slow down the forks as they come close to hitting the ground. This helps protect goods from hard falls or shocking damage. This also reduces wear and tear on the forks, resulting in less maintenance costs or replacements required.

PDS+ Safety

The Presence Detection System Plus (PDS+) automatically locks the forklift when an operator exits the seat. This helps reduce accidents and complies with Australian standards.

Servicing & Maintenance
Easy accessibility to engine

The efficient rear hatch of the forklift provides easy access to the engine and other important components. The hood is easy to open, which eliminates having to use a specialized tool that can be time-consuming and reduces downtime while lowering maintenance.

Extended 500 Hour Service Intervals

The service intervals of the lift have been changed from 200 to 500 hours. This will save money on maintaining the forklift and significantly increase its life span.


Cat Pantograph Reach Trucks

Model Capacity (kg) Load Centre (mm) Wheelbase (mm)
NR20 – Single Reach 1810 600 1562
NR23 – Single Reach 2040 600 1562
ND18 – Double Reach 1580 600 1562


Cat Pantograph Reach Trucks Brochure

Cat Pantograph Reach Trucks Brochure
