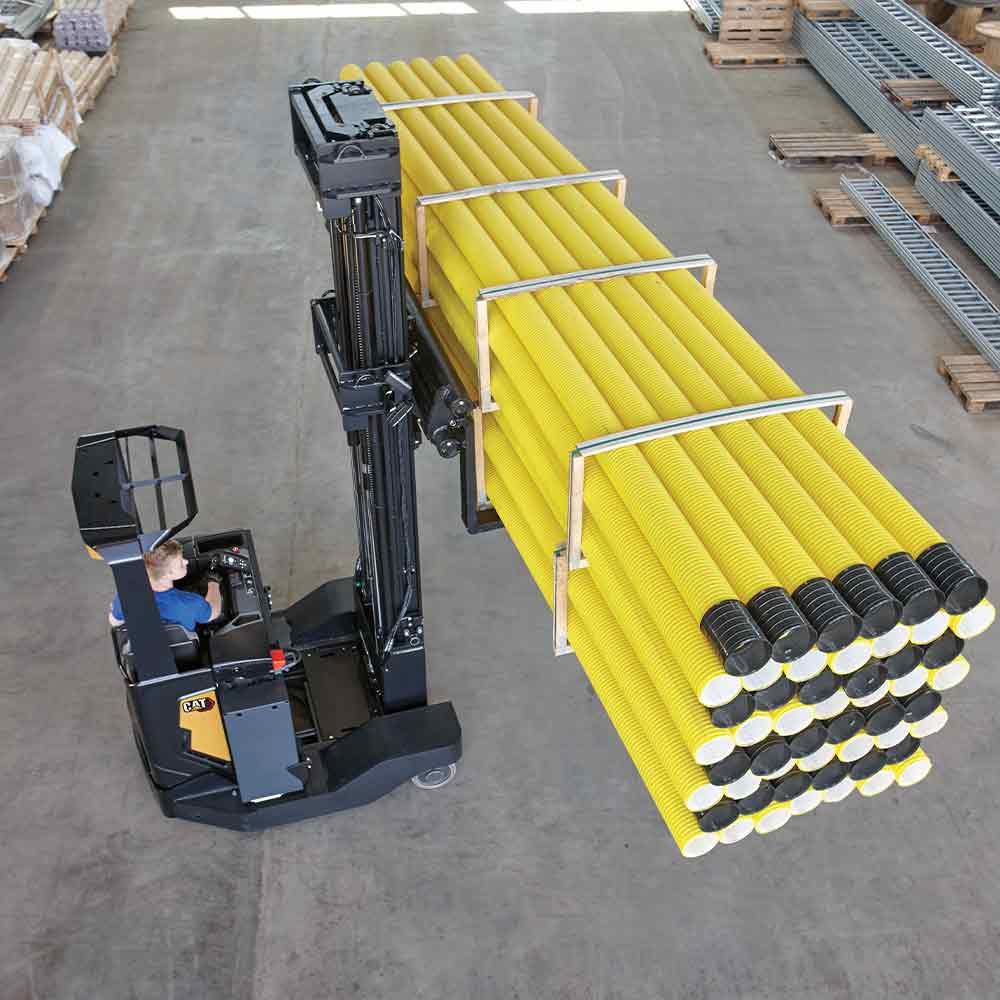

Cat Multi-way Reach Truck 2.0-2.5T



  • 360° multi-directional travel
  • Travel between narrow aisles or low headroom areas
  • Longer platform length provides better stability, load capacity and safety
  • Unmatched speed and manoeuvrability


Narrow aisle reach trucks are a popular choice for many warehouses. They often operate in tight spaces and can be challenged with long loads too. The Cat multi-way reach truck range includes the ergonomic, performance, durability advantages of the standard reach truck range and adds extra flexibility and multi-directional travel to its capabilities.

Read More

Six modes can be selected: forward/reverse, sideways, diagonal, rotational, agile cornering, and automatic transition between normal and lateral. With an all-wheel synchronised steering system with an ergonomic fork positioner, these multi-way reach trucks provide impressive performance in narrow aisle applications while still allowing for precise handling of loads.

Available in 2.0 and 2.5 tonne models, these reach trucks are the best in their class for handling general goods to steel sheets, pipes and much more.  Each wheel has an independent steering motor and brake system so that the reach truck can turn 360 degrees in either direction with unmatched speed and manoeuvrability.

Multi-way reach trucks can be incorporated within existing warehouse layouts to optimise storage and handling efficiency. Their unique design will fit into a standard parking space, even where narrower aisles are required.

Read Less

  • Height (Lift / Working) (m): 10.00 m
  • Power: Electric
  • purchase_options: Hire, New
  • Workplace: Both
Operator Comfort
Excellent Workspace

The reach trucks have a spacious cabin with an inbuilt step and ergonomic handle, allowing for easy unobstructed entry. The adjustable seat, along with easy to reach controls provides maximum levels of comfort for the operator.

Ergonomic Pedals

The pedals are designed for minimal strain during use. Coupled with regenerative braking and smooth acceleration, this ensures maximum comfort at all times.

Comfortable Seat

The reach truck's ergonomic seat provides maximum comfort. The operator can adjust the position, weight, and lumbar support to suit personal preference.

12 Degree Tilt Steering Column

The 12-degree tilt steering column gives the operator an appropriate driving position and as a result is more comfortable. The tilting neck is also spring assisted for easy control of the tilt angle.

Electronic Parking Brake

An electronic parking brake switch allows for effortless application of the brake. Press down to apply and pull up to release.

Productivity & Performance
Powerful Lifting Capacities

The reach trucks have a high strength mast and a rigid chassis, allowing for class-leading capacity, even at maximum heights.

Adjustable Controls

The armrest and fingertip controls provide excellent support for hand positioning and allows for more mobility. The operator can also adjust the steering console horizontally, up, or down, ensuring they’re in the most comfortable working position.

LCD Display

Improve safety and efficiency by using the LCD display to monitor the forklift critical systems. The display can quickly run diagnostics and troubleshooting which helps reduce maintenance costs and minimise downtime.

Responsive Drive System

The automated safety Responsive Drive System (RDS) combines advanced mast handling, stability enhancements and mast sway minimisation to effectively protect you from a fall. Advanced features including programmable, or user selected modes allow for increased customisability depending on the task at hand.

Dead Man Pedal

The dead man pedal is an added safety feature which prevents truck operation unless depressed by the weight of the operators left foot, and ensures the leg always stays in the truck during operation.

Soft Landing

Forklifts equipped with two stage simplex masts include a unique feature which slows down the forks as they approach the ground. This helps protect goods from hard drops or shock causing damage. This also reduces wear and damage to the forks.

PDS+ Safety

The Presence Detection System Plus (PDS+) improves safety by automatically locking all forklift operations when an operator has left the seat. This feature complies with Australian Standards and helps eliminate accidents caused by unexpected movements whilst off the forklift.

Operator Access Code (PIN)

An operator access code is a standard feature available on the forklift. The forklift can be setup with a custom PIN code to control unauthorised use of the forklift which improves safety.

Servicing & Maintenance
Easy accessibility to engine

Access to the engine and important components is quick and easy with the forklifts rear hinged hood. The hood does not require specialty tools to open allowing for quick inspection thus improving uptime and lowering maintenance.

Extended 500 Hour Service Intervals

Due to the durable engine and quality components, the service intervals have been increased from 200 to 500 hours. This efficiently drives down preventative maintenance time and costs over the life of the forklift.


Cat Multi-way Reach Truck

Model Capacity (kg) Load Centre (mm) Wheelbase (mm)
NRM20N2 2000 600 1552
NRM25N2 2500 600 1552
