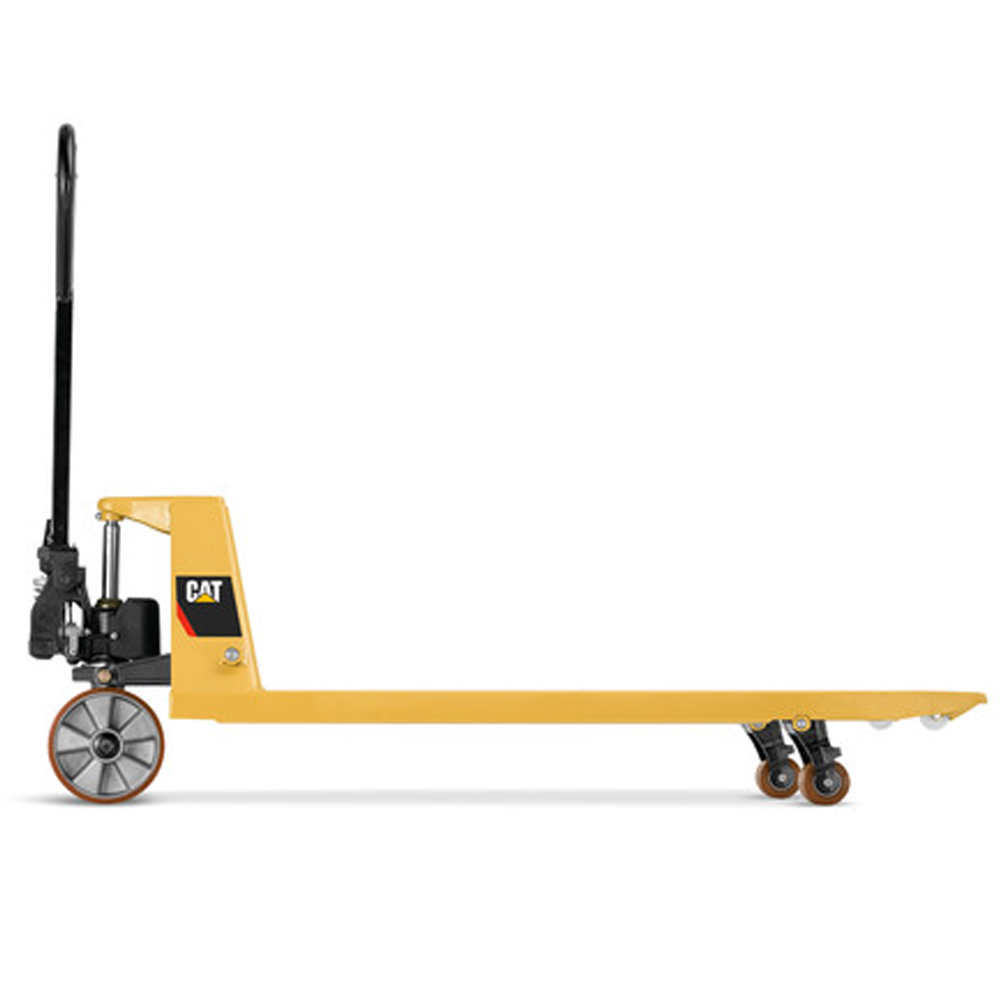

Cat Manual Hand Pallet Truck 2.0 Tonne



  • Heavy duty frame
  • Quality construction
  • Easy maintenance
  • 6 months warranty


Cat hand pallet trucks, or hand pallet jacks, have been engineered to provide long lasting strength and versatility. These light and portable pallet jacks are capable of lifting approximately 2,500kg making them an essential piece of equipment in any warehouse. The hand pallet trucks are available in both a standard and narrow model. Both models offer the same fork length and lift capacity, but the narrow models’ short fork width make it ideal for smaller warehouses and narrow aisles.

  • Height (Lift / Working) (m): 0.195 m
  • Power: Manual
  • purchase_options: New
  • Workplace: Both
Operator Comfort
One Piece Pump

The cast iron one piece pump is easy for the operator and features a controlled lowering rate valve which helps to reduce product jarring. The use of a chrome-plated piston also provides a longer pump life.


Ergonomic Handle

The ergonomic handle design reduces fatigue and improves productivity. The handle features a neutral setting for easy manoeuvring and a return spring which returns the handle to an upright position when released.

Productivity & Performance
Rugged Design

The steel entry brackets combined with rollers offer durability and easy entry. Adjustable pushrods on reinforced C-channel forks also resist twisting under heavy loads.


High Quality Wheels & Rollers

The pallet jacks steer and load wheel construction features low resistant polyurethane for smooth performance and handling. The roller system also provides trouble-free pallet entry and exit.

Lower Cost
Quality Construction

Cat hand pallet jacks have been engineered from thick steel with outstanding finishing. The frame features temperature controlled robotic welds and powder coating which provides strength and additional protection. This quality construction extends the equipment life and reduces costs.

Servicing & Maintenance
Easy Grease Points

The service life of these Cat hand pallet jacks are extended through the eight well positioned grease fittings points. These points allow easy access for continued lubrication of critical moving parts and load points.



All Cat hand pallet trucks are covered by a six month warranty which includes parts and labour.


Cat Manual Hand Pallet Truck

Model Capacity (kg) Width (mm) Raised Height (mm)
A990080030 2500 686 195
A990080060 2500 527 195
