Athena Bi-levelling Tracked Scissor Lift 1090
Price
*
- Operate on rough terrain and 20-degree slopes
- Wide platform suitable for two operators
- Petrol, diesel, or electric powered models
- Outstanding stability

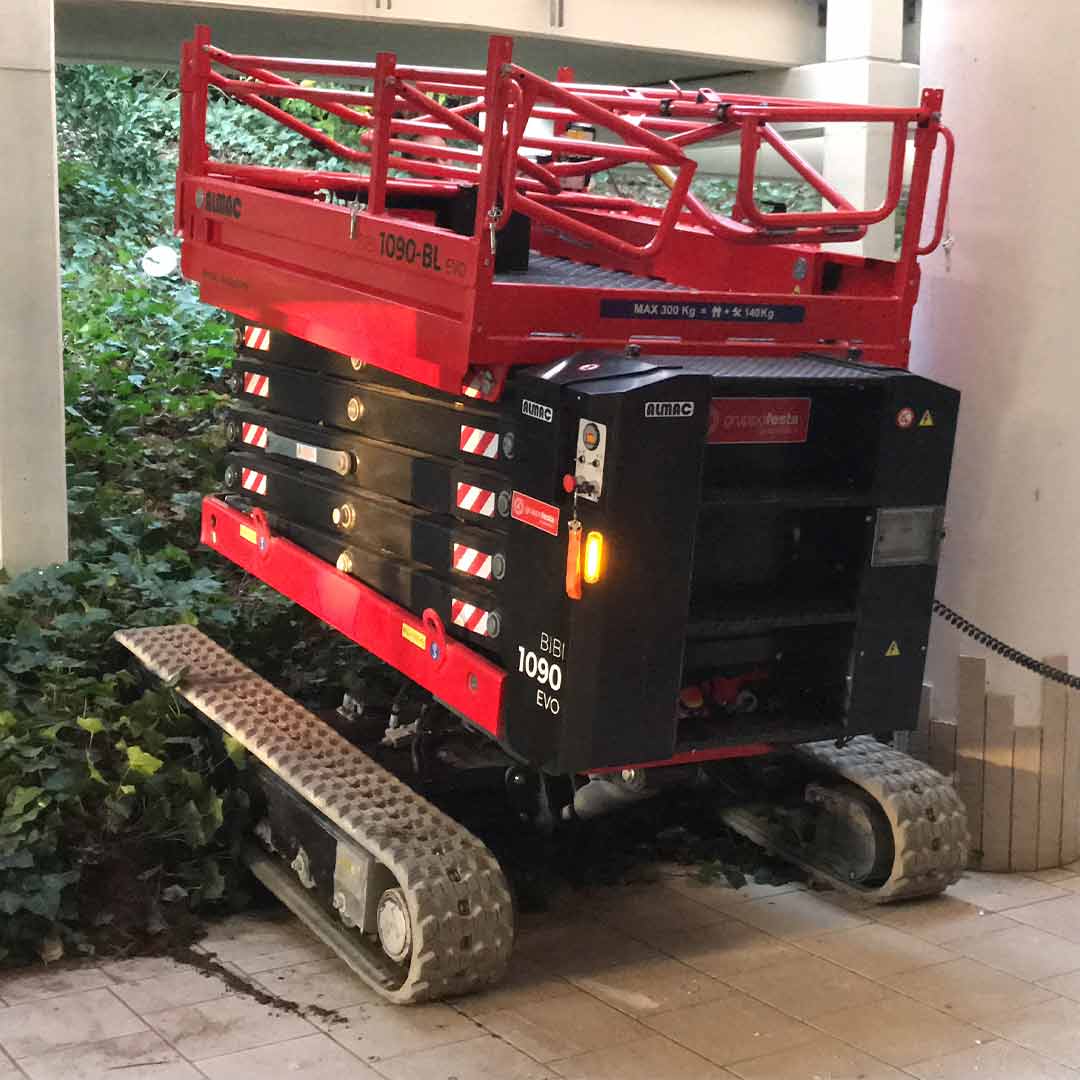

The Athena 1090 is a powerful tracked scissor lift featuring outstanding bi-levelling technology, capable of operating on tough terrain and steep slopes of up to 20 degrees. The maximum lift height of 10 metres and 1.8-metre-wide platform makes it suitable for two operators or up to 300kg in weight. The platform can also extend to 2.9-metres-wide to further increase space.
Read More
This scissor lift provides the perfect combination of outstanding stability and excellent manoeuvrability, making it suitable for any application from construction sites to agricultural operations. The Athena 1090 comes in three models: the 1090 EVO, 1090 Bi-Energy and 1090 ELC. The EVO model includes a high-powered Kubota diesel engine, which provides substantial power when you need it most while reducing emissions and impact on the environment. The Bi-Energy model includes the features of the EVO but is powered by a Honda petrol engine and an electric lithium power pack. This hybrid system offers excellent fuel economy compared to the diesel engines. The ELC model is powered by an impressive electric battery with 9 hours of autonomy.
Read Less
- Lift Capacity (kg): 300 kg
- Power: Diesel, Hybrid
- Workplace: Both
Specifications
Athena Bi-levelling Tracked Scissor Lift 1090
| 1090 EVO | 1090 ELC | 1090 BI-ENERGY | |
| Basket capacity | 300 kg | 300 kg | 300 kg |
| Max working height | 10.0 m | 10.0 m | 10.0 m |
| Max height basket floor | 8.0 m | 8.0 m | 8.0 m |
| Moving height | 6.5 m | 6.5 m | 6.5 m |
| Powered (standard) | Kubota Z602 (12.5kW) | Lead Crystal battery power pack 180Ah-48V | Diesel Hatz 1b40 |
| Powered | – | – | Lithium power pack 100Ah 48-V |
| Autonomy | – | 9 hours | – |
| Recharging time | – | 5h (40 Ah) – 10h | 3h (40Ah) – 6h |
| Accelerator | Automatic | – | Automatic |
| Undercarriage | Bi-levelling | Bi-levelling | Bi-levelling |
| Longitudinal levelling front | + / – 15 ° | + / – 15 ° | + / – 15 ° |
| Longitudinal levelling rear | + / – 20 ° | + / – 20 ° | + / – 20 ° |
| Lateral levelling | + / – 14 ° | + / – 14 ° | + / – 14 ° |
| Power generator (option) | 220 V – 1 kW | – | 220 V – 1 kW |
| Power generator (option) | 220 V – 2.2 kW | 220 V – 2.2 kW | – |
| Hydraulic commands | Proportionals | Proportionals | Proportionals |
| Dynamic levelling system | Yes | Yes | Yes |
| Pro-active levelling system | Yes | Yes | Yes |
| Direction-control system | Yes | Yes | Yes |
| Easy-drive system | Yes | Yes | Yes |
| Kit for high speed | Max 2.7 km/h | Max 2.20 km/h | Max 2.40 km/h |
| Ground emergency | Yes | Yes | Yes |
| Control of inclination | Automatic | Automatic | Automatic |
| Gradeability | 25 ° | 25 ° | 25 ° |
| Side slope | 21 ° | 21 ° | 21 ° |
| Length | 2.28 m | 2.27 m | 2.27 m |
| Width | 1.46 ÷ 1.64 m | 1.46 ÷ 1.64 m | 1.46 ÷ 1.64 m |
| Minimum machine height with folded railings and narrow tracks | 2.42 (2.08) m | 2.42 (2.08) m | 2.42 (2.08) m |
| Minimum machine height with folded railings and wide tracks | 2.09 (1.75) m | 2.09 (1.75) m | 2.09 (1.75) m |
| Total weight | 2830 kg | – | 2900 kg |
| Total weight without electric | 2860 kg | 3060 kg | – |
| Total weight with electric pump | 2890 kg | 3090 kg | – |
| Compliance | EN 280: 2015 | EN 280: 2015 | EN 280: 2015 |
