Haulotte-Quick-Up-8-14DC from United Forklift and Access Solutions Australia
haul

Access Equipment

SKU: N/A Categories: ,

Haulotte Quick Up 8-14DC

Price

*

  • Compact and convenient design
  • Easily transportable
  • Includes non-marking wheels
  • Fast and simple setup with stabilising outriggers

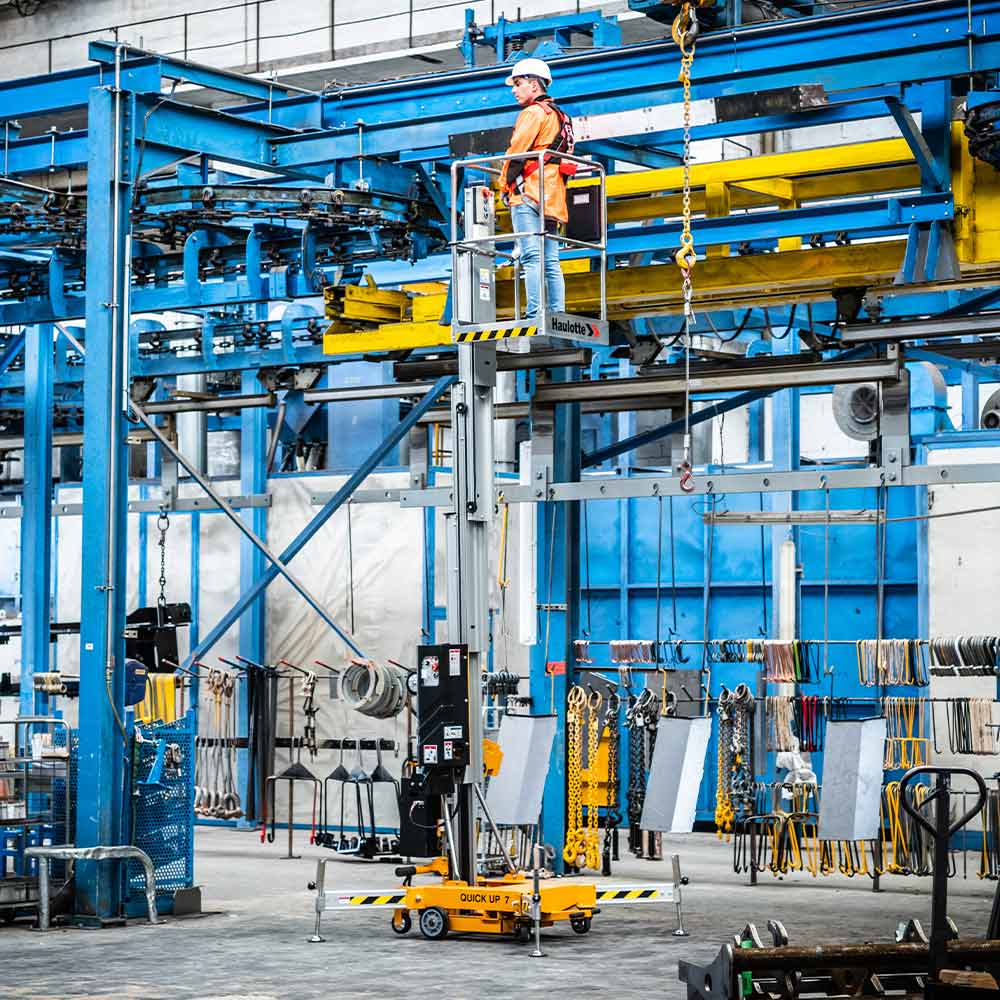

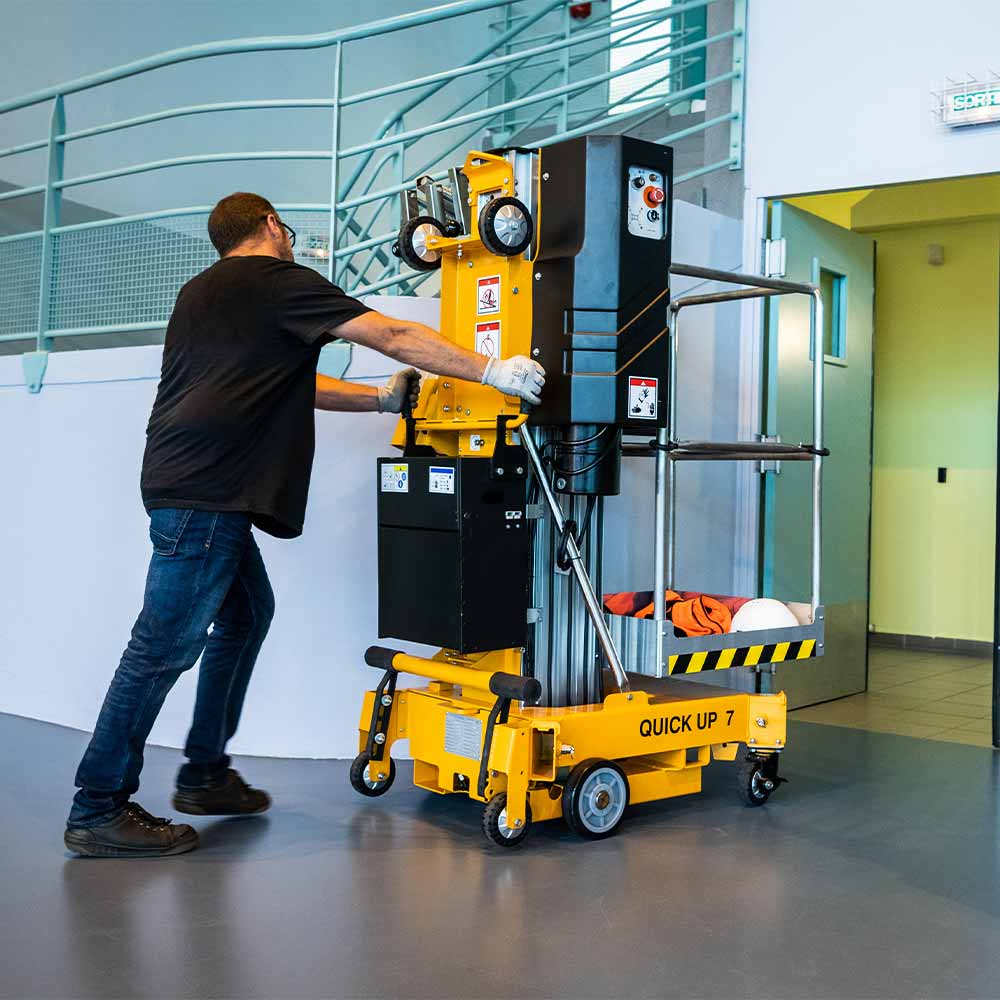

The Haulotte Quick Up is a perfect light weight, push-around boom lift for any business. Their convenient compact size with an 80cm width allows them to be pushed through standard doorways and congested areas easily. They can also be transported on trailers or vehicles, including vans and utes, and they can be set up very quickly by one person.

Read More

The Quick Up has a maximum lift height of 6.10 to 11.70 metres and a maximum lift capacity of 136 to 159 kilograms. The durable design of the stabilising outriggers ensures reliable and safe operation, and they are equipped with a rubber sole to protect the floor surface onsite. The Haulotte Quick Up also include non-marking tyres, as well as a range of other safety features including emergency control, a manual valve for lowering the platform and stability indicators.

The Haulotte Quick Up is ideal for those jobs that require a small and easy to use lift. They can be used in warehouses, factories, shopping centres, schools, hospitals, and residential complexes and are perfect for indoor installations and maintenance tasks.

Read Less

  • Lift Capacity (kg): 136 kg, 159 kg
  • Power: Electric
  • purchase_options: Hire, New
  • Workplace: Both
Add to Quote
Operator Comfort
Push button controls

The Haulotte Quick Up is easy to use thanks to its push button controls.

Productivity & Performance
Integrated forklift pockets

The Quick Up has integrated tyne pockets for easy transportation using a forklift.



Non marking tyres

Non-marking tyres offer increased traction, and they avoid leaving marks on hard indoor surfaces.



Lifting eye

The Quick Up has a lifting eye which allows a lifting chain to be attached.

Safety
Emergency control

The emergency control button can be used to stop the lift instantly, even if it is moving.



Manual Valve

The manual valve can be used to lower the platform in case of emergencies.



Harness attachment point

An accessible attachment point for a harness is available on the platform.



Stability Indicators

The control box will light up and confirm whether the stabilisers are positioned correctly.

Specifications

Haulotte Quick Up 8-14DC

  QUICK UP 8 QUICK UP 11 QUICK UP 12 QUICK UP 14
Working height 8.1 m 10.8 m 12.3 m 13.7 m
Platform height 6.1 m 8.8 m 10.3 m 11.7 m
Lift capacity 159 kg 159 kg 136 kg 136 kg
Platform size 0.68 x 0.66 m 0.68 x 0.66 m 0.68 x 0.66 m 0.68 x 0.66 m
Length 1.28 m 1.34 m 1.40 m 1.47 m
Width 0.80 m 0.80 m 0.80 m 0.80 m
Height – stowed 1.98 m 1.98 m 1.98 m 1.98 m
Width – stabilised 1.55 m 1.55 m 2.06 m 2.34 m
Length – stabilised 1.75 m 1.75 m 2.26 m 2.70 m
Tilt bar 2.08 x 0.8 x 1.78 m 2.14 x 0.8 x 1.88 m 2.20 x 0.8 x 1.94 m 2.24 x 0.8 x 1.98 m
Energy (AC) 230 V 230 V 230 V 230 V
Weight (AC) 340 kg 380 kg 415 kg 455 kg
Energy (DC) 12 V 12 V 12 V 12 V
Weight (DC) 382 kg 422 kg 457 kg 497 kg
