Access Equipment

Elevah Stocker Picker E5 Move Picking



  • Impressive 5.15 m working height
  • Spacious work platform
  • Compact width of 700 mm
  • Exceptional steering and manoeuvrability

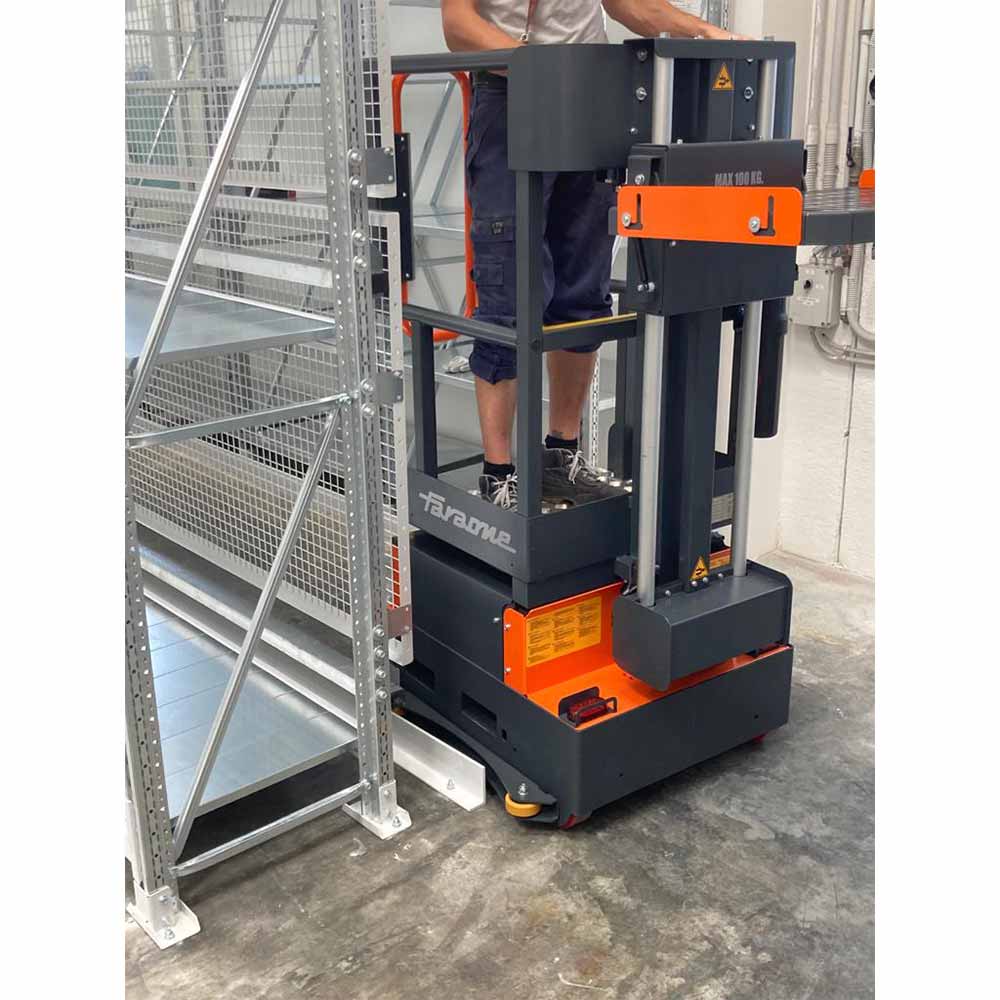

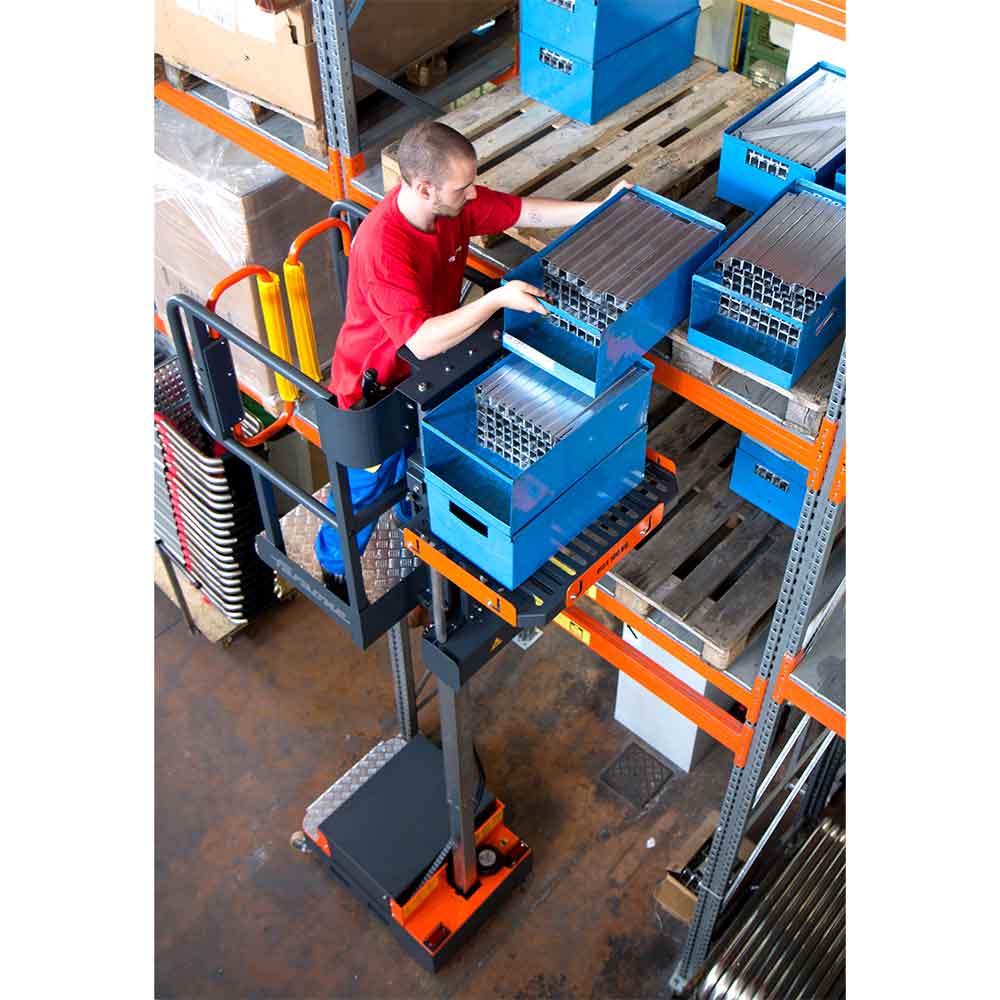

The Elevah E5 move picking is a compact, safe, and comfortable picker, suitable for high-paced stock picking applications. The impressive 5.15 metre working height is ideal to reach high level racks within warehouses and stores. With up to 0.70 m/s in operating speed, and intuitive joystick controls, this stock picker provides exceptional steering and manoeuvrability for the operator. The tight turning circle and compact width of 700 mm further increases access to tight workspaces, including in narrow aisles, standard doorways, and congested spaces.

Read More

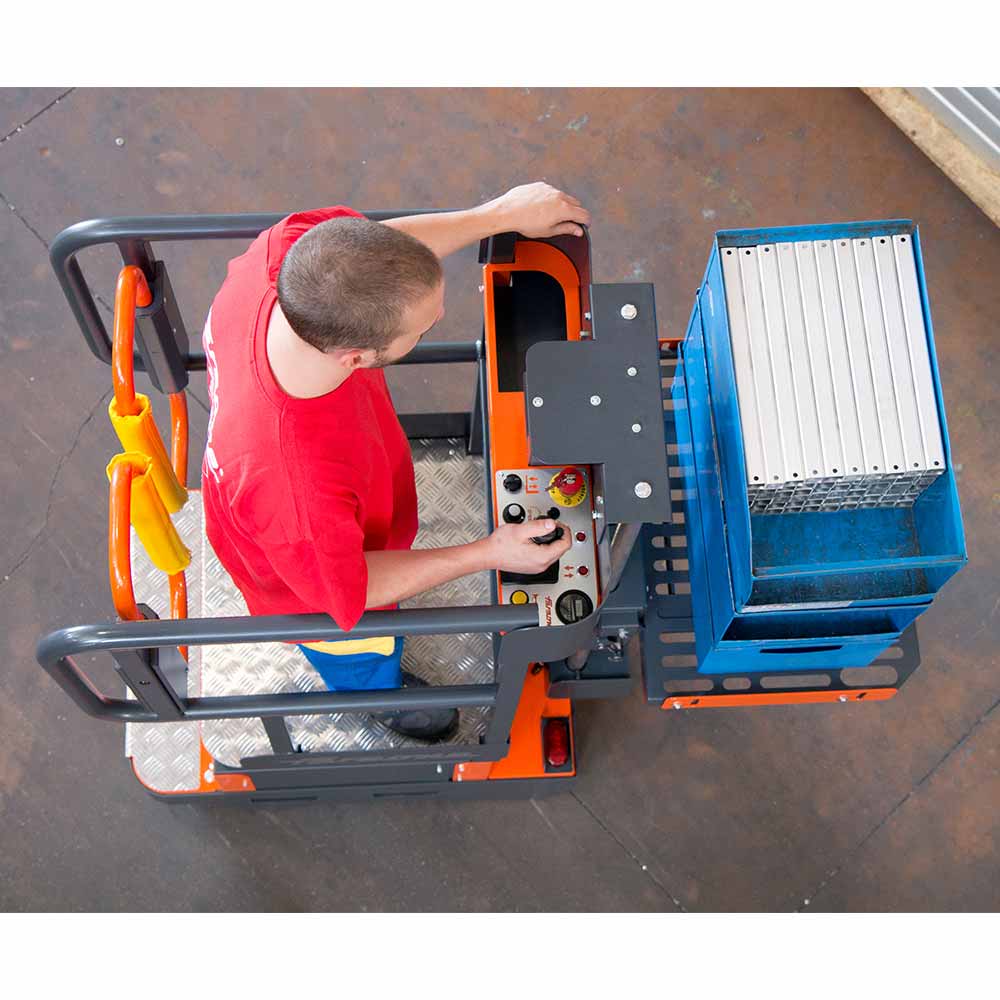

The large platform is practical and safe to access, thanks to it’s ergonomic side handles and spacious working area. The fixed picking platform has an impressive 100 kg safe load capacity that is foldable and can be positioned in 3 different heights. The Elevah E5 is suitable for a variety of industries including retail, installation applications, electrical and warehousing.

Read Less

  • Lift Capacity (kg): 200 kg
  • Power: Electric
  • purchase_options: Hire, New
  • Workplace: Both


Elevah Stock Picker E5 Move Picking

  E5 Move Picking
Max working height 5.15 m
Max lift capacity 200 kg
Workplace Internal and external
Closed machine height 1690 mm
Minimum platform height 289 mm
Maximum platform height 3150 mm
Base overall dimensions 1530/ 700 /1152 mm
Cage dimensions 685 x 600 mm
Machine weight 640 kg (with electrical
picking platform)
590 kg (with removable
picking platform)
Driving wheels size 186 x 60 mm
Idle rear wheels size 150 x 40 mm
Picking Platform
Adjustment Electric
Stroke 722 mm
Min. height from the ground 790 mm
Max. height from the ground 4102 mm
Dimensions 500 mm, 680 mm
Capacity 100 kg
Power supply 24V
Batteries 2 Trojan Lead-Acid 12V
105 Ah
Battery charger 110 V – 220 V
Maximum climbing ability 15%
Climbing ability at height 5,5%
Internal turning radius 0
Max. speed (rising – descending) 0.2 m / s
Maximum shifting speed
(on the ground – at height)
0.70 – 0.25 m/s
Maximum pressure for wheel at full load 2,9 kN
Work cycles (with fresh batteries) ** 100

*There is an intermediate step.

**Maximum pressure whereas the weight of the platform plus the

maximum load on the basket are completely distributed on one

side of the platform (totally asymmetric load).

***By work cycle we mean a self-propelled movement of 20 m with

a full ascent to and descent from the maximum height and with

adjustment of the loading platform.
